Atwood / HydroFlame Furnace Model 7916-II Tune-Up Kit

*NEITHER OF THESE KITS ARE APPLICABLE TO A 7916 or 7916-I, ONLY TO A 7916-II*

Please Note: Electrode 31380 (single sense) has become no longer available for this model and currently there is no replacement.

Tune-Up Kit:

Item#11 Dual Sense Electrode (link): 36998

Item#12 Dual Sense Electrode Gasket (link): 32172-OS (Replaced P# 32172 NLA)

Item#36 Limit Switch, 170° (link): 37021

Item#20 Sail Switch (link): 31377 (Replaced P# Link: 36680)

Item#41 Orifice (link): 31083 (Replaced P# Link: 31257)

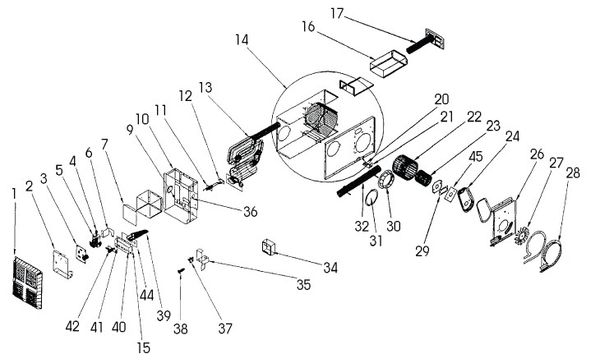

Atwood / HydroFlame Furnace Model 7916-II Parts List

Item#1 Door Assy. 37520 NLA

*Not Shown* Door Latch (link): 37912

Item#2 Ignition Module Mounting Bracket (link): 37951 (After S/N 1165562)

Item#3 OEM Ignition Module (link): 31501 (33488)

Item#3 After-Market Ignition Module (link): 31501MC (33488)

Item#5 Gas Valve (link): 31150 (Replaces P# Link: 38604)

*Not Shown* Replacement Coil (link): 31000 NLA

Item#11 Single Sense Electrode (link): 37517 NLA

Item#12 Single Sense Electrode Gasket (link): 37100MC (Replaced P# Link: 37100 NLA)

Item#11 Dual Sense Electrode (link): 36998

Item#12 Dual Sense Electrode Gasket (link): 32172-OS (Replaced P# Link: 32172 NLA)

*Not Shown* Ignitor Lead, 7 Inch (link): 34116

Item#15 Burner Plate Gasket (link): 35890 NLA

Item#16 & 17 Vent Kit, 4 Inch (link): 35955 NLA

Item#16 & 17 Vent Kit, 8 Inch (link): 35956 NLA

Item#16 & 17 Vent Kit, 12 Inch (link): 35957 NLA

Item#20 Sail Switch (link): 31377 (Replaced P# Link: 36680)

Item#22 Blower Wheel & Clamp Kit (link): 33286

Item#23 OEM Blower Motor (link): 31384 (Replaced P# Link: 31036)

Item#24 Motor Mount Assembly 35879 NLA

Item#27 Combustion Wheel Kit (link): 33124

Item#30 Duct Adapter, 4 Inch (link): 31474

*Not Shown* 4 Inch Flexible Heater Duct Hose (link): E4-25

*Not Shown* Duct Adapter, 2 Inch (link): 36688

*Not Shown* 2 Inch Flexible Heater Duct Hose (link): E2-25

Item#31 Duct Cover, 4 Inch (link): 31361

Item#32 Burner Air Tube (link): 35892 NLA

Item#34 Thermostat, Heat Only, Black (link): 32300

Item#34 Thermostat, Heat Only, Brown (link): 38452 NLA

Item#34 Thermostat, Heat Only, White (link): 38453

Item#36 Limit Switch, 170° (link): 37021

Item#36 Limit Switch, 170° (link): 37021MC

Item#38 Circuit Breaker (link): 30320 (Replaces P# 34007)

Item#39 Burner Assembly (link): 30268 (Replaced P# Link: 36043)

Item#39 Burner Assembly (link): 30268-OS (Replaced P# 36043-OS)

Item#41 Orifice (link): 31083 (Replaced P# Link: 31257)

*Not Shown* On-Off Switch (link): 31092 (Replaced P# Link: 36121)

*Not Shown* Wiring Harness Kit (link): 30230 NLA

_______________________________________________

Available Downloads:

Atwood Furnace Series 7916-II Users Manual

7916-II Technical Installation Manual

HydroFlame Furnace Exploded Views And Parts List
