• Venture Manufacturing Actuator Slide-Out 18:1 Motor 8910-81AH

    $439.95 $406.80

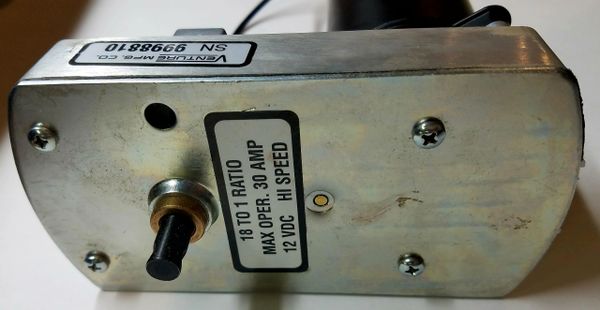

    Venture Manufacturing Actuator Slide-Out 18:1 High Speed Motor 8910-81AH

    IN-STOCK

    Part Number On Motor: 8532-18HT
    Voltage: 12VDC
    Maximum Amperage: 30 Amps
    Speed Rating: High Speed
    RPM: 9100 RPM
    H.P.: 1/2

    Please Note: The 18:1 motor assembly comes in three versions, this one 8910-81AH (part number on motor 8532-18HT) is the high speed version with wires coming out of the motor.
    • The second version 8910-81A (part number on motor 8530-08J) is the standard speed version that has the motor wires exiting the 12 volt motor.
    • The third version (link) 8910-81M has the wires exiting the gear housing assembly for low profile installation applications (part number on motor 8530-08MS) and is another standard speed version.
    • To order the replacement gear set (gear kit) for this motor assembly, please click onto this link: 191072
