Atwood Water Heater Model GCH6-4E Tune-Up Kit

$74.16 $60.73

Tune-Up Kit Options:

Tune-Up Kit / Burner Assembly Option:

Tune-up Kit / Ignition Board Options:

Tune-Up Kit / Wiring Harness Option:

Tune-Up Kit / Gas Valve / Valve Bracket Options:

Tune-Up Kit / Pressure Relief Valve Option:

Tune-Up Kit / Drain Plug Kit Option:

QTY

Atwood Water Heater Model GCH6-4E Tune-Up Kits

Tune-Up Kit #1 120VAC / Bolt-On Element Only No Longer Available

Item# 17 120VAC Rectangular Thermostat / ECO No Longer Available
Item#18 120V Element w/ Gasket 91580 (Bolt-On Element) No Longer Available

Tune-Up Kit #2 120VAC / Screw-In Element Kit Contents:

Item#24 120V Element w/ Gasket 92249 (Screw-In Element)
Item#25 120V Thermostat / ECO 91873 (Replaces Part Numbers 92942 & 92943)

Tune-Up Kit #3 Gas / Burner Contents:

Item#28 12VDC Thermostat / ECO Kit 91447
Item#33 Thermal Cutoff 93866 NLA → (Use New P# 94398)
Item#5 Electrode (New Style) 93868

Tune-Up Kit #4 = 120VAC / Element Only Kit #1 + Gas / Burner Kit #3 Contents: No Longer Available

Item#28 12VDC Thermostat / ECO Kit 91447
Item#33 Thermal Cutoff 93866 NLA → (Use New P# 94398)

Click The Down Arrow To View Complete Kit List

Item#18 120V Element w/ Gasket 91580 (Bolt-On Style) No Longer Available

Item#5 Electrode (New Style) 93868

Tune-Up Kit #5 = 120VAC / Element Kit #2 + Gas / Burner Kit #3 Contents:

Item#28 12VDC Thermostat / ECO Kit 91447
Item#33 Thermal Cutoff 93866 NLA → (Use New P# 94398)
Item#24 120V Element w/ Gasket 92249 (Screw-In Style)
Item#25 120V Thermostat / ECO 91873
Item#5 Electrode (New Style) 93868

IN-STOCK

________________________________________________________________________________

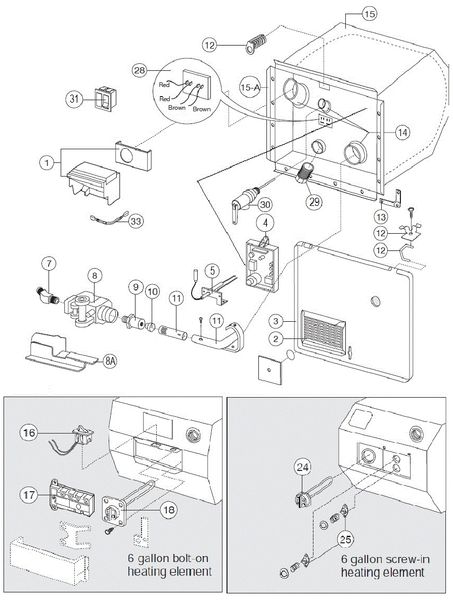

Atwood Water Heater Model GCH64E Exploded Parts View List

Item#1 Flue Box Assembly 90960

Item#2 Door Grill, New Style 92640 NLA

Item#3 Access Door, Colonial White 91514 NLA

Item#3 Access Door, Polar White 91502 (New P# 91386)

Item#3 Access Door, Black 91507

Item#4 Ignition Board, OEM Version 91367

Item#4 Ignition Board, After-Market Version 91367MC

Item#5 Electrode (New Style) 93868

Item#7 45° Elbow Fitting 91044 (Non-Stocked Item)

Item#8 Gas Valve Only 93844 NLA → (Use P# Link 92078 For This Application)

Item#8A Gas Valve Bracket 94787 NLA → (Use P# Link 92080)

Item#9 Orifice Holder 91563 (New P# 92065)

Item#10 Orifice 92743 (Replaces P# 92742)

Item#11 Main Burner 91638

Item#12 Door Hardware Kit 91858

Item#13 Corner Brackets 91928 (Non-Stocked Item)

Item#14 Ring & Gasket Kit 96010

Item#16 On / Off Switch 91092

Item#17 Rectangular Thermostat 9185 (obsolete / no longer available)

Item#18 120VAC Element w/ Gasket 91580 NLA (Bolt-On Style)

Item#24 120VAC Element w/ Gasket 92249 (Screw-In Style)

Item#25 120VAC Thermostat / ECO 91873

Item#28 12V Thermostat / ECO Kit 91447

Item#29 Drain Plug Kit 91857

Item#30 Pressure Relief Valve 91604

Item#31 12V White Switch 91859

Item#31 12V Black Switch 91959

Item#33 Thermal Cutoff 93866 NLA → (Use New P# 94398)

Not Shown 130° Thermostat 91470 (optional)

Not Shown Adjustable Thermostat 93105 (optional)

Not Shown Gas Line Grommet 92610

Not Shown Wiring Harness 93312 (New P# 92076)

Not Shown Ignition Board w/ Electrode Kit 91363

Not Shown Electrode 91606 (remote sense, only works with obsolete module 91420)
