Intellitec Battery Control Center 73-00635-000

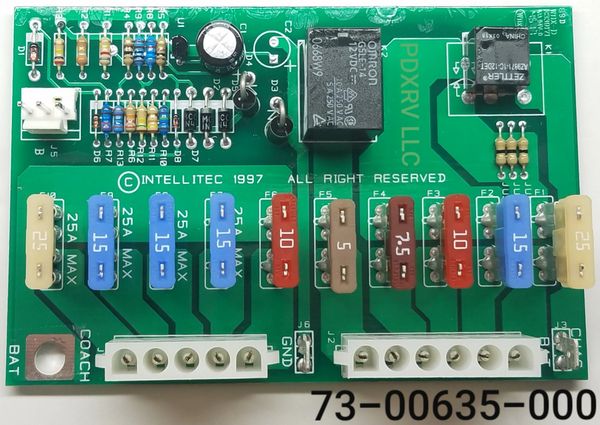

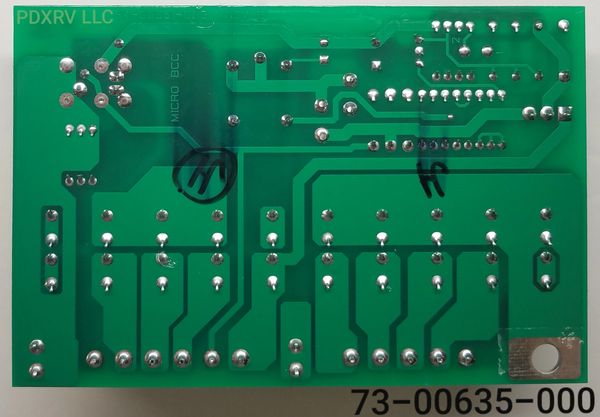

Intellitec Battery Control Center Replacement Printed Circuit Board 73-00635-000

IN-STOCK

Note: this printed circuit board assembly has three versions. The easiest way to tell the difference between the versions are essentially the fuse offerings. All three printed circuit boards use circuit board template 84-00551-EEE but are not interchangeable do to subtle discrete component differences. The components assembled to this template will determine which part number you should order.

Printed Circuit Board Version Options (links in blue if available):

• 73-00635-000 (this PCB is only used with complete assembly part number link: 00-00635-000)
• 73-00635-200 (this PCB is only used with complete assembly part number link: 00-00635-200)
• 73-00635-300 (this PCB is only used with complete assembly part number link: 00-00773-000)

_____________________________________________________

Harness Available For This BCC Circuit Board (links in blue if available):

J2 Plug And Harness Link

J4 Plug And Harness Link
