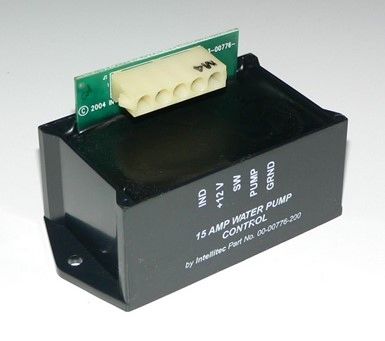

Intellitec Water Pump Control, Potted, 15 AMP, 00-00776-200

Intellitec Water Pump Control 00-00776-200

IN-STOCK

Specifications:

• Volts: 10.0 - 16.0 VDC
• Current Rating: 15 Amps
• Standby Current Draw: 2 milliamps
• Operating Temperature: -40F to +185F

Information: The MONOPLEX 15 Amp Water Pump Control is designed to operate as a “low side” remote switch in 12 volt DC systems. As it’s name implies, it was designed to control the domestic water pump. This unit will only work with loads greater than 5 amps but less than 15 amps. If you wish to learn more please click the blue data sheet link in available downloads section.

To purchase the repair harness for this controller, please click onto this link: 00-00776-200 Harness

Known Under / Supersedes / Replaces:

• 00-00776-000


Available Downloads:

• Intellitec 00-00776-200 - Data Sheet 53-00776-000
