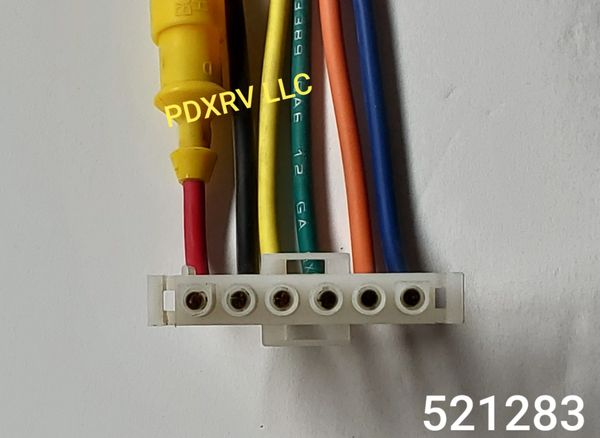

• Power Gear Slide Out Controller Harness 521283

    $0.00
    This item is out of stock

    Power Gear Slide Out Controller Harness, 521283, 6 Position In-Line Plug w/ Female Pins, Harness Length: 8 Inches, with fuse holder (replacement 20 Amp fuse P# 14-1124 is sold seperately, you can add this to your order by selecting this option from the option box above, this will not increase the shipping cost)

    No Longer Available

    Please Note: This is the old / original version of this harness, Old Harness Part# 521283 is not to be used when upgrading to slide out controller 14-1098 and others.

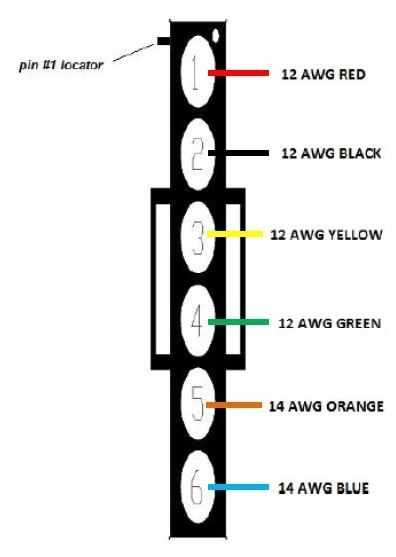

                 NEW HARNESS 14-1125        OLD HARNESS 521283

    • PIN 1   10 AWG RED                     12 AWG RED w/ Fuse Holder
    • PIN 2   10 AWG BLACK                  12 AWG BLACK
    • PIN 3   10 AWG RED                     12 AWG YELLOW
    • PIN 4   10 AWG BLACK                  12 AWG GREEN
    • PIN 5   14 AWG RED                     14 AWG ORANGE
    • PIN 6   14 AWG RED                     14 AWG BLUE
