Suburban Furnace Gas Valve 161070 Replacement Kit

Suburban Furnace Gas Valve 161070 Replacement Kits

Note: Scroll to the bottom of the page using the down arrow at the bottom page (  ) to view model / serial number applicability. Please remember to select the applicable orifice for your exact model.

*Gas Valve 161070 is obsolete and no longer available. The 161070 replacement kits has been developed so you may upgrade your rear or front gas model furnace with a new gas valve and other parts, see kit options & contents below for detail list of parts required and model / serial # requirements.

Kit #1 Contents (Manifold w/ 11 Mount Screws / Rear Gas Models):

• Gas Valve 161122
• Manifold Assembly 171743 (11 mount screws)
• Gas Pipe Inlet 171574 (rear gas models only)
• Burner Access Gasket 071263 (New P# 525031)
• Orifice, Metric Threads, Part Number Dependent On Furnace Model:
• SF-20 180305 IN-STOCK
• SF-25 180306 IN-STOCK
• SF-30 180307 IN-STOCK
• SF-35 180308 IN-STOCK
• SF-42 180309 IN-STOCK

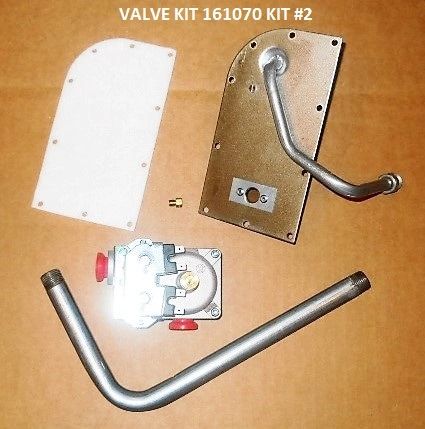

Kit #2 Contents (Manifold w/ 10 Mount Screws / Rear Gas Models):

• Gas Valve 161122
• Manifold Assembly 171596 (10 mount screws)
• Gas Pipe Inlet 171574 (rear gas models only)
• Burner Access Gasket 070811
• Orifice, Metric Threads, Part Number Dependent On Furnace Model:
• SF-20 180305 IN-STOCK
• SF-25 180306 IN-STOCK
• SF-30 180307 IN-STOCK
• SF-35 180308 IN-STOCK
• SF-42 180309 IN-STOCK

Kit #3 Contents (Manifold w/ 11 Mount Screws / Front Gas Models):

• Gas Valve 161122
• Manifold Assembly 171743 (11 mount screws)
• Gas Pipe Inlet 171576 (front gas models only)
• Burner Access Gasket 071263 (New P#525031)
• Orifice, Metric Threads, Part Number Dependent On Furnace Model:
• SF-20 180305 IN-STOCK
• SF-25 180306 IN-STOCK
• SF-30 180307 IN-STOCK
• SF-35 180308 IN-STOCK
• SF-42 180309 IN-STOCK

Kit #4 Contents (Manifold w/ 10 Mount Screws / Front Gas Models):

• Gas Valve 161122
• Manifold Assembly 171596 (10 mount screws)
• Gas Pipe Inlet 171576 (front gas models only)
• Burner Access Gasket 070811
• Orifice, Metric Threads, Part Number Dependent On Furnace Model:
• SF-20 180305 IN-STOCK
• SF-25 180306 IN-STOCK
• SF-30 180307 IN-STOCK
• SF-35 180308 IN-STOCK
• SF-42 180309 IN-STOCK

Kits # 1 & 2 Are Applicable to Models (Links In Blue):

• SF-20 Between S/N's 921403846 and 971303163
• SF-25 Between S/N's 921403846 and 971303163
• SF-30 Between S/N's 921403846 and 971303163
• SF-35 Between S/N's 921403846 and 971303163
• SF-42 Between S/N's 921403846 and 971303163

Kits # 3 & 4 Are Applicable to Models (Links In Blue):

• SF-20F Between S/N's 921403846 and 971303163
• SF-25F Between S/N's 921403846 and 971303163
• SF-30F Between S/N's 921403846 and 971303163
• SF-35F Between S/N's 921403846 and 971303163
• SF-42F Between S/N's 921403846 and 971303163

Please Note:

All Suburban Serial Numbers manufactured after January 1990, will be nine digits. The first two (2) digits signify the year of manufacture. The next set of digits, indicate the week of the year and the remaining digits are serial numbers.
For Example: Even though numerically higher, 912000060 is lower than serial number 014103973 due to the year of manufacture.
