Atwood / HydroFlame Furnace Model 8516-II Tune-Up Kit

*Please Note: Burner assembly 33842 is no longer available and has been removed from this kit. The parts that are still available are in blue.

Tune-Up Kit Includes (links in blue):

Item#24 Electrode Kit (link): 36999MC (Replaced P# Link: 36999 NLA)

Item#32 Limit Switch (link): 35132

Item#41 Sail Switch (link): 31377 (Replaced P# Link: 36680)
IN-STOCK

__________________________________________________________________

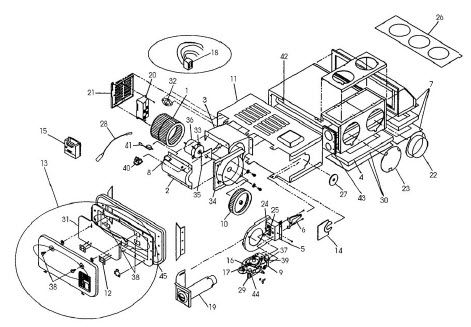

ATWOOD FURNACE 8516-II AVAILABLE PARTS LINKS

Item#1 Air Blower Wheel 33619 NLA or 33618 NLA

Item#2 Blower Housing Cover 33580 NLA

Item#3 Blower Housing Assembly 33639 NLA

Item#6 Burner Assembly 33842 NLA

Item#8 Circuit Breaker (link): 33780 (Replaces P# 31028)

Item#9 Valve Coil (link): 31000 NLA

Item#10 Combustion Air Wheel (link): 33128

Click The Down Arrow To View The Complete Parts List

Item#15 Analog Black Thermostat (link): 32300

Item#15 Analog Brown Thermostat (link): 38452 NLA

Item#15 Analog White Thermostat (link): 38453

Item#15 Digital White Thermostat (link): 38555 NLA

Item#17 Gas Valve 31155 NLA (Replaces P# 38607)

Item#18 Field Wiring Plug (link): 36290

Item#19 Draft Cap Assembly (link): 38141 NLA

Item#20 OEM Ignition Board (link): 31501 (33488)

Item#20 After-Market Ignition Module (link): 31501MC (33488)

Item#21 DSI Module Board Mounting Bracket (link): 34541

Item#22 Duct Adapter, 4 Inch (link): 31474

*Not Shown* 4 Inch Flexible Heater Duct Hose (link): E4-25

*Not Shown* Duct Adapter, 2 Inch (link): 36688

*Not Shown* 2 Inch Flexible Heater Duct Hose (link): E2-25

Item#23 Duct Cover, 4 Inch (link): 31361

Item#24 Electrode Kit (link): 33625 NLA (Replaced P# Link: 36999 NLA)

Item#24 Electrode Kit (link): 36999MC

Item#25 OEM Electrode Gasket (link): 32172 NLA

Item#25 After-Market Electrode Gasket (link): 32172-OS

Item#27 Gas Inlet Plug 33567 NLA

Item#28 Ignitor Lead (link): 34571 NLA

Item#32 Limit Switch (link): 35132

Item#33 OEM Motor Mounting Bracket 37360

Item#33 After-Market Motor Mounting Bracket 37360MC

Item#35 Motor Gasket (link): 37713 (Replaces P# 32841)

Item#36 OEM Motor (link): 30131 (Replaces P# 33219)

Item#37 Burner Orifice (link): 31083 (Replaced P# 31257)

Item#40 Klixon Time Delay Relay (link): 48000 (Replaces P# 31017)

Item#41 Sail Switch (link): 31377 (Replaced P# Link: 36680)

Item#42 Element Assembly Kit 37960 NLA

Item#43 OEM Exhaust Wall Gasket (link): 37956 NLA

Item#43 After-Market Exhaust Wall Gasket (link): 37956PDX

_____________________________________________

Available Downloads:

Atwood Furnace Series 8516-II Users Manual

Atwood 8516-II Mobile Service Training Manual 2015
