Atwood / HydroFlame Furnace Model 8525-III Tune-Up Kit

*Please Note: Burner assembly 33842 is no longer and has been removed from this kit. The parts in blue are still available.

Item#24 Electrode (link): 36999MC (Replaced P# Link: 36999 NLA)

Item#25 After-Market Electrode Gasket (link): 32172-OS

Item#32 Limit Switch, 190° (link): 37022

Item#41 Sail Switch (link): 31377 (Replaced P# Link: 36680)

IN-STOCK

__________________________________________

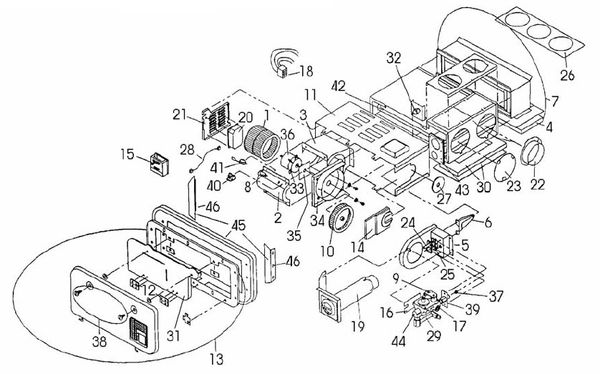

Atwood / Hydro Flame Furnace Model 8525-III Parts List

*Not Shown* Blower Motor / Combustion Wheel / Blower Wheel Kits (link): 37358 + 33128 + 33126

Item#1 Blower Wheel (link): 33126

Item#2 Blower Housing Cover 33580 NLA

Item#3 Blower Housing Assembly 36178 NLA

Item#6 Burner Assembly 33842 NLA

Click The Down Arrow To View The Complete Parts List

Item#8 Circuit Breaker (link): 33780 (Replaced P# 33751)

Item#9 Replacement Valve Coil (link): 31000 NLA

Item#10 Combustion Wheel (link): 33128

Item#14 Slide Plate (link): 37411

Item#15 Analog Black Thermostat (link): 32300

Item#15 Analog Brown Thermostat (link): 38452 NLA

Item#15 Analog White Thermostat (link): 38453

Item#17 Gas Valve (link): 31155 NLA (Before S/N 0654748)

Item#17 Gas Valve (link): 31150 (After S/N 0654747)

Item#18 Field Service Plug (link): 36290

*Not Shown* Wiring Service Kit (link): 30007 NLA

*Not Shown* Wiring Harness Kit (link): 30229

Item#19 Draft Cap Assembly (link): 38141 NLA (Replaced P# 37619)

Item#20 OEM Ignition Board (link): 31501 (33488)

Item#20 After-Market Ignition Module (link): 31501MC (33488)

Item#21 DSI Mount Bracket (link): 34541

Item#22 Duct Adapter, 4 Inch (link): 31474

*Not Shown* 4 Inch Flexible Heater Duct Hose (link): E4-25

*Not Shown* Duct Adapter, 2 Inch (link): 36688

*Not Shown* 2 Inch Flexible Heater Duct Hose (link): E2-25

Item#23 Duct Cover, 4 Inch (link): 31361

Item#24 Electrode Kit (link): 33625 NLA (Replaced P# Link: 36999 NLA)

Item#24 Electrode (link): 36999MC (Replaced P# Link: 36999 NLA)

Item#25 OEM Electrode Gasket (link): 32172 NLA

Item#25 After-Market Electrode Gasket (link): 32172-OS

Item#27 Gas Inlet Plug 33567 NLA (Before S/N 0654748)

Item#27 Gas Inlet Plug 37410 NLA (After S/N 0654747)

Item#28 Igniter Lead (link): 34571 NLA

Item#29 Manifold Inlet (link): 33565 NLA

Item#32 Limit Switch, 190° (link): 37022

Item#32 Limit Switch, 190° (link): 37022-OS

Item#33 OEM Motor Mount Bracket (link): 37360

Item#33 After-Market Motor Mount Bracket (link): 37360MC

Item#35 Motor Gasket (link): 37713 (Replaces P# 32841)

Item#36 OEM Blower Motor Only (link): 37352 NLA

Item#36 OEM Blower Motor Kit (link): 37358

Item#36 After-Market Blower Motor Kit (link): 37358MC

Item#37 Burner Orifice #54 (link): 31082 NLA (Replaced P# Link: 31267)

Item#40 Klixon Time Delay Relay (link): 48000 (Replaces P# 31017)

Item#41 Sail Switch (link): 31377 (Replaced P# Link: 36680)

Item#43 OEM Exhaust Wall Gasket (link): 37956 NLA (Replaced P# 32926)

Item#43 After-Market Exhaust Wall Gasket (link): 37956PDX (Replaced P# 32926)

*Not Shown* On-Off Switch (link): 31092 (Replaced P# Link: 36121)

___________________________________________
Available Downloads

Atwood HydroFlame 8525-III Service Manual 2004

Atwood HydroFlame 8525-III Service Manual 2007

Atwood 8525-III Mobile Service Training Manual 2007

Atwood 8525-III Mobile Service Training Manual 2015

Atwood 8525-III Time Delay, Sail Switch, And Limit Switch Important Info
