Atwood Furnace Model AFMD16111 Blower Motor And Wheel Kit
IN-STOCK
Kit Includes (links in blue):
Item#17 OEM Motor Kit (link): 30730
Item#31 OEM Combustion Wheel Kit (link):
33128
Item#32 OEM Blower Wheel Kit (link): 33126
______________________________________________________
Click The Down Arrow To View The Complete Exploded Parts View List

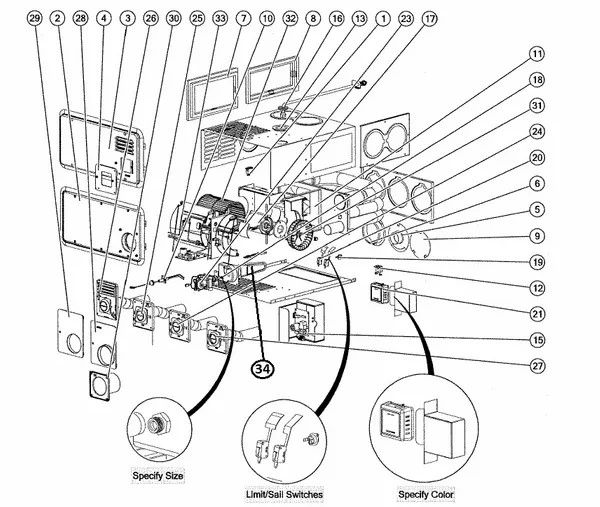

Atwood Furnace Model AFMD16111 Exploded Parts View Links
Item#1 7 Amp Circuit Breaker (link): 30322
Item#2 Arctic White Door Kit 31863
Item#2 Black Door Kit 31874
Item#3 Arctic White Door Kit 30539
Item#3 Black Door Kit 30637
Item#4 Vent Adapter Door Kit 31876
Item#5 2 Inch Adapter Duct (link): 36688
*Not Shown* 2 Inch Flexible Heater Duct Hose (link): E2-25
Item#6 4 Inch Adapter Duct(link): 31474
*Not Shown* 4 Inch Flexible Heater Duct Hose (link): E4-25
Item#7 Adapter Plate Side Discharge Kit 30205
Item#8 Bottom Plate Adapter Assembly Kit (link): 30261
Click The Down Arrow To View The Complete Parts List
Item#9 4 Inch Duct Cover Plate (link): 31361
Item#10 Electrode (link): 35100
Item#11 Heat Exchanger 35710
Item#12 Leg Casing Kit 31244
Item#13 Gas Line Grommet (link): 35706
Item#15 OEM Ignition Board (link): 31501
Item#15 After-Market Ignition Board (link): 31501MC *Not Shown* Manifold Inlet Kit 32349
Item#17 Motor Kit (link): 30730
Item#18 #56 Orifice (link): 31083
Item#19 OEM
Limit Switch (link): 31091
Item#19 After-Market Limit Switch (link): 31091MC
Item#20 OEM Sail Switch 31093 (Curved Blade)
Item#20 After-Market Sail Switch 31093-OS (Curved Blade)
Item#20 After-Market Sail Switch 31093MC (Curved Blade)
Item#20 Sail Switch (link): 33081 (New P# 36160) (Flat Blade)
Item#21 Heat Only Black Thermostat (link): 32300
Item#21 Heat Only Brown Thermostat (link): 38452 NLA
Item#21 Heat Only White Thermostat (link): 38453
Item#23 Gas Valve Top (link): 31098
Item#24 Door Vent Assembly Kit 31777
Item#31 Combustion Wheel Kit (link): 33128
Item#32 Blower Wheel Kit (link): 33126
Item#33 Wiring Harness (link): 31114 _____________________________________
