Coleman Heat Pump Model 47074A876 Capacitor Kit
IN-STOCK
Kit Contents (links in blue if available):
Item#19 Run Capacitor 1499-5721
Item#20 Start Device 9333-9021 NLA → (Use Part# Link 8333A9021)
Optional: Item#25 Pressure Relay 1460-1271
___________________________________________________

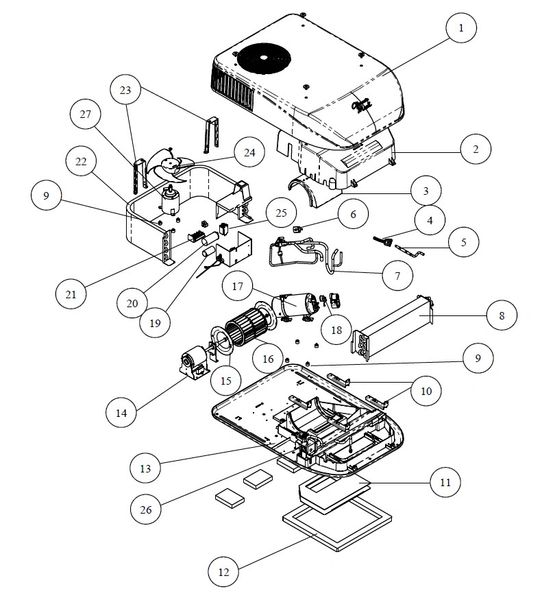

Heat Pump Model 47074A876 Parts List
Not Shown: Coleman Compressor Soft Start Upgrade Kit 1497-3601
Item#4 O.D. Coil Switch 1460-214
Item#9 Motor & Compressor Isolator Kit 472333171 NLA → (Use P# Link 47233A3171)
Item#13 Gasket Kit 47233-3301
Item#14 I.D. Motor 1468A3389 NLA → (Use P# Link 1468B3389)
Item#16 Blower Wheel 1472A1191
Click The Down Arrow To View Complete Parts List
Item#18 Overload 1450-0511
Item#19 Run Capacitor 1499-5721
Item#20 Start Device Kit 9333-9021 NLA → (Use P# Link 8333A9021)
Item#24 Fan Blade 1472D5041
Item#25 Pressure Relay 1460-1271
Item#26 Condensate Pump Assembly 47233-3091
Item#27 O.D. Motor 1468A3399
*Not Shown* Screw & Washer Kit 6792-5111
