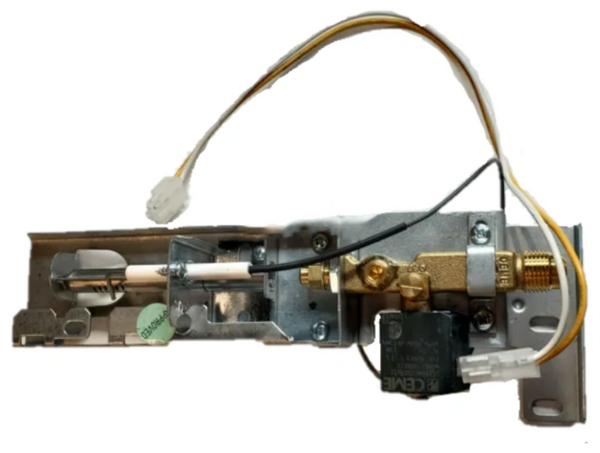

Dometic Refrigerator Complete Gas Valve Burner Assembly 3850730395

Dometic Refrigerator Complete Gas Valve Burner Assembly 3850730395

IN-STOCK

Note: This assembly is not completely applicable to older manual controls refrigerators and is only fully applicable to newer refrigerators that use auto ignition controls (gas valve 2932615012 only). The other parts of this assembly will be applicable for some older models. For example the electrode, burner and burner jet. Do not install this assembly on any model that does not have stamp #39 burner jet (P# 2007419159) installed per the model & product number parts list for your refrigerator.

Assembly Contents:

• Solenoid Valve 2932615012
• Screw 3858039027
• Burner Housing 2932603018
• (#39) Jet 2007419159
• Burner Assembly w/ Electrode 2930697061 and or 2930697079
• Electrode Only 2930379009 and or 2932781012
• Bracket 2932662014
• Washer 3858010071
• Nut 0140207044
• Washer 2007457001
• Ignition Cable 2931360073 (now part of 2932781012 electrode)
• Screw 3858005014
