Intellitec Slide Out Controller 00-00719-200 J1 Plug And Harness

Intellitec Slide Out Controller 00-00719-200 J1 Plug And Harness

IN-STOCK

Applicable To Module (link): 00-00719-200

Length: 8 Inch

Configuration: 8 Position Male In-Line Plug w/ Female Pins

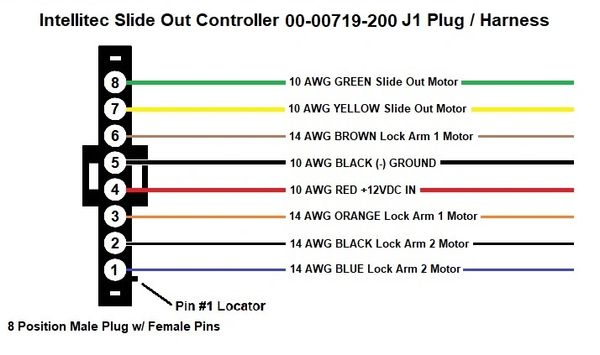

Plug Pin Out:

• Pin #1 / 14 Gauge Blue
• Pin #2 / 14 Gauge Black
• Pin #3 / 14 Gauge Orange
• Pin #4 / 10 Gauge Red
• Pin #5 / 10 Gauge Black
• Pin #6 / 14 Gauge Brown
• Pin #7 / 10 Gauge Yellow
• Pin #8 / 10 Gauge Green

Comes With 4 Each Each 10-12AWG & 4 Each 14-16AWG Butt Connectors

SKU: PDX148
