RV Custom Battery Disconnect Latching Relay RVC1002

$107.90 $94.30

RV Custom Products Battery Latching Disconnect Relay

IN-STOCK

Part Number: RVC1002

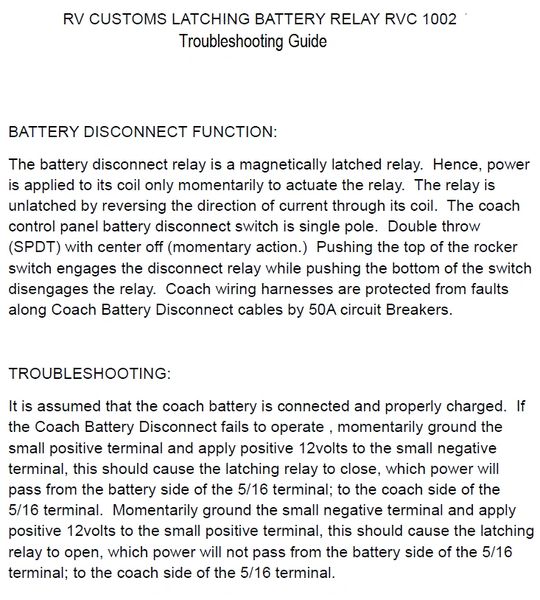

The two most common ways to wire the switch to the relay are noted in the picture gallery as well as the polarity logic behind there functionality.

NOTE: This relay can only be wired to a momentary (On) / Off / (On) momentary switch. If wired to a On / Off / On switch then the coil of the relay will over-heat and burn out. See below for the common switches that are used with this relay type (Links In Blue):

Momentary (On) / Off / (On) Momentary Switch S2-67C
Momentary (On) / Off / (On) Momentary Switch S4-15C
Momentary (On) / Off / (On) Momentary Switch S4-36C
Momentary (On) / Off / (On) Momentary Switch 13025
Momentary (On) / Off / (On) Momentary Switch 13015
Momentary (On) / Off / (On) Momentary Switch 13005
Momentary (On) / Off / (On) Momentary Switch VLD1-20A-12V-6P
Momentary (On) / Off / (On) Momentary Switch 12954X
Momentary (On) / Off / (On) Momentary Switch 12956
