• Atwood Furnace Model AFMD35131 Tune-Up Kit

    $36.69 $28.97

    Kit #1 Is Only Applicable To Serial Numbers 72489156 & Before

    Tune-Up Kit #1 Includes (individual part links in blue):

    Item #10 Electrode Assembly (link): 35100-OS
    Item #19 Limit Switch, 190° (link): 31091-OS
    Item #20 Sail Switch (link): 31094 NLA (New P# 31094-OS)(curved blade)
    IN-STOCK

    Kit #2 Is Only Applicable To Serial Numbers After 72489156

    Tune-Up Kit #2 Includes (individual part links in blue):

    Item #10 Electrode Assembly (link): 35100-OS
    Item #19 Limit Switch, 190° (link): 31091-OS
    Item #20 Sail Switch Kit (link): 33082-OS (New P# 36165-OS) (flat blade)

    IN-STOCK

    ______________________________________

    Click The Down Arrow To View The Complete Exploded Parts View List

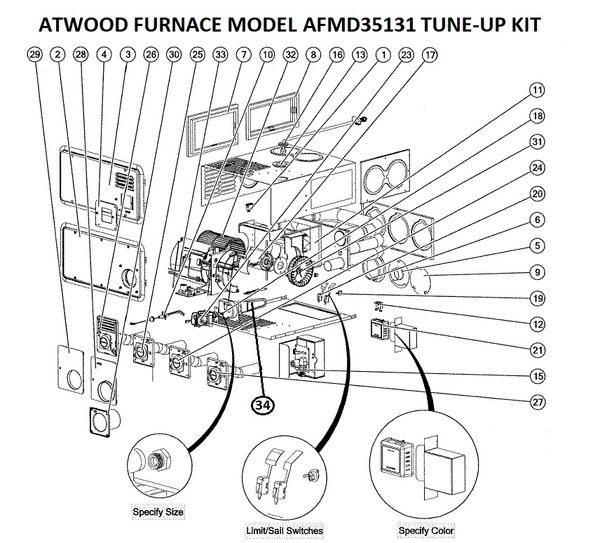

    Atwood Furnace Model AFMD35131 Exploded Parts View Links
    *Not Shown* Blower Motor And Wheel Kit (link): 30720/33128/33126
    Item#1 15 Amp Circuit Breaker (link): 30337
    Item#2 Arctic White Door Kit 31863
    Item#2 Black Door Kit 31874
    Item#3 Arctic White Door Kit 30539
    Item#3 Black Door Kit 30637
    Item#4 Vent Adapter Door Kit 31876
    Item#5 2 Inch Adapter Duct (link): 36688
    *Not Shown* 2 Inch Flexible Heater Duct Hose (link): E2-25
    Item#6 4 Inch Adapter Duct (link): 31474
    *Not Shown* 4 Inch Flexible Heater Duct Hose (link): E4-25
    Item#7 Adapter Plate Side Discharge Kit 30205
    Item#8 Bottom Plate Adapter Assembly Kit (link): 30261
    Item#9 4 Inch Duct Cover Plate (link): 31361
    Item#10 Electrode (link): 35100
    Item#10 Electrode (link): 35100-OS
    Item#10 Electrode (link): 35100MC
    Item#11 Heat Exchanger 35710
    Item#12 Leg Casing Kit 31244
    Item#13 Gas Line Grommet (link): 35706
    Item#15 OEM Ignition Board (link): 31501
    Item#15 After-Market Ignition Board (link): 35-535811-113
    Item#15 After-Market Ignition Board (link): 30151MC
    Item#15 Dinosaur Ignition Board (link): FAN50PP
    Item#16 Manifold Extension Kit 35712
    *Not Shown* Manifold Inlet Kit 32349
    Item#17 Blower Motor Kit (link): 30720
    Item#17 Blower Motor Kit (link): 30720-NBK 20897
    Item#18 #50 Orifice (link): 31078
    Item#19 Limit Switch (link): 31091
    Item#19 Limit Switch (link): 31091-OS
    Item#19 Limit Switch (link): 31091MC
    Item#20 OEM Curved Blade Sail Switch (link): 31094 NLA (Replaced By P# Link: 31094-OS)
    Item#20 Curved Blade Sail Switch (link): 31094-OS
    Item#20 Curved Blade Sail Switch (link): 31094MC
    Item#20 OEM Flat Blade Sail Switch Kit (link): 33082 (New P# 36165)
    Item#20 Flat Blade Sail Switch Kit (link): 33082-OS (New P# 36165-OS)
    Item#20 Flat Blade Sail Switch Only (link): 33063
    Item#21 Heat Only Black Thermostat (link): 32300
    Item#21 Heat Only Brown Thermostat (link): 38452 NLA
    Item#21 Heat Only White Thermostat (link): 38453
    Item#23 Gas Valve Top (link): 31098
    Item#24 Door Vent Kit 31722
    Item#31 Combustion Wheel Kit (link): 33128
    Item#32 Blower Wheel Kit (link): 33126
    Item#33 Wiring Harness (link): 31114
    Item#34 Burner Assembly (link): 30268
    Item#34 Burner Assembly (link): 30268-OS
    __________________________
    Available Downloads:

    Atwood AFMD35131 Technical Installation Manual

    Atwood AFMD35131 Mobile Service Training Manual 2015
