Atwood Furnace Model AFSD20131 Tune-Up Kit
$36.69
$28.97
Atwood Furnace Model AFSD20131 Tune-Up / Repair Kits
Note: Older AFSD20131 furnaces used the curved blade sail switch (31094), newer AFSD20131 furnaces used the flat style blade sail switch (33082). As there is not an accurate serial number break we suggest that you determine which sail switch is applicable to your furnace as this will determine which kit you will need to order.
Tune-Up Kit #1 Includes (links in blue):
Item #9 Electrode Assembly (link): 35100-OS
Item #18 Limit Switch, 190° (link): 31091-OS
IN-STOCK
Tune-Up Kit #2 Includes (links in blue):
Item #12 Electrode Assembly (link): 35100-OS
Item #28 Limit Switch, 190° (link): 31091-OS
Item #29 Sail Switch (link): 33082-OS (New P# 36165-OS) (flat blade)
IN-STOCK
___________________________________________
Click The Down Arrow To View Complete Parts List

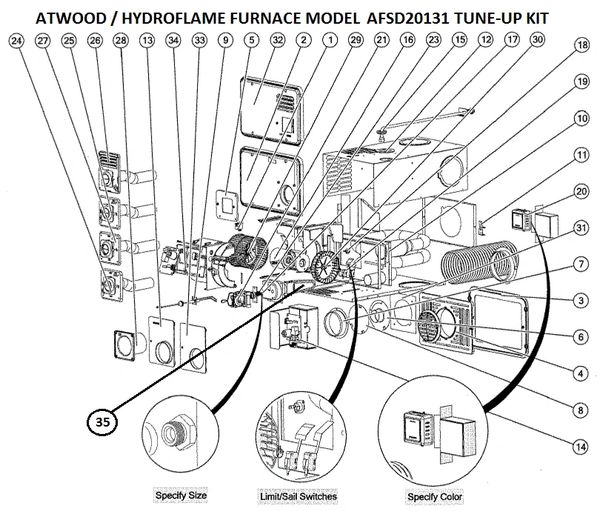

Atwood Furnace Model AFSD20131 Exploded Parts View Links
Item#1 7 Amp Circuit Breaker (link): 30322
Item#2 Black Door Assembly Kit (link): 32344 NLA
Item#4 Front Grill Kit (link): 30259
Item#5 Vent Adapter Door Kit 31876
Item#6 2 Inch Adapter Duct (link): 36688
*Not Shown* 2 Inch Flexible Heater Duct Hose (link): E2-25
Item#7 4 Inch Adapter Duct (link): 31474
*Not Shown* 4 Inch Flexible Heater Duct Hose (link): E4-25
Item#8 4 Inch Duct Cover Plate (link): 31361
Item#9 Electrode Kit (link): 35100
Item#9 Electrode Kit (link): 35100-OS
Item#9 Electrode Kit (link): 35100MC
Item#10 Heat Exchanger Kit 35711
Item#11 Casing Leg Kit 31244
Item#12 Gas Line Grommet (link): 35706
Item#14 OEM Ignition Board (link): 31501
Item#14 After-Market Ignition Board (link): 35-535811-113
Item#14 After-Market Ignition Board (link): 30151MC
Item#14 Dinosaur Ignition Board (link): FAN50PP
*Not Shown* Manifold Inlet 32349
Item#15 Manifold Extension Kit 35712
Item#16 Blower Motor Kit (link): 30760
Item#17 Stamp #1.25MM Orifice (link): 30789
Item#20 Heat Only Black Thermostat (link): 32300
Item#20 Heat Only Brown Thermostat (link): 38452 NLA
Item#20 Heat Only White Thermostat (link): 38453
Item#23 Gas Valve Top (link): 31098
Item#24 Door Vent Kit V4 31798
Item#32 Arctic White Door 30641
Item#32 Black Door Kit 31840
Item#34 Wiring Harness (link): 31114
Item#35 Burner Assembly (link): 30268
Item#35 Burner Assembly (link): 30268-OS
__________________________
Available Downloads:
Atwood AFSD20131 Mobile Service Training Manual 2015
Atwood AFSD20131 Furnace-Installation-Manual-for-Medium-Furnaces
