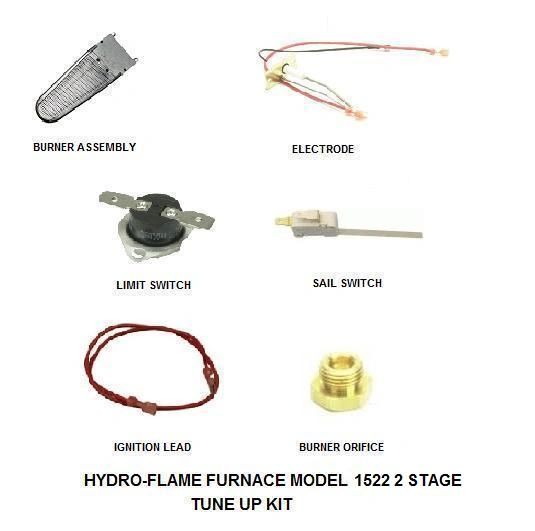

Atwood / HydroFlame Furnace Model 1522 2 STAGE Tune-Up Kit
Tune-Up Kit #1 Includes (individual parts links in blue):
Item#24 Electrode Assembly (link): 34570
*Not Shown* Electrode Gasket (link): 37100MC
Item#32 1/4" Spade Terminal Limit Switch, 190° (link): 37022-OS-.250
Item#41 Sail Switch (link): 31377 (Replaces P# Link: 36680)
IN-STOCK
Tune-Up Kit #2 Includes (individual parts links in blue):
Item#24 Electrode Assembly (link): 34570
*Not Shown* Electrode Gasket (link): 37100MC
Item#32 3/16" Spade Terminal Limit Switch, 190° (link): 37022-OS-.187
Item#41 Sail Switch (link): 31377 (Replaces P# Link: 36680)
IN-STOCK
_____________________________________________________
Atwood / Hydro Flame Furnace Model 1522 2 Stage Parts Links
*Not Shown* Blower Motor & Wheel Kit 38554+33128+33126
Item#1 Blower Wheel & Clamp (link): 33126
Click The Down Arrow To View The Complete Parts List
]Item#6 Burner Head Assembly (link): 30268
Item#6 Burner Head Assembly (link): 30268-OS
Item#8 On/Off Switch (link): 31092
Item#10 Combustion Air Wheel (link): 33128
Item#14 Slide Plate Assembly (link): 37411
Item#15 Thermostat (link): 38535 NLA
Item#16 Replacement Coil (link): 31000 NLA
Item#17 Gas Valve Assembly (link): 38602 NLA
Item#18 Field Plug Assembly (link): 37987
Item#19 Draft Shield Assembly (link): 38141 NLA
Item#20 Ignition Control Module Board (link): 34696
*Not Shown* Ignition Control Module Board Mount Bracket (link): 34541
Item#22 Duct Adapter, 4 Inch (link): 31474
*Not Shown* 4 Inch Flexible Heater Duct Hose (link): E4-25
*Not Shown* Duct Adapter, 2 Inch (link): 36688
*Not Shown* 2 Inch Flexible Heater Duct Hose (link): E2-25
Item#23 Duct Cover, 4 Inch (link): 31361
Item#24 Electrode (link): 34570
*Not Shown* OEM Electrode Gasket (link): 37100 NLA
*Not Shown* After-Market Electrode Gasket (link): 37100MC
Item#27 Gas Inlet Plug (link): 37410 NLA
Item#28 High Tension Lead (link): 37419
Item#32 Limit Switch, 3/16" Spade Terminal 37022
Item#32 Limit Switch, 3/16" Spade Terminal 37022-OS
Item#32 Limit Switch, 1/4" Spade Terminal 37022MC
Item#32 Limit Switch, 1/4" Spade Terminal 37022-OS
Item#35 Motor Gasket (link): 37600 NLA
Item#36 OEM Blower Motor (link): 38554
Item#37 Orifice, Stamp #54 (link): 31267 NLA
Item#41 Sail Switch (link): 31377 (Replaces P# 36680)
Item#43 OEM Exhaust Wall Gasket (link): 37956 NLA
Item#43 After-Market Exhaust Wall Gasket (link): 37956PDX
Item#48 Blower Housing Cover (link): 37605 NLA
Item#49 Blower Housing (link): 37606 NLA
Item#50 Motor Wall Assembly (link): 37801 NLA
Item#51 Switch / Breaker Combination (link) 33782
Item#51 Switch / Breaker Combination (link) 30337
Item#52 Motor Speed Control Board Mount Bracket (link): 34543 NLA
Item#53 Motor Speed Control Board (link): 34109
Item#55 Door Latch (link): 33847
*Not Shown* Wiring Kit (link): 30233 NLA
