Atwood / HydroFlame 1522 2 Stage Furnace Motor And Blower Wheel Kit
Atwood / HydroFlame 1522 2 Stage Furnace Motor And Blower Wheel Kit
IN-STOCK
Kit Contents (links in blue):
Item#36 OEM Blower Motor (link): 38554
Item#10 OEM Combustion Air Wheel (link): 33128
Item#1 OEM Blower Wheel (link): 33126
_____________________________________

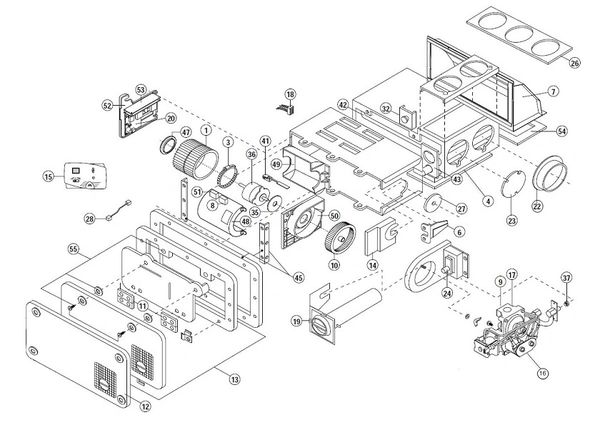

Atwood Furnace Model 1522 2 Stage Parts Links
Item#1 Blower Wheel & Clamp (link): 33126
Item#6 Burner Head Assembly (link): 30268
Item#6 Burner Head Assembly (link): 30268-OS
Item#8 On/Off Switch (link): 31092
Item#10 Combustion Air Wheel (link): 33128
Item#14 Slide Plate Assembly (link): 37411
Item#15 Thermostat (link): 38535 NLA
Click The Down Arrow To View The Complete Parts List
Item#16 Replacement Coil (link): 31000 NLA
Item#17 Gas Valve Assembly (link): 38602 NLA
Item#18 Field Plug Assembly (link): 37987
Item#19 Draft Shield Assembly (link): 38141 NLA
Item#20 Ignition Control Module Board (link): 34696
*Not Shown* Ignition Control Module Board Mount Bracket (link): 34541
Item#22 Duct Adapter, 4 Inch (link): 31474
*Not Shown* 4 Inch Flexible Heater Duct Hose (link): E4-25
*Not Shown* Duct Adapter, 2 Inch (link): 36688
*Not Shown* 2 Inch Flexible Heater Duct Hose (link): E2-25
Item#23 Duct Cover, 4 Inch (link): 31361
Item#24 Electrode (link): 34570
*Not Shown* OEM Electrode Gasket (link): 37100 NLA
*Not Shown* After-Market Electrode Gasket (link): 37100MC
Item#27 Gas Inlet Plug (link): 37410 NLA
Item#28 High Tension Lead (link): 37419
Item#32 Limit Switch, 3/16" Spade Terminal (link): 37022-OS-.187
Item#32 Limit Switch, 3/16" Spade Terminal (link): 37022
Item#32 Limit Switch, 1/4" Spade Terminal (link): 37022-OS-.250
Item#32 Limit Switch, 1/4" Spade Terminal (link): 37022MC
Item#35 Motor Gasket (link): 37600 NLA
Item#36 OEM Blower Motor (link): 38554
Item#37 Orifice, Stamp #54 (link): 31267 NLA
Item#41 Sail Switch (link): 31377 (Replaces P# 36680)
Item#43 OEM Exhaust Wall Gasket (link): 37956 NLA
Item#43 After-Market Exhaust Wall Gasket (link): 37956PDX
Item#48 Blower Housing Cover (link): 37605 NLA
Item#49 Blower Housing (link): 37606 NLA
Item#50 Motor Wall Assembly (link): 37801 NLA
Item#51 Switch / Breaker Combination (link) 33782
Item#51 Switch / Breaker Combination (link) 30337
Item#52 Motor Speed Control Board Mount Bracket (link): 34543 NLA
Item#53 Motor Speed Control Board (link): 34109
Item#55 Door Latch (link): 33847
*Not Shown* Wiring Kit (link): 30233 NLA
Available Downloads
Atwood Gas Furnace Series 8500-IV Model 2334 Two Stage Users Manual
2 stage Furnace Diagnostic Manual
Atwood Furnace 2 Stage Flash Fault Code
2 stage Thermostat Wiring Guide
