Links In Blue If Stocked, Black If Non-Stocked, Red If Obsolete / No Longer Available
PART NUMBER ITEM DESCRIPTION ITEM#
70920 Crank Handle (16 Inch) Item#1
70983 Crank Handle (23 Inch) Item#1
87891 Crank Handle (4K & 5K Direct) Not Shown
70905 Crank Handle (Old style) Not Shown
70238 Sheet Metal Screw Item#2
75521 Alignment Tube 21-3/4" Item#3
75529 Alignment Tube 17-1/2" Item#3
70542 Alignment Tube 9-1/2" Item#4
70557 Alignment Tube 7-1/2" Item#4
71132 Drive Gear Pin (STD Duty) Item#5
70229 Drive Gear Pin (HD & Super Duty) Item#5
75062 Driver D-Shaft (New STD Duty) Item#6
70105 Driver D-Shaft (Old STD Duty) Item#6
75061 Driver D-Shaft (New HD & Super Duty) Item#6
70757 Driver D-Shaft (Old HD & Super Duty) Item#6
87941 Driver D-Shaft (New 4K & 5K Direct) Item#6
71486 15-1/2" Driver Leg (New STD Duty) Item#7
71424 15-1/2" Driver Leg (Old STD Duty) Item#7
71488 15-1/2" Driver Leg (New HD Duty) Item#7
71417 15-1/2" Driver Leg (Old HD Duty) Item#7
71470 15-1/2" Driver Leg (New Super Duty) Item#7
71435 15-1/2" Driver Leg (Old Super Duty) Item#7
71528 15-1/2" Driver Leg (New 4K & 5K Direct) Item#7
70004 Drop Tube (STD & HD Duty) Item#8
70216 Drop Tube (Super Duty) Item#8
70269 Bridge Pin (STD, HD & Super Duty) Item#9 70008 Foot Pad (STD, HD & Super Duty) Item#10
70271 Foot Pad (4K & 5K Direct) Item#10
70325 Clevis Pin (STD, HD & Super Duty) Item#11 70215 Ball Detent Pin (Super Duty) Item#12
21693 Bushing (STD, HD & Super Duty) Item#14
75030 Bezel Gear Kit (STD Duty) Item#15&36
75029 Bezel Gear Kit (HD Duty, 4K & 5K Direct) Item#15&36
70754 Crank Shaft (STD, HD & Super Duty) Item#16
71320 Metal 3:1 Gear Box (STD, HD & Super Duty) Item#17 75054 Plastic 3:1 Gear Box (STD, HD & Super Duty) Item#17
70358 Motor Drive Pin (STD, HD & Super Duty) Item#18
70815 Screw Item#19
70816 Lock Nut Item#20
71436 Hub Cover (for 71320 Only) Item#21
75367 Motor (STD, HD & Super Duty) Item#22 70334 Motor (4K Direct Only) Item#22
75600 Motor (5K Direct Only) Item#22
70243 Screw Item#23
70244 Switch (Toggle Style, very old version jack) Item#24
70254 Switch (Rocker Style) Item#24
70259 Switch (Mini-Rocker Style) Item#24
70266 Switch (Ignition Protected Rocker Style) Item#24
87701 3 Position Rocker Switch Panel Item#25
86111 Lock Washer Item#27
70246 Motor Mount Bolt (STD, HD & Super Duty) Item#28
87942 Motor Mount Bolt (4K & 5K Direct) Item#29
70840 End Tube (STD, HD Duty) Item#30
70841 Cross Shaft Tube (STD, HD Duty) Item#31
70667 Machine Pin (STD Duty) Item#32
70666 Machine Pin (HD & Super Duty) Item#32
71139 Driven Shaft (STD Duty) Item#33
70817 Driven Shaft (HD Duty) Item#33
71425 Driven Leg (STD Duty) Item#34
71415 Driven Leg (HD Duty) Item#34
71145 Gear Case Cover (STD Duty) Item#35
71416 Gear Case Cover (HD & Super Duty) Item#35
88002 Gear Case Cover (4K & 5K Direct) Item#35
24527 Lock Nut Item#37
70284 Mounting Bracket Item#38
70329 Mounting Bracket Bolt Item#39
75360 Pull Pin (HD Duty) Item#40
70045 Pull Pin (Super Duty) Item#40
70220 Stop Label (STD, HD & Super Duty) Item#41
75059 Collar (STD, HD & Super Duty) Item#42
75045 Screw (STD, HD & Super Duty) Item#43
70180 3:1 Gear Box & Drive Shaft (STD Duty) Not Shown
70177 3:1 Gear Box & Drive Shaft (HD Duty) Not Shown
_________________________________________________________________________________________
Links In Blue If Stocked, Red If Obsolete / No Longer Available
PART NUMBER ITEM DESCRIPTION ITEM#
87571 Upper Cover 1
87060 Cover Screws 2
87055 Motor Ground Screw 3
86111 Lock Washer 4
75367 Motor 5
87573 Lower Cover 11
87035 Hole Plug 14
80237 Jack Housing & Ram 15
70229 Pin 17
87568 Ground Wire 18
87327 Strain Relief Bushing 21
87176 Mounting Bolt 24
80238 Round Foot Pad 27
87709 Clevis Pin 28
87077 Hex Drive Nut 29
87569 Fuse Wire 30
_________________________________________________________________________________________
Links In Blue If Stocked, Black If Non-Stocked, Red If Obsolete / No Longer Available
PART NUMBER ITEM DESCRIPTION ITEM#
87571 Upper Cover 1
87060 Cover Screws 2
87055 Motor Ground Screw 3
86111 Lock Washer 4
75367 Motor 5
87573 Lower Cover 11
87035 Hole Plug 14
80512 Jack Housing & Ram 15
70229 Pin 17
87568 Ground Wire 18
87327 Strain Relief Bushing 21
87176 Mounting Bolt 24
87021 Round Foot Pad 27
87709 Clevis Pin 28
87077 Hex Drive Nut 29
87569 Fuse Wire 30
_________________________________________________________________________________________

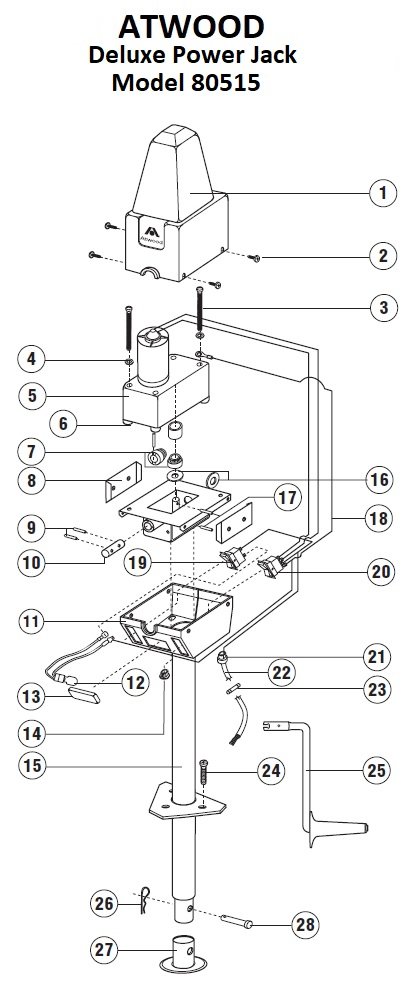

Links In Blue If Stocked, Black If Non-Stocked, Red If Obsolete / No Longer Available
PART NUMBER ITEM DESCRIPTION ITEM#
87595 Upper Cover 1
87057 Cover Screws 2
87942 Motor Ground Screw 3
86111 Lock Washer 4
75625 Motor 5
87916 Cover Tube 6
87108 Bevel Gear Kit 7
88002 Gear Housing Cover 8
70298 Drive Pin 9
87941 Drive Shaft 10
87597 Lower Cover 11
87585 Wire & Light Bulb 12
87591 Lens 13
87035 Hole Plug 14
87489 Jack Housing & Ram 15
87847 Washer Support 16
70667 Pin 17
87598 Ground Wire 18
87586 Light Switch 19
87327 Strain Relief Bushing 21
87599 Jumper Wire & Fuse 22
87176 Mounting Bolt 24
87891 Handle 25
87021 Round Foot Pad 27
87709 Clevis Pin 28
_________________________________________________________________________________________
Links In Blue If Stocked, Black If Non-Stocked, Red If Obsolete / No Longer Available
PART NUMBER ITEM DESCRIPTION ITEM#
87595 Upper Cover 1
87057 Cover Screws 2
87942 Motor Ground Screw 3
86111 Lock Washer 4
75625 Motor 5
87916 Cover Tube 6
87108 Bevel Gear Kit 7
88002 Gear Housing Cover 8
70298 Drive Pin 9
87941 Drive Shaft 10
87597 Lower Cover 11
87585 Wire & Light Bulb 12
87591 Lens 13
87035 Hole Plug 14
87500 Jack Housing & Ram 15
87847 Washer Support 16
70667 Pin 17
87598 Ground Wire 18
87586 Light Switch 19
87327 Strain Relief Bushing 21
87599 Jumper Wire & Fuse 22
87176 Mounting Bolt 24
87891 Handle 25
87021 Round Foot Pad 27
87709 Clevis Pin 28
_________________________________________________________________________________________
Links In Blue If Stocked, Black If Non-Stocked, Red If Obsolete / No Longer Available
PART NUMBER ITEM DESCRIPTION ITEM#
87595 Upper Cover 1
87057 Cover Screws 2
87942 Motor Ground Screw 3
86111 Lock Washer 4
75625 Motor 5
87916 Cover Tube 6
87108 Bevel Gear Kit 7
88002 Gear Housing Cover 8
70298 Drive Pin 9
87941 Drive Shaft 10
87597 Lower Cover 11
87585 Wire & Light Bulb 12
87591 Lens 13
87035 Hole Plug 14
87559 Jack Housing & Ram 15
87847 Washer Support 16
70667 Pin 17
87598 Ground Wire 18
87586 Light Switch 19
87327 Strain Relief Bushing 21
87599 Jumper Wire & Fuse 22
87176 Mounting Bolt 24
87891 Handle 25
87021 Round Foot Pad 27
87709 Clevis Pin 28
_________________________________________________________________________________________
Links In Blue (Link) If Available, Red If Obsolete
PART NUMBER ITEM DESCRIPTION ITEM#
10635 Jack Post Assembly 1
10017 Post Adapter 2
10011 Jack Post Adapter 3
80425 Drive Pin 4
10054 Bushing 5
80100 Set Screw 6
10048 Cover 7
10055 Bushing 9
10737 Torque Limiter 11
10049 Housing 12
80102 Cover Screw 13
10066 Bushing 14
12063 Motor Assembly 15
10062 Motor Sleeve 16
10691 Drive Pin Set Screw 17
10065 Extension Nut 18
10064 Switch 19
10063 Motor Cap 20
80504 Strain Relief Grommet 21
80101 Sleeve Cover Screw 22
10069 Metal Switch Cover 23
13131 Handle 24
_________________________________________________________________________________________
Links In Blue (Link) If Available, Red If Obsolete
PART NUMBER ITEM DESCRIPTION ITEM#
10635 Jack Post Assy. (13") 1
15218 Jack Post Assy. (18") 1
10017 Post Adapter 2
10011 Jack Post Adapter 3
80425 Drive Pin 4
14728 Cover 5
14660 Gasket 6
10055 Bushing 8
15131 Torque Limiter 10
617-1011 Washer 11
10054 Bushing 12
15132 Housing 13
80102 Cover Screw 14
611-2100 Lock Nut 15
81107 Set Screw 16
12063 Motor Assembly 17
10740 Motor Sleeve 18
80600 Hex Wrench 19
10065 Spacer 20
10064 Switch 21
10063 Motor Cap 22
80504 Strain Relief Grommet 23
80101 Sleeve Cover Screw 24
10069 Metal Switch Cover 25
13131 Handle 26
15130 Power Head Assembly 27
_________________________________________________________________________________________
Links In Blue If Available
PART NUMBER ITEM DESCRIPTION ITEM#
11631 Post Assembly 1
15017 Wire Guard 2
12752 Foot 3
600-0011 Bolt 4
13136 Cover 5
10055 Flange Bushing 7
81704 Toggle Switch 8
16161 Limit Switch Assembly 9
29810 Center Plate 10
80520 Bushing 11
15552 Gear 12
80426 Groove Pin 13
15027 Housing 14
608-6005 Set Screw (2 Each) 15
606-5012 Screw (2 Each) 17
_________________________________________________________________________________________
Links In Blue If Available
PART NUMBER ITEM DESCRIPTION ITEM#
30683 Lock indicator Label 1
30331 Cap Assembly 2
619-0003 Lock Washer 3
736-0010 Toggle Switch 4
736-0008 Toggle Switch 5
606-5001 Screw 6
16392 Cable Tie 7
617-0009 Thrust Washer 8
17419 Cover 9
28487 Torque Limiter 12
30710 White Base 13
608-0006 Set Screw 14
618-1002 Lock Washer 15
27257 Black Wire Assy. 16
17808 Wire Clamp 17
27262 Lens 18
27344 White Motor Sleeve 19
26236 Grommet 20
611-2100 Lock Nut 22
605-0012 Screw 23
27274 Motor Seal 24
27338 White Cover 25
80208 Spacer Washer 26
29880 Fuse Holder 27
30837 Cover Label 29
606-0010 Tek Screw 30
27313 18" Black Post Assembly 31
31367 24" Black Post Assembly 31
600-0011 Bolt 32
641-0009 Bushing 35
603-5011 Screw 36
16434 Hole Plug 37
621-0004 Dowel 38
27253 Lamp Wire Assy. 39
30313 Lens Gasket 40
634-0028 Retaining Ring 41
26097 Strap 42
21349 Base 43
28259 Jack Handle 44
________________________________________________________________________________________
Lippert / Venture Landing Gear Exploded Parts View
Links In Blue If Available
Lippert Part Number Venture Part Number Description Item#
119102 900-40R 29-1/2" IM Lead Leg 1
122533 900-40R OM 29-1/2" OM Lead Leg 1
191101 900-40L 29-1/2" IM Lead Leg 2
122532 900-40L OM 29-1/2" OM Lead Leg 2
276602 940-41 3:1 Reduction Gear Box (Current) 3
143780 940-40 3:1 Reduction Gear Box (Obsolete) 3
XXXXX 903-30 STD Drop Leg 4
XXXXX 903-31 HD Drop Leg 4
119225 915-01 HD Foot Plate 5
119226 930-40 Manual Crank Handle 6
142178 M-9000-PK Venture Standard Duty Motor 7
196308 M-9000HT Venture Heavy Duty Motor 7
141893 XXXXX Tuson Standard Duty Motor 7
XXXXX M-9000-PK/940-41 STD Duty Motor & 3:1 Gear Box Kit 3 & 7
XXXXX M-9000HT/940-41 Heavy Duty Motor & 3:1 Gear Box Kit 3 & 7
141892 9030-40 Harness For Single Motor N/S
XXXXX 9030-40 Harness For Dual Motor N/S
226023 9032-00 Extend / Retract Switch N/S
XXXXX 9033-00 Switch Mount Plate N/S
225298 916-00 3" x 3/8" Safety Snap Pin 8
XXXXX 917-00 2-5/8" x 3/8" Clevis Pin 9
XXXXX 918-00 Hair Pin 10
XXXXX 999-05 Complete Pin Kit 8, 9, 10
119113 AA-960 Bolt On Pull Pin N/S
156842 950-30 Cross Drive Kit 11
157516 943-00 Reduction Box Retainer 12
113511 953-10 Mounting Bracket 13
Lead (Motor Side) Landing Gear Leg Repair Kit 146059
Follow (Non-Motor Side) Landing Gear Leg Repair Kit 146060
_________________________________________________________________________________________
PART NUMBER ITEM DESCRIPTION ITEM#
LG-179013 29-1/2" Lead Leg Item#1
LG-179014 29-1/2" Follow Leg Item#2
LG-179015 3:1 Aluminum Gear Box Item#3
LG-119225 Landing Foot & Pin Item#4
LG-XS X-Shafts Telescoping Tubes Item#5
LG-119226 Manual Crank Handle Item#6
LG-142178 Motor Only Item#7
LG-145236 IP-Rated Switch Only Item#8
LG-217884 Motor & IP Rated Switch Item#'s 7 & 8
LG-210475 Round Foot Pad Item#9
LG-BRACKETS Brackets Item#10
LG-119113 Pull Pin Assemblies Item#11
_________________________________________________________________________________________
