SeaLand Toilets Exploded Parts Views


Parts Links In Blue / If In Black Then Part Is Special Order

Item#1 White Toilet Seat 385344088  Item#1 Bone Toilet Seat 385344089  Item#2 White China Bowl Kit 385310790
Item#2 Bone China Bowl Kit 385310791  Item#3 White Ring & Half Clamp Kit 385310025  Item#3 Bone Ring & Half Clamp Kit 385310048  Item#4 Teflon & Rubber Seal Kit 385316140  Item#5 White Base Kit 385310792
Item#5 Bone Base Kit 385310793  Item#6 Ball, Shaft & Cartridge Kit 385310681  Item#7 Floor Flange Seal 385343938
Item#8 3" MPT Floor Flange 385345889  Item#8 3" Socket Floor Flange 385345892
Item#9 Floor Bolt Mounting Kit 385310794  Item#10A White Pedal Kit 385310682 Item#10A Bone Pedal Kit 385310762 Item#11 Water Valve Kit 385314349  Item#12 Spring Cartridge Kit 385236096  Item#14 Bone Supply Hose 385340177
Item#15 Vacuum Breaker Kit 385310687  Item#15A Vacuum Breaker Kit With Spray 385319054
Item#15B White Hand Spray 385340683  Item#15C Vacuum Breaker (used with spray) 385230335
Item#16 White Vacuum Breaker Cover 385310795  Item#16 Bone Vacuum Breaker Cover 385310796
______________________________________________________________________________________________________

Parts Links In Blue / If In Black Then Part Is Special Order

Item#1 White Toilet Seat 385344088  Item#1 Bone Toilet Seat 385344089  Item#2 White China Bowl Kit 385310790
Item#2 Bone China Bowl Kit 385310791  Item#3 Bone Ring & Half Clamp Kit 385310048
Item#4 Teflon & Rubber Seal Kit 385316140  Item#5 White Base Kit 385310123  Item#5 Bone Base Kit 385310124
Item#12 Spring Cartridge Kit 385236096  Item#13 Flush Lever 385340425
Item#15B White Hand Spray 385340683  Item#15C Vacuum Breaker (used with spray) 385230335
______________________________________________________________________________________________________

Parts Links In Blue / If In Black Then Part Is Special Order / If In Red Obsolete & No Longer Available

Item#1 White Toilet Seat 385344436  Item#1 Bone Toilet Seat 385344437  Item#2 White China Bowl Kit 385310676
Item#2 Bone China Bowl Kit 385310781  Item#3 White Band & Half Clamp Kit 385310025
Item#3 Bone Band & Half Clamp Kit 385310048  Item#4 Seal Kit 385311462  Item#5 White Mounting Hardware 385310679
Item#5 Bone Mounting Hardware 385310785  Item#6 White Base Kit 385311711  Item#6 Bone Base Kit 385311712
Item#7 Base Ring Insert Kit 385311292  Item#8 Flush Ball / Brass Shaft Kit 385310954  Item#9 White Pedal Kit 385310682
Item#12 Bone Hose Supply 385340177  Item#12 White Hose Supply 385345377  Item#13 Vacuum Breaker Kit 385310687
Item#14 Discharge Kit 385311713  Item#15 White Vacuum Breaker Cover 385310696
Item#15 Bone Vacuum Breaker Cover 385310782
_______________________________________________________________________________________________________

Parts Links In Blue / If In Black Then Part Is Special Order / If In Red Obsolete & No Longer Available

Item#1 White Toilet Seat 385344436  Item#1 Bone Toilet Seat 385344437  Item#2 White China Bowl Kit 385310676
Item#2 Bone China Bowl Kit 385310781  Item#3 White Band & Half Clamp Kit 385310025
Item#3 Bone Band & Half Clamp Kit 385310048  Item#4 Seal Kit 385311462  Item#5 White Mounting Hardware 385310679
Item#5 Bone Mounting Hardware 385310785  Item#6 White Base Kit 385310685  Item#6 Bone Base Kit 385310783
Item#7 Base Ring Insert Kit 385311292  Item#8 Flush Ball / Brass Shaft Kit 385310954  Item#9 White Pedal Kit 385310682
Item#12 Bone Hose Supply 385340177  Item#12 White Hose Supply 385345377  Item#13 Vacuum Breaker Kit 385310687
Item#14 Discharge Kit 385310680  Item#15 White Vacuum Breaker Cover 385310696
Item#15 Bone Vacuum Breaker Cover 385310782
_______________________________________________________________________________________________________

Parts Links In Blue / If In Black Then Part Is Special Order / If In Red Obsolete & No Longer Available

Item#1 White Toilet Seat 385344436  Item#1 Bone Toilet Seat 385344437  Item#2 White China Bowl Kit 385310676
Item#2 Bone China Bowl Kit 385310781  Item#3 White Band & Half Clamp Kit 385310025
Item#3 Bone Band & Half Clamp Kit 385310048  Item#4 Seal Kit 385311462  Item#5 White Mounting Hardware 385310679
Item#5 Bone Mounting Hardware 385310785  Item#6 White Base Kit 385310686  Item#6 Bone Base Kit 385310784
Item#7 Base Ring Insert Kit 385311292  Item#8 Flush Ball / Brass Shaft Kit 385310954  Item#9 White Pedal Kit 385310682
Item#12 Bone Hose Supply 385340177  Item#12 White Hose Supply 385345377  Item#13 Vacuum Breaker Kit 385310687
Item#14 Discharge Kit 385310680  Item#15 White Vacuum Breaker Cover 385310696
Item#15 Bone Vacuum Breaker Cover 385310782
_______________________________________________________________________________________________________

Parts Links In Blue / If In Black Then Part Is Special Order / If In Red Obsolete & No Longer Available

Item#1 White Toilet Seat 385344436  Item#1 Bone Toilet Seat 385344437  Item#2 White China Bowl Kit 385310676
Item#2 Bone China Bowl Kit 385310781  Item#3 White Band & Half Clamp Kit 385310025
Item#3 Bone Band & Half Clamp Kit 385310048  Item#4 Seal Kit 385311462  Item#5 White Mounting Hardware 385310679
Item#5 Bone Mounting Hardware 385310785  Item#6 White Base Kit 385310975  Item#6 Bone Base Kit 385310976
Item#7 Base Ring Insert Kit 385311292  Item#8 Flush Ball / Brass Shaft Kit 385310954  Item#9 White Pedal Kit 385310682
Item#12 Bone Hose Supply 385340177  Item#12 White Hose Supply 385345377  Item#13 Vacuum Breaker Kit 385310687
Item#14 Discharge Kit 385310936  Item#15 White Vacuum Breaker Cover 385310696
Item#15 Bone Vacuum Breaker Cover 385310782
_______________________________________________________________________________________________________

Parts Links In Blue / If In Black Then Part Is Special Order / If In Red Obsolete & No Longer Available

Item#1 White Toilet Seat 385344436  Item#1 Bone Toilet Seat 385344437  Item#2 White China Bowl Kit 385310676
Item#2 Bone China Bowl Kit 385310781  Item#3 White Band & Half Clamp Kit 385310025
Item#3 Bone Band & Half Clamp Kit 385310048  Item#4 Seal Kit 385316140  Item#5 White Mounting Hardware 385310679
Item#5 Bone Mounting Hardware 385310785  Item#6 White Base Kit 385311446  Item#6 Bone Base Kit 385311447
Item#7 Base Ring Insert Kit 385311292  Item#8 Flush Ball / Brass Shaft Kit 385310954  Item#9 White Pedal Kit 385311448
Item#9 Bone Pedal Kit 385311449  Item#10 Water Valve Kit 385314349  Item#11 Spring Cartridge Kit 385310683
Item#12 Bone Hose Supply 385340177  Item#12 White Hose Supply 385345377  Item#13 Vacuum Breaker Kit 385310687
Item#14 Discharge Kit 385310680  Item#15 White Vacuum Breaker Cover 385310696
Item#15 Bone Vacuum Breaker Cover 385310782
_______________________________________________________________________________________________________

Parts Links In Blue / If In Black Then Part Is Special Order / If In Red Obsolete & No Longer Available

Item#1 White Toilet Seat 385344436  Item#1 Bone Toilet Seat 385344437  Item#2 White China Bowl Kit 385310676
Item#2 Bone China Bowl Kit 385310781  Item#3 White Band & Half Clamp Kit 385310025
Item#3 Bone Band & Half Clamp Kit 385310048  Item#4 Seal Kit 385316140  Item#5 White Mounting Hardware 385310679
Item#5 Bone Mounting Hardware 385310785  Item#6 White Base Kit 385311451  Item#6 Bone Base Kit 385311452
Item#7 Base Ring Insert Kit 385311292  Item#8 Flush Ball / Brass Shaft Kit 385310954  Item#9 White Pedal Kit 385311448
Item#9 Bone Pedal Kit 385311449  Item#10 Water Valve Kit 385314349  Item#11 Spring Cartridge Kit 385310683
Item#12 Bone Hose Supply 385340177  Item#12 White Hose Supply 385345377  Item#13 Vacuum Breaker Kit 385310687
Item#14 Discharge Kit 385310680  Item#15 White Vacuum Breaker Cover 385310696
Item#15 Bone Vacuum Breaker Cover 385310782
_______________________________________________________________________________________________________

Parts Links In Blue / If In Black Then Part Is Special Order / If In Red Obsolete & No Longer Available

Item#1 White Toilet Seat 385344436  Item#1 Bone Toilet Seat 385344437  Item#2 White China Bowl Kit 385310676
Item#2 Bone China Bowl Kit 385310781  Item#3 White Band & Half Clamp Kit 385310025
Item#3 Bone Band & Half Clamp Kit 385310048  Item#4 Seal Kit 385316140  Item#5 White Mounting Hardware 385310679
Item#5 Bone Mounting Hardware 385310785  Item#6 White Base Kit 385311453  Item#6 Bone Base Kit 385311454
Item#7 Base Ring Insert Kit 385311292  Item#8 Flush Ball / Brass Shaft Kit 385310954  Item#9 White Pedal Kit 385311448
Item#9 Bone Pedal Kit 385311449  Item#10 Water Valve Kit 385314349  Item#11 Spring Cartridge Kit 385310683
Item#12 Bone Hose Supply 385340177  Item#12 White Hose Supply 385345377  Item#13 Vacuum Breaker Kit 385310687
Item#14 Discharge Kit 385310936  Item#15 White Vacuum Breaker Cover 385310696
Item#15 Bone Vacuum Breaker Cover 385310782
_______________________________________________________________________________________________________

Parts Links In Blue / If In Black Then Part Is Special Order / If In Red Obsolete & No Longer Available

Item#1 White Toilet Seat 385344436  Item#2 White China Bowl 385310676  Item#3 White Half Clamp Kit 385310025
Item#4 Rubber Seal kit 385311462  Item#5 White Base Kit 385311158  Item#6 Mounting Kit 385310679
Item#7 Base Insert Ring 385311292  Item#8 Ball / Shaft / Cartridge Kit 385318162  Item#9 Discharge Kit 385310680
Item#10 Hand Flush Kit 385311204  Item#11 Spring Cartridge Kit 385236096  Item#12 Water Valve Kit 385314349
Item#13 White Supply Hose 385345377  Item#13 Bone Supply Hose 385340177 Item#14 Vacuum Breaker Kit 385310687
Item#15 Vacuum Breaker Cover 385310696
_______________________________________________________________________________________________________

Parts Links In Blue / If In Black Then Part Is Special Order / If In Red Obsolete & No Longer Available

Item#1 White Toilet Seat 385344088  Item#1 Bone Toilet Seat 385344089  Item#2 White China Bowl Kit 385310790
Item#2 Bone China Bowl Kit 385310791  Item#3 White Ring & Half Clamp Kit 385310025
Item#5 Mounting Hardware Kit 385311117  Item#6 White Base Kit 385311126  Item#6 Bone Base Kit 385311129
Item#12 White Supply Hose 385345377  Item#13 Vacuum Breaker Kit Without Sprayer 385316906
Item#19 White Shroud 385311126  Item#19 Bone Shroud 385311127  Item#20 White Pedal Cover 385311179
______________________________________________________________________________________________________

Parts Links In Blue / If In Black Then Part Is Special Order / If In Red Obsolete & No Longer Available

Item#1 White Toilet Seat 385311930  Item#1 Bone Toilet Seat 385311931  Item#2 Flush Ball Seal 385311658
Item#3 White Spray Nozzle Kit 385311932  Item#3 Bone Spray Nozzle Kit 385311933
Item#5 White Bolt Cap 385311654  Item#5 Bone Bolt Cap 385311655  Item#6 White Pedal Cover 385311656
Item#6 Bone Pedal Cover 385311657  Item#7 Water Valve Kit 385311641  Item#8 Bone Water Supply Hose 385340177
Item#8 White Water Supply Hose 385345377  Item#9 Vacuum Breaker Kit For Hand Spray 385230335
_______________________________________________________________________________________________________

Parts Links In Blue / If In Black Then Part Is Special Order / If In Red Obsolete & No Longer Available

Item#2 Vacuum Breaker Kit w/o Hand Sprayer 385316906  Item#3 Sealing Grommet 385311164
Item#6 Bone Supply Hose 385340177  Item#6 White Supply Hose 385345377  Item#7 White Toilet Seat 385311646
Item#7 Bone Toilet Seat 385311647  Item#8 White Seat Bracket Covers 385311648
Item#8 Bone Seat Bracket Covers 385311649 Item#9 White Seat Mounting Hardware 385311650
Item#11 Bone Mounting Hardware Cap 385311655  Item#12 White Pedal Cover Cap 385311656
Item#12 Bone Pedal Cover Cap 385311657  Item#13 Flush Ball Seal 385311658  Item#14 White Hand Sprayer 385311124
_______________________________________________________________________________________________________

Parts Links In Blue / If In Black Then Part Is Special Order / If In Red Obsolete & No Longer Available

Item#1 Toilet Seat Mounting Hardware 385311861  Item#2 White Toilet Seat 385311863
Item#2 Bone Toilet Seat 385311864  Item#3 Flush Ball Seal 385311658  Item#4 White Mounting Hardware / Seal 385311652
Item#4 Bone Mounting Hardware / Seal 385311653  Item#5 White Bolt Cap 385311654  Item#5 Bone Bolt Cap 385311655
Item#6 White Pedal Cover 385311656  Item#6 Bone Pedal Cover 385311657  Item#7 Water Valve Kit 385311641
Item#8 White Supply Hose 385345377  Item#8 Bone Supply Hose 385340177  Item#9 Sealing Grommet 385311164
_______________________________________________________________________________________________________

Parts Links In Blue / If In Black Then Part Is Special Order / If In Red Obsolete & No Longer Available

Item#1 White Toilet Seat 385343829 Item#1 Bone Toilet Seat 385343831  Item#1 Platinum Toilet Seat 385343897
Item#1 Ebony Toilet Seat 385343901  Item#2 White China Bowl 385310739  Item#2 Bone China Bowl 385310740
Item#2 Platinum China Bowl 385310741  Item#2 Ebony China Bowl 385310742  Item#3 Band & Half Clamp 385310048
Item#6 Bone Pedestal Cover Kit 385310109  Item#6 Platinum Pedestal Cover Kit 385310110
Item#6 Ebony Pedestal Cover Kit 385310600 Item#7 White Base Kit 385310132  Item#7 Bone Base Kit 385310133
Item#7 Platinum Base Kit 385310134  Item#7 Ebony Base Kit 385310607  Item#8 Funnel Kit 385318864
Item#10 White Pedal Cover 385310117  Item#10 Bone Pedal Cover 385310118  Item#10 Platinum Pedal Cover 385310119
Item#10 Ebony Pedal Cover 385310593  Item#11 Water Valve Kit 385314349  Item#12 Spring Cartridge Kit 385236096
Item#13 Pedal Cartridge Kit 385310579  Item#14 Bone Hose Supply 385340177  Item#14 White Hose Supply 385345377
Item#16 Chrome Sprayer w/ Bracket & Vacuum Breaker Kit 385319056
Item#16 Ebony Sprayer w/ Bracket & Vacuum Breaker Kit 385319057  Item#17 Ebony Hand Sprayer 385310873
Item#17 Chrome Hand Sprayer 385310809  Item#18 Ebony Hand Sprayer Bracket 385311125
Item#18 Chrome Hand Sprayer Bracket 385311131  Item#19 Floor Flange Seal Kit 385310063
_______________________________________________________________________________________________________

Parts Links In Blue / If In Black Then Part Is Special Order / If In Red Obsolete & No Longer Available

Item#1 White Toilet Seat 385343829 Item#1 Bone Toilet Seat 385343831  Item#1 Platinum Toilet Seat 385343897
Item#1 Ebony Toilet Seat 385343901  Item#2 White China Bowl 385310739  Item#2 Bone China Bowl 385310740
Item#2 Platinum China Bowl 385310741  Item#2 Ebony China Bowl 385310742  Item#3 Band & Half Clamp 385310048
Item#4 Seal Kit 385311462  Item#5 Mounting Hardware 385316323  Item#6 White Pedestal Cover Kit 385310111
Item#6 Bone Pedestal Cover Kit 385310112  Item#6 Platinum Pedestal Cover Kit 385310113
Item#6 Ebony Pedestal Cover Kit 385310173 Item#7 White Ball/Shaft & Cartridge Kit 385318162
Item#7 Ebony Ball/Shaft & Cartridge Kit 385310177  Item#8 Discharge Funnel Kit 385318741
Item#9 White Pedal Cover 385310114  Item#9 Bone Pedal Cover 385310115  Item#9 Platinum Pedal Cover 385310116
Item#9 Ebony Pedal Cover 385310175  Item#10 Water Valve Kit 385314349  Item#11 Spring Cartridge Kit 385236096
Item#12 Pedal Cartridge Kit 385310578  Item#13 Bone Hose Supply 385340177  Item#13 White Hose Supply 385345377
Item#14 1/2" Sealing Grommet 385311164 Item#15 Vacuum Breaker Kit (w/o sprayer version) 385316906
Item#16 Chrome Sprayer w/ Bracket & Vacuum Breaker Kit 385319056
Item#16 Ebony Sprayer w/ Bracket & Vacuum Breaker Kit 385319057  Item#17 Ebony Hand Sprayer 385310873
Item#17 Chrome Hand Sprayer 385310809  Item#18 Ebony Hand Sprayer Bracket 385311125
Item#18 Chrome Hand Sprayer Bracket 385311131  Item#19 White Base Kit Metal 385310126
Item#19 Bone Base Kit Metal 385310127  Item#19 Platinum Base Kit Metal 385310128
Item#19 Ebony Base Kit Metal 385310171
_______________________________________________________________________________________________________

Parts Links In Blue / If In Black Then Part Is Special Order / If In Red Obsolete & No Longer Available

Item#1 White Toilet Seat 385343829 Item#1 Bone Toilet Seat 385343831  Item#2 White China Bowl 385310739
Item#2 Bone China Bowl 385310740  Item#3 Band & Half Clamp 385310048  Item#4 Seal Kit 385311462
Item#5 Mounting Hardware 385310064  Item#6 White Pedestal Cover Kit 385310111
Item#6 Bone Pedestal Cover Kit 385310112  Item#7 White Ball/Shaft & Cartridge Kit 385318162
Item#8 Floor Flange Seal 385310063  Item#9 Discharge Funnel Kit 385318864
Item#16 1/2" Sealing Grommet 385311164  Item#17 White Base Kit Metal 385311772  Item#17 Bone Base Kit Metal 385311892
_____________________________________________________________________________________________________


Parts Links In Blue / If In Black Then Part Is Special Order

Item#1 White Toilet Seat 385341605  Item#1 Bone Toilet Seat 385340816  Item#1 Platinum Toilet Seat 385340817  Item#1 Ebony Toilet Seat 385341767  Item#1 Teal Toilet Seat 385341909  Item#2 White China Bowl 385310080
Item#2 Bone China Bowl 385310081  Item#2 Platinum China Bowl 385319033  Item#2 Ebony China Bowl 385310176
Item#2 Teal China Bowl 385310183  Item#3 Vacuum Breaker Kit 385318065
Item#3A Vacuum Breaker W/ Spray Kit 385319055  Item#3b White Hand Sprayer 385340683
Item#3b Ebony Hand Sprayer 385341770  Item#3c Vacuum Breaker (used with hand sprayer) 385230325
Item#7 White Ball, Shaft & Cartridge Kit 385318162  Item#7 Platinum Ball, Shaft & Cartridge Kit 385319034
Item#7 Ebony Ball, Shaft & Cartridge Kit 385310177  Item#7 Teal Ball, Shaft & Cartridge Kit 385310188
Item#9 Ebony Pedal Cover Kit 385310175  Item#9 Teal Pedal Cover Kit 385310193  Item#10 Water Valve Kit 385314349
Item#11 Flush Lever 385340873  Item#11 Flush Lever & Spring Cartridge Kit 385310578
Item#12 White Base Kit 385310120  Item#12 Bone Base Kit 385310121  Item#12 Platinum Base Kit 385310122
Item#12 Ebony Base Kit 385310169  Item#12 Teal Base Kit 385310198  Item#13 White Pedestal Cover 385310111
Item#13 Bone Pedestal Cover 385310112  Item#13 Platinum Pedestal Cover 385310113
Item#13 Ebony Pedestal Cover 385310173  Item#13 Teal Pedestal Cover 385310203  Item#14 Floor Flange Seal 385341549
Item#16 3" Spigot Floor Flange 385343765 Item#17 White Seat Hinge Hardware 385341706
Item#17 Bone Seat Hinge Hardware 385341707  Item#17 Platinum Seat Hinge Hardware 385341708
Item#17 Ebony Seat Hinge Hardware 385342232
_______________________________________________________________________________________________________

Parts Links In Blue / If In Black Then Part Is Special Order

Item#1 White Toilet Seat 385343829  Item#1 Bone Toilet Seat 385343831  Item#1 Platinum Toilet Seat 385343897
Item#1 Ebony Toilet Seat 385343901  Item#1 Teal Toilet Seat 385343899  Item#2 White China Bowl Kit 385310739
Item#2 Bone China Bowl Kit 385310740  Item#2 Platinum China Bowl Kit 385310741
Item#2 Ebony China Bowl Kit 385310742  Item#2 Teal China Bowl Kit 385310743  Item#3 Ring & Half Clamp Kit 385310048
Item#4 Teflon & Rubber Seal Kit 385316140  Item#5 Mounting Bolt Kit 385310064  Item#6 White Pedestal Cover 385310111
Item#6 Bone Pedestal Cover 385310112  Item#6 Platinum Pedestal Cover 385310113
Item#6 Ebony Pedestal Cover 385310173  Item#6 Teal Pedestal Cover 385310203  Item#7 Floor Flange Seal 385341549
Item#8 3" MPT Floor Flange 385345889  Item#8 3" Slip Floor Flange 385345892  Item#8 3" Spigot Floor Flange 385343765
Item#9 Teal Ball, Shaft & Cartridge Kit 385310188  Item#10 White Pedal Cover Kit 385310114
Item#10 Ebony Pedal Cover Kit 385310175  Item#10 Teal Pedal Cover Kit 385310193  Item#11 Water Valve Kit 385314349
Item#12 Spring Cartridge Assembly 385236096  Item#13 Flush Lever 385340873
Item#13 Flush Lever & Spring Cartridge Kit 385310578  Item#14 White Base Kit 385310120
Item#14 Bone Base Kit 385310121  Item#14 Platinum Base Kit 385310122  Item#14 Ebony Base Kit 385310169
Item#14 Teal Base Kit 385310198  Item#15 Bone Supply Hose 385340177  Item#16 Vacuum Breaker Kit 385316906
Item#17 Vacuum Breaker Kit With Hand Spray 385319054  Item#18 White Hand Sprayer 385340683
Item#18 Ebony Hand Sprayer 385341770
_______________________________________________________________________________________________________

Parts Links In Blue / If In Black Then Part Is Special Order

Item#1 White Toilet Seat 385341605  Item#1 Bone Toilet Seat 385340816  Item#1 Platinum Toilet Seat 385340817  Item#1 Ebony Toilet Seat 385341767  Item#1 Teal Toilet Seat 385341909  Item#2 White China Bowl 385310080  Item#2 Bone China Bowl 385310081  Item#2 Platinum China Bowl 385319033  Item#2 Ebony China Bowl 385310176  Item#2 Teal China Bowl 385310183  Item#3 Vacuum Breaker Kit 385318065  Item#3A Vacuum Breaker W/ Spray Kit 385319055  Item#3b White Hand Sprayer 385340683  Item#3b Ebony Hand Sprayer 385341770
Item#7 White Ball, Shaft & Cartridge Kit 385318162  Item#7 Platinum Ball, Shaft & Cartridge Kit 385319034
Item#7 Ebony Ball, Shaft & Cartridge Kit 385310177  Item#7 Teal Ball, Shaft & Cartridge Kit 385310188
Item#9 Bone Pedal Cover Kit 385310118  Item#9 Platinum Pedal Cover Kit 385310119
Item#9 Ebony Pedal Cover Kit 385310593  Item#9 Teal Pedal Cover Kit 385310596  Item#10 Water Valve Kit 385314349
Item#11 Flush Lever 385340825  Item#11 Flush Lever & Spring Cartridge Kit 385310579
Item#12 White Base Kit 385310123  Item#12 Bone Base Kit 385310124  Item#12 Platinum Base Kit 385310125
Item#12 Ebony Base Kit 385310588  Item#12 Teal Base Kit 385310620  Item#13 White Pedestal Cover 385310108
Item#13 Ebony Pedestal Cover 385310600  Item#13 Teal Pedestal Cover 385310603  Item#14 Floor Flange Seal 385341549
Item#16 3" Spigot Floor Flange 385343765  Item#17 White Seat Hinge Hardware 385341706
Item#17 Bone Seat Hinge Hardware 385341707  Item#17 Platinum Seat Hinge Hardware 385341708
Item#17 Ebony Seat Hinge Hardware 385342232
_______________________________________________________________________________________________________

Parts Links In Blue / If In Black Then Part Is Special Order

Item#1 White Toilet Seat 385343829  Item#1 Bone Toilet Seat 385343831  Item#1 Platinum Toilet Seat 385343897
Item#1 Ebony Toilet Seat 385343901  Item#1 Teal Toilet Seat 385343899  Item#2 White China Bowl Kit 385310739
Item#2 Bone China Bowl Kit 385310740  Item#2 Platinum China Bowl Kit 385310741
Item#2 Ebony China Bowl Kit 385310742  Item#2 Teal China Bowl Kit 385310743  Item#3 Ring & Half Clamp Kit 385310048
Item#6 Ebony Pedestal Cover 385310600  Item#6 Teal Pedestal Cover 385310603  Item#7 Floor Flange Seal 385341549
Item#8 3" MPT Floor Flange 385345889  Item#8 3" Slip Floor Flange 385345892  Item#8 3" Spigot Floor Flange 385343765
Item#9 Teal Ball, Shaft & Cartridge Kit 385310188  Item#10 White Pedal Cover Kit 385310117
Item#10 Bone Pedal Cover Kit 385310118  Item#10 Platinum Pedal Cover Kit 385310119
Item#10 Ebony Pedal Cover Kit 385310593  Item#10 Teal Pedal Cover Kit 385310596  Item#11 Water Valve Kit 385314349
Item#12 Spring Cartridge Assembly 385236096  Item#13 Flush Lever 385340825
Item#13 Flush Lever & Spring Cartridge Kit 385310744  Item#14 White Base Kit 385310123
Item#14 Bone Base Kit 385310124  Item#14 Platinum Base Kit 385310125  Item#14 Ebony Base Kit 385310588
Item#14 Teal Base Kit 385310620  Item#15 Bone Supply Hose 385340177  Item#16 Vacuum Breaker Kit 385316906
Item#17 Vacuum Breaker Kit With Hand Spray 385319054  Item#18 White Hand Sprayer 385340683
Item#18 Ebony Hand Sprayer 385341770
_______________________________________________________________________________________________________

Parts Links In Blue / If In Black Then Part Is Special Order / If In Red Obsolete & No Longer Available

Item#1 White Toilet Seat 385343829  Item#1 Bone Toilet Seat 385343831  Item#1 Platinum Toilet Seat 385343897
Item#1 Ebony Toilet Seat 385343901  Item#2 White China Bowl Kit 385310739
Item#2 Bone China Bowl Kit 385310740  Item#2 Platinum China Bowl Kit 385310741
Item#2 Ebony China Bowl Kit 385310742  Item#3 Ring & Half Clamp Kit 385310048
Item#4 Seal Kit 385311462  Item#5 Mounting Hardware 385316323  Item#6 White Pedestal Cover 385310674
Item#6 Bone Pedestal Cover 385310613  Item#6 Platinum Pedestal Cover 385310745
Item#6 Ebony Pedestal Cover 385310746  Item#7 White Base Kit 385310665  Item#7 Bone Base Kit 385310614
Item#7 Platinum Base Kit 385310748  Item#7 Ebony Base Kit 385310749
Item#9 Platinum Pedal Cover Kit 385310116  Item#9 Ebony Pedal Cover Kit 385310175  Item#10 Water Valve Kit 385314349
Item#13 Bone Supply Hose 385340177 Item#13 White Hose Supply 385345377  Item#14 Vacuum Breaker Kit 385316906
Item#15 Chrome Sprayer w/ Bracket & Vacuum Breaker Kit 385319056
Item#15 Ebony Sprayer w/ Bracket & Vacuum Breaker Kit 385319057 Item#16 White Hand Sprayer 385340683
Item#16 Ebony Hand Sprayer 385341770 Item#17 Chrome Hand Sprayer Bracket 385311131
Item#17 Ebony Hand Sprayer Bracket 385311125
_______________________________________________________________________________________________________

Parts Links In Blue / If In Black Then Part Is Special Order / If In Red Obsolete & No Longer Available

Item#1 White Toilet Seat 385343829  Item#1 Bone Toilet Seat 385343831  Item#1 Platinum Toilet Seat 385343897
Item#1 Ebony Toilet Seat 385343901  Item#2 White China Bowl Kit 385310739
Item#2 Bone China Bowl Kit 385310740  Item#2 Platinum China Bowl Kit 385310741
Item#2 Ebony China Bowl Kit 385310742  Item#3 Ring & Half Clamp Kit 385310048
Item#4 Seal Kit 385311462  Item#5 Mounting Hardware 385316323  Item#6 White Pedestal Cover 385310136
Item#6 Bone Pedestal Cover 385310137  Item#6 Platinum Pedestal Cover 385310138
Item#6 Ebony Pedestal Cover 385310174  Item#7 White Base Kit 385310129  Item#7 Bone Base Kit 385310130
Item#7 Platinum Base Kit 385310131  Item#7 Ebony Base Kit 385310172
Item#9 Platinum Pedal Cover Kit 385310116  Item#9 Ebony Pedal Cover Kit 385310175  Item#10 Water Valve Kit 385314349
Item#13 Bone Supply Hose 385340177 Item#13 White Hose Supply 385345377  Item#14 Vacuum Breaker Kit 385316906
Item#15 Chrome Sprayer w/ Bracket & Vacuum Breaker Kit 385319056
Item#15 Ebony Sprayer w/ Bracket & Vacuum Breaker Kit 385319057 Item#16 Chrome Hand Sprayer 385310809
Item#16 Ebony Hand Sprayer 385310873 Item#17 Chrome Hand Sprayer Bracket 385311131
Item#17 Ebony Hand Sprayer Bracket 385311125
_______________________________________________________________________________________________________

Parts Links In Blue / If In Black Then Part Is Special Order

Item#1 White Toilet Seat 385340590  Item#1 Bone Toilet Seat 385340591 Item#2 White China Bowl 385310032
Item#2 Bone China Bowl 385310033  Item#3 Vacuum Breaker Kit 385316906
Item#3A Vacuum Breaker W/ Spray Kit 385319054  Item#3b White Hand Sprayer 385340683
Item#11 Flush Lever 385340873  Item#11 Flush Lever & Spring Cartridge Kit 385310578
Item#12 White Base Kit 385310120  Item#12 Bone Base Kit 385310121  Item#13 White Pedestal Cover 385310111
Item#13 Bone Pedestal Cover 385310112  Item#14 Floor Flange Seal 385341549
Item#16 3" Spigot Floor Flange 385343765 Item#17 White Seat Hinge Hardware 385342130
Item#17 Bone Seat Hinge Hardware 385342131
______________________________________________________________________________________________________

Parts Links In Blue / If In Black Then Part Is Special Order

Item#1 White Toilet Seat 385340590  Item#1 Bone Toilet Seat 385340591 Item#2 White China Bowl 385310032
Item#2 Bone China Bowl 385310033  Item#3 Vacuum Breaker Kit 385316906
Item#3A Vacuum Breaker W/ Spray Kit 385319054  Item#3b White Hand Sprayer 385340683
Item#11 Flush Lever 385340825  Item#11 Flush Lever & Spring Cartridge Kit 385310579
Item#12 White Base Kit 385310123  Item#12 Bone Base Kit 385310124  Item#13 White Pedestal Cover 385310108
Item#16 3" Spigot Floor Flange 385343765 Item#17 White Seat Hinge Hardware 385342130
Item#17 Bone Seat Hinge Hardware 385342131
_______________________________________________________________________________________________________

Parts Links In Blue / If In Black Then Part Is Special Order

Item#1 Parchment Toilet Seat 385311520  Item#1 Platinum Toilet Seat 385311521  Item#2 White Hinge Pin 385310900
Item#2 Parchment Hinge Pin 385310899  Item#3 Parchment Water Cap 385310102
Item#3 Platinum Water Cap 385310103  Item#4 Parchment Bellows Assembly 385310104
Item#4 Platinum Bellows Assembly 385310105  Item#5 Parchment Fresh Water Tank 385230374
Item#5 Platinum Fresh Water Tank 385230375  Item#6 White Latch Assembly 385310066
Item#6 Parchment Latch Assembly 385310067  Item#7 White Slide Valve Assembly 385239064
Item#8 Bottom O-Ring 385346401  Item#9 Parchment Waste Tank Cap 385310050
Item#9 Platinum Waste Tank Cap 385310031  Item#10 Parchment Waste Water Tank 385311522
Item#10 Platinum Waste Water Tank 385311523  Item#10A Parchment 965MSD Tank 385230378
Item#10A Platinum 965MSD Tank 385230379  Item#12 2.5 Gal. Waste Tank Hold Down Brackets 385310018
Item#12 5.0 Gal. Waste Tank Hold Down Brackets 385310239
_______________________________________________________________________________________________________

Parts Links In Blue / If In Black Then Part Is Special Order

Item#1 Air Pump 385311528  Item#2 Toilet Seat 385311529  Item#3 Water Cap 385311530
Item#4 Bowl Assembly 385311531  item#5 Discharge Spout Cap 385311531
Item#6 Discharge Spout Assembly 385311533  Item#7 2.6 Gal. Tan Holding Tank Assembly 385311534
Item#7 2.6 Gal. Gray Holding Tank Assembly 385311535  Item#8 5.0 Gal. Tan Holding Tank Assembly 385311536
Item#8 5.0 Gal. Gray Holding Tank Assembly 385311537  Item#9 Tan Locking Handle 385311538
Item#9 Gray Locking Handle 385311539  Item#11 MSD Fitting 385320006  Item#12 MSD Fitting 385320007
_______________________________________________________________________________________________________

Parts Links In Blue / If In Black Then Part Is Special Order

Item#1 White Toilet Seat 385340590  Item#1 Bone Toilet Seat 385340591  Item#1 Ebony Toilet Seat 385342867
Item#2 White China Bowl 385310615  Item#2 Bone China Bowl 385310616
Item#2 Ebony China Bowl 385310585  Item#3 Vacuum Breaker Kit 385316906
Item#3a Vacuum Breaker W/ Spray Kit 385319054  Item#3b White Hand Sprayer 385340683
Item#3b Ebony Hand Sprayer 385341770  Item#3c Vacuum Breaker (used with hand sprayer) 385230335
Item#9 Bone Pedal Cover Kit 385310115  Item#9 Ebony Pedal Cover Kit 385310175
Item#10 Water Valve Kit 385314349  Item#11 Flush Lever 385340873
Item#11 Flush Lever & Spring Cartridge Kit 385310578  Item#12 White Base Kit 385310120
Item#12 Bone Base Kit 385310121  Item#12 Ebony Base Kit 385310169  Item#13 White Pedestal Cover 385310111
Item#13 Bone Pedestal Cover 385310112  Item#13 Ebony Pedestal Cover 385310173  Item#14 Floor Flange Seal 385341549
Item#16 3" Spigot Floor Flange 385343765 Item#17 White Seat Hinge Hardware 385342130
Item#17 Bone Seat Hinge Hardware 385342131
_______________________________________________________________________________________________________

Parts Links In Blue / If In Black Then Part Is Special Order

Item#1 White Toilet Seat 385340590  Item#1 Bone Toilet Seat 385340591  Item#1 Ebony Toilet Seat 385342867
Item#2 White China Bowl 385310615  Item#2 Bone China Bowl 385310616
Item#2 Ebony China Bowl 385310585  Item#3 Vacuum Breaker Kit 385316906
Item#3a Vacuum Breaker W/ Spray Kit 385319054  Item#3b White Hand Sprayer 385340683
Item#3b Ebony Hand Sprayer 385341770  Item#3c Vacuum Breaker (used with hand sprayer) 385230335
Item#8 Spring Cartridge Assembly 385236096  Item#9 White Pedal Cover Kit 385310123
Item#9 Bone Pedal Cover Kit 385310124  Item#9 Ebony Pedal Cover Kit 385310588
Item#10 Water Valve Kit 385314349  Item#11 Flush Lever 385340825
Item#11 Flush Lever & Spring Cartridge Kit 385310579  Item#12 White Base Kit 385310123
Item#12 Bone Base Kit 385310109  Item#12 Ebony Base Kit 385310588  Item#13 White Pedestal Cover 385310108
Item#13 Bone Pedestal Cover 385310112  Item#13 Ebony Pedestal Cover 385310600  Item#14 Floor Flange Seal 385341549
Item#16 3" Spigot Floor Flange 385343765 Item#17 White Seat Hinge Hardware 385342130
Item#17 Bone Seat Hinge Hardware 385342131
_______________________________________________________________________________________________________

Parts Links In Blue / If In Black Then Part Is Special Order / If In Red Obsolete & No Longer Available

Item#1 White Toilet Seat 385344022  Item#1 Bone Toilet Seat 385344023  Item#1 Platinum Toilet Seat 385344024
Item#1 Ebony Toilet Seat 385344025  Item#2 White China Bowl 385310811 Item#2 Bone China Bowl 385310812
Item#2 Platinum China Bowl 385310867  Item#2 Ebony China Bowl 385310869
Item#4 Base Seal Kit 385311009  Item#5 Shaft / Half Ball Kit 385310969  Item#5 Ebony Shaft / Half Ball Kit 385310971
Item#6 Water Valve (12VDC) 385310821  Item#6 Water Valve (24VDC) 385310845  Item#7 Base Assembly 385311052
Item#8 Complete Base Assembly (12VDC) 385311054  Item#8 Complete Base Assembly (24VDC) 385311055
Item#9 Rocker Switch Kit w/ Cable 385310965  Item#10 Flush Control Assembly 385310964
Item#11 White Access Cover 385310851  Item#11 Bone Access Cover 385310852
Item#11 Platinum Access Cover 385310864  Item#11 Ebony Access Cover 385310866
Item#12 Nickle Flush Handle Kit 385311141  Item#12 Chrome Flush Handle Kit 385310962
Item#12 Gold Flush Handle Kit 385310963  Item#13 L-Bolts & Hardware 385311011
Item#14 Motor & Hardware (12VDC) 385310822  Item#14 Motor & Hardware (24VDC) 385310846
Item#15 Adapter Plug-In 385311056  Item#16 Ring Base Insert 385311292
Item#17 Chrome China Bowl Mounting Kit 385310813  Item#17 Gold China Bowl Mounting Kit 385310814
Item#18 Flush Handle Washer 600344695  Item#19 Supply Hose 385311018  Item#20 Chrome Hand Sprayer 385310809
Item#20 Ebony Hand Sprayer 385310873  Item#21 Control Module Kit (12VDC) 385310888
Item#21 Control Module Kit (24VDC) 385310890  Item#22 Base O-Ring 385311294
Item#23 Chrome Sprayer Bracket 385311131  Item#23 Ebony Sprayer Bracket 385311125
Item#24 Base Drive Arm Assembly 385311417  Not Shown Access Cover Mounting Kit 385310854
_______________________________________________________________________________________________________

Parts Links In Blue / If In Black Then Part Is Special Order / If In Red Obsolete & No Longer Available

Item#1 White Toilet Seat 385344013  Item#1 Bone Toilet Seat 385344014  Item#1 Platinum Toilet Seat 385344018
Item#1 Ebony Toilet Seat 385344019  Item#2 White China Bowl 385310811 Item#2 Bone China Bowl 385310812
Item#2 Platinum China Bowl 385310867  Item#2 Ebony China Bowl 385310869
Item#4 Base Seal Kit 385311009  Item#5 Shaft / Half Ball Kit 385310969  Item#5 Ebony Shaft / Half Ball Kit 385310971
Item#6 Water Valve (12VDC) 385310821  Item#7 Base Assembly 385311051
Item#8 Complete Base Assembly (12VDC) 385311050    Item#9 White Access Cover 385310851
Item#9 Bone Access Cover 385310852  Item#9 Platinum Access Cover 385310864
Item#9 Ebony Access Cover 385310866  Item#10 L-Bolts & Hardware 385311011
Item#11 Motor & Hardware (12VDC) 385310822 Item#12 Floor Flange Adapter Kit 385311013
Item#13 Base Ring Insert Kit 385311292  Item#14 Bone Mounting Kit 385310785  Item#14 White Mounting Kit 385310679
Item#14 Chrome Mounting Kit 385310813  Item#14 Gold Mounting Kit 385310814  Item#15 Supply Hose 385311018
Item#16 Chrome Hand Sprayer Kit 385310809  Item#16 Ebony Hand Sprayer 385310873
Item#17 Control Board Kit (12VDC) 385310887  Item#18 Base O-Ring 385311294
Item#19 3" Spigot Floor Flange 385343765  Item#19 3" Hub Floor Flange 385345892
Item#19 3" MPT Floor Flange 385345889  Item#19 45° Swivel Floor Flange 307344653
Item#21 Base Drive Arm Assembly 385311417  Not Shown Access Cover Mounting Kit 385310854
_______________________________________________________________________________________________________

Parts Links In Blue / If In Black Then Part Is Special Order

Item#1 White Access Cover 385311001  Item#1 Bone Access Cover 385311002  Item#2 Flush Switch Assy. 385311003
Item#3 Flush Shaft Handle Kit 385311004  Item#4 White Toilet Seat 385311005  Item#4 Bone Toilet Seat 385311006
Item#5 White China Bowl 385311007  Item#5 Bone China Bowl 385311008  Item#6 Bowl Seal Kit 385311009
Item#7 Ring Base Insert 600343534  Item#8 Shaft / Half Ball Kit 385311010  Item#9 L-Bolt w/ Nuts & Washers 385311011
Item#10 Concerto Base 385311028  Item#11 O-Ring 600344609  Item#12 Floor Flange Adapter Kit 385311013
Item#13 3" Spigot Floor Flange 385343765  Item#13 3" Slip Floor Flange 385345892
Item#13 3" MPT Floor Flange 385345889  Item#13 Floor Flange 45° Swivel 385310961  Item#14 Flush Cable Kit 385311014
Item#15 Pulley Kit 385311015  Item#16 Base Bracket 385311016  Item#17 Return Spring Kit 385311017
Item#18 Supply Hose 385311018  Item#19 Water Valve Kit 385310821  Item#20 Chrome Mounting Hardware 385311020
Item#20 Gold Mounting Hardware 385311021  Item#20 Bone/White Mounting Hardware 385311022
Item#21 Chrome Flush Handle 385311023  Item#21 Gold Flush Handle 385311024 Item#21 Nickle Flush Handle 385311025
_______________________________________________________________________________________________________

Parts Links In Blue / If In Black Then Part Is Special Order / If In Red Obsolete & No Longer Available

Item#1 White Access Cover 385311001  Item#1 Bone Access Cover 385311002  Item#2 White Toilet Seat 385311005  Item#2 Bone Toilet Seat 385311006  Item#3 White China Bowl 385311007  Item#3 Bone China Bowl 385311008
Item#4 Bowl Seal Kit 385311009  Item#5 Base Ring Insert Kit 385311292  Item#6 Shaft / Half Ball Kit 385310969
Item#7 Water Valve Kit 385310821 Item#8 L-Bolt w/ Nuts & Washers 385311011  Item#9 Base Assembly 385311051
Item#10 O-Ring 385311294  Item#11 Mounting Kit 385310064  Item#12 3" Spigot Floor Flange 385343765
Item#12 Floor Flange 45° Swivel 385310961  Item#13 Motor & Hardware (12VDC) 385310822  Item#14 Supply Hose 385311018
Item#15 Complete Base Assembly 385311177 Item#16 White Mounting Kit 385310679  Item#16 Bone Mounting Kit 385310785
Item#17 Chrome Flush Handle 385310962  Item#17 Gold Flush Handle 385310963  Item#17 Nickle Flush Handle 385311141
Item#18 Vacuum Breaker Kit 385311026  Item#18 Vacuum Breaker Assembly (for spray handle models) 385311027
Item#19 Hand Sprayer 385310809  Item#20 Control Module (12VDC) 385311174
Item#21 Flush Control Assembly w/ Cable 385311175 Item#22 Rocker Switch w/ Cable 385311176
Item#23 Flush Handle Washer 600344695  Item#24 Floor Flange Adapter Kit 385311013
Not shown Access Cover Mounting kit 385310854 Not shown Base Drive Arm Kit 385311417
______________________________________________________________________________________________________

Parts Links In Blue / If In Black Then Part Is Special Order / If In Red Obsolete & No Longer Available

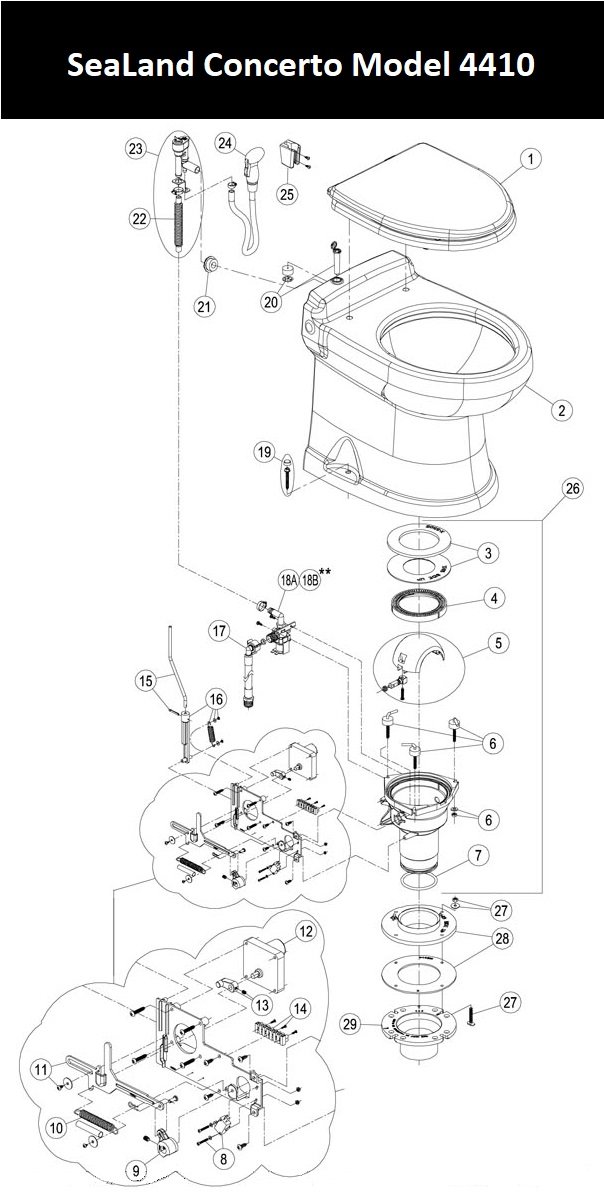

Item#1 White Toilet Seat 385311005  Item#1 Bone Toilet Seat 385311006  Item#1 Ebony Toilet Seat 385311597
Item#2 White Bowl Kit 385311730  Item#2 Bone Bowl Kit 385311731   Item#2 Ebony Bowl Kit 385311732
Item#6 L-Bolts & Hardware 385311011 Item#7 Base O-Ring 385311294 Item#8 Flush Switch Assy. 385311003
Item#9 Flush Ball Cam Replacement Kit 385311296  Item#10 Flush Mechanism Return Spring 385311297
Item#11 Flush Mechanism Linkage 385311303  Item#12 Motor Replacement Kit (12VDC) 385311300
Item#13 Motor Drive Arm Replacement Kit 385311299  Item#14 Wiring Terminal Block 385311298
Item#15 Manual Override Rod 385311736  Item#16 Manual Override Return Spring 385311301
Item#17 Water Supply Hose 385311547  Item#18A Water Valve Kit (12VDC) 385311545
Item#18B Retrofit Water Valve Kit (for 2009 & older model toilets) 385311709  Item#19 Bowl Mounting Hardware 385311022  Item#20 Chrome Flush Handle 385310962  Item#20 Gold Flush Handle 385310963  Item#20 Nickle Flush Handle 385311141  Item#21 Flush Handle Assembly 385311291  Item#22 Flush Handle Switch w/ Wiring 385311290
Item#23 1-1/2" Sealing Grommet 385311111  Item#24 Corrugated Bowl Supply Hose 385311869  Item#25
_______________________________________________________________________________________________________

Parts Links In Blue / If In Black Then Part Is Special Order / If In Red Obsolete & No Longer Available


_______________________________________________________________________________________________________
