Coleman Basement Heat Pump Model 46516-811 Capacitor Kit

Coleman Basement Heat Pump Model 46516811 Capacitor Kit

IN-STOCK

Kit Contents (links in blue if available):

Item# 35 Run Capacitor 1499-5721

Item# 38 Start Capacitor 1497-0891

Item# 40 Fan Capacitor 1499-5461

Option #1: Item# 27 Outdoor Blower Capacitor 1499-5461

Option #2: Item# 34 Compressor Relay 1460-1131

Option #3: Item# 41 Start Relay 1497-9051

__________________________________________________________

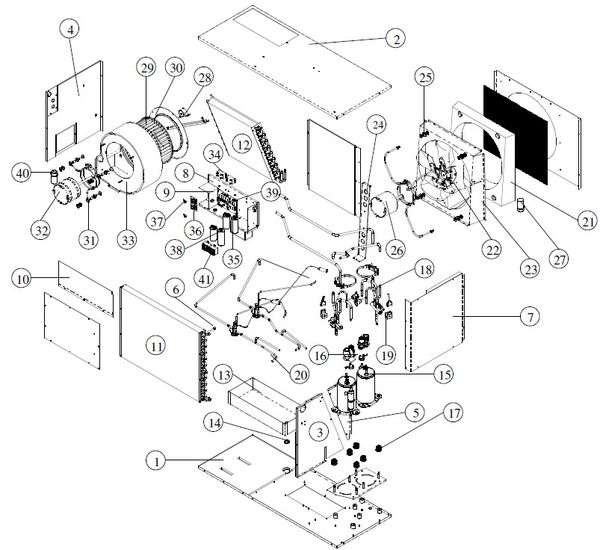

Coleman Basement Heat Pump Model 46516-811 Exploded Parts View Links

Click The Down Button To View Complete List

Item# 16 Overload 1450-0511

Item# 17 Compressor Mount Package 6759-3081

Item# 19 Reversing Valve Solenoid Coil 1460-1081 NLA → (Use P# Link 1460-1331)

Item# 22 Outdoor Blower Wheel 1472-5031

Item# 26 Outdoor Blower Motor 1468-3339

Item# 27 Outdoor Blower Capacitor 1499-5461

Item# 28 Pillow  Block Bearing 6536-3011

Item# 29 Indoor Blower Wheel 1472-1151

Item# 32 Indoor Blower Motor 1468A3219

Not Shown Freeze Switch 7330A3231

Item# 34 Compressor Relay 1460-1131

Item# 35 Run Capacitor 1499-5721

Item# 38 Start Capacitor 1497-0891

Item# 39 Printed Circuit Board Kit 6535C3209

Item# 40 Fan Capacitor 1499-5461

Item# 41 Start Relay 1497-9051

Not Shown High Voltage Terminal Board 6795-3151
