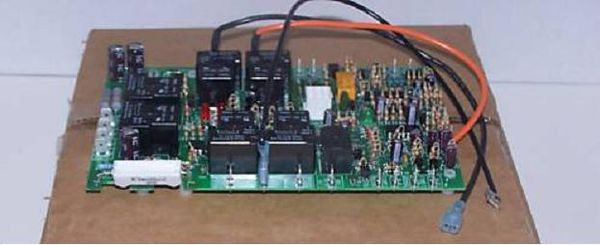

Coleman Printed Circuit Board Kit 6535C3209

$300.95 $274.44

IN STOCK

Note: Replaced Kit Part Numbers 6535B3209 & 6535C3201

Note: to order the P1 plug 9 position harness kit for this board, please click onto this link: PDX155

Kit Includes:

1 Each PCB 6535C320
2 Each Blue Wires 1318-12272 (shipped loose) 13"
1 Each Orange Wire 1318-12261 (shipped loose) 13"
1 Each Yellow Wire 1318-12250 (shipped loose) 13"
1 Each Black Wire 1318-16210 (usually pre-connected to "AC 1" on PCB) 16-1/2"
1 Each 8-3/8" x 16 Gauge Black Wire (usually pre-connected to "indoor blower high" on PCB)
1 Each 8-3/8" x 16 Gauge Black Wire (shipped loose)
1 Each 6-1/4" x 16 Gauge White Wire (usually pre-connected to "outdoor blower common" on PCB)
1 Each Orange Wire (usually pre-connected to "AC 2" on PCB) 16-1/2"
3 Each Wire Nuts (yellow)
1 Each Wiring Diagram 1976G304 (12-06)

Click The Down Arrow To View Complete Kits Contents & Model List

Applicable To Models w/ Product ID# (links in blue if available):

High Efficiency Two Ton Packaged Heat Pump w/ Product ID# 46515811 (46515-811)

High Efficiency Two Ton Packaged Heat Pump w/ Product ID# 46516811 (46516-811)

2-Ton High Efficiency, RV Central Heat Pump w/ Product ID# 6535

2-Ton High Efficiency, RV Central Heat Pump w/ Product ID# 6535671 (6535-671)

2-Ton High Efficiency, RV Central Heat Pump w/ Product ID# 6535A

2-Ton High Efficiency, RV Central Heat Pump w/ Product ID# 6535A671

2-Ton High Efficiency, RV Central Heat Pump w/ Product ID# 6535C871

2-Ton High Efficiency, RV Central Heat Pump w/ Product ID# 6535D771

2-Ton High Efficiency, RV Central Heat Pump w/ Product ID# 6535D871

2-Ton High Efficiency, RV Central Heat Pump w/ Product ID# 6537671 (6537-671)

2-Ton High Efficiency, RV Central Heat Pump w/ Product ID# 6537871 (6537-871)

2-Ton High Efficiency, RV Central Heat Pump w/ Product ID# 6537C671

2-Ton High Efficiency, RV Central Heat Pump w/ Product ID# 6538

2-Ton High Efficiency, RV Central Heat Pump w/ Product ID# 6538751 (6538-751)

2-Ton High Efficiency, RV Central Heat Pump w/ Product ID# 6538A

2-Ton High Efficiency, RV Central Heat Pump w/ Product ID# 6538B871
