Coleman Basement Heat Pump Model 6535C871 Capacitor Kit
IN-STOCK
Kit Contents (links in blue if available):
Item# 46 Fan Run Capacitor 1499-5671
Item# 49 Hard Start Capacitor Kit 8333A9021
Item# 52 Fan Capacitor 1499-5461
Option #1: Item# 34 Outdoor Blower Capacitor 1499-5631
Option #2: Item# 45 Compressor Relay 1460-1131
__________________________________________________________

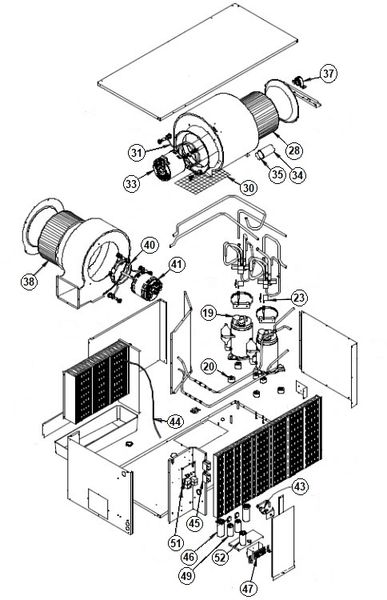

Coleman Basement Heat Pump Model 6535C871 Exploded Parts View Links
Click The Down Button To View Complete List
Item# 19 Overload 1450-0081
Item# 20 Compressor Mount Package 6759-3081
Item# 23 Reversing Valve Solenoid Coil 1460-1081 NLA → (Use P# Link 1460-1331)
Item# 28 Outdoor Blower Wheel 1472-1161
Item# 33 Outdoor Blower Motor 1468A3029
Item# 34 Outdoor Blower Capacitor 1499-5631
Item# 37 Pillow Block Bearing 6536-3011
Item# 38 Indoor Blower Wheel 1472-1151
Item# 41 Indoor Blower Motor 1468A3219
Item# 44 Freeze Switch 7330A3231
Item# 45 Compressor Relay 1460-1131
Item# 46 Fan Run Capacitor 1499-5671
Item# 49 Hard Start Capacitor Kit 8333A9021
Item# 51 Printed Circuit Board Kit (6535B3201 NLA) → (6535B3209 NLA) → (Use P# Link 6535C3209)
Item# 52 Fan Capacitor 1499-5461
Not Shown High Voltage Terminal Board 6795-3151
