Coleman Basement Heat Pump Model 6535A671 Capacitor Kit
Coleman Basement Heat Pump Model 6535A671 Capacitor Kit
IN-STOCK
Kit Contents (links in blue if available):
Item# 42 Run Capacitor 1499-5731
Item# 45 Hard Start Capacitor Kit 8333A9021
Item# 48 Fan Capacitor 1499-5461
Option #1: Item# 31 Outdoor Blower Capacitor 1499-5631
Option #2: Item# 41 Compressor Relay 1460-1131
__________________________________________________________

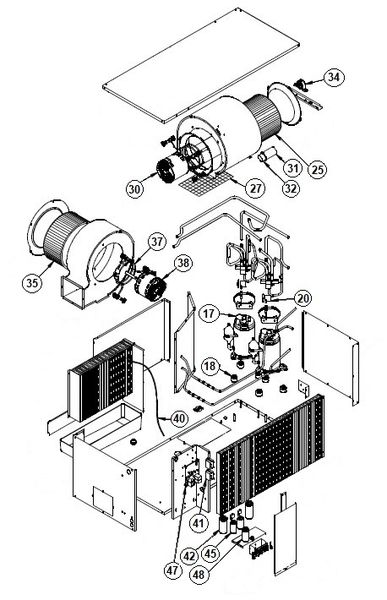

Coleman Basement Heat Pump Model 6535A671 Exploded Parts View Links
Click The Down Button To View Complete List
Item# 17 Overload 1450-0081
Item# 18 Compressor Mount Package 6759-3081
Item# 20 Reversing Valve Solenoid Coil 1460-1081 NLA → (Use P# Link 1460-1331)
Item# 25 Outdoor Blower Wheel 1472-1161
Item# 30 Outdoor Blower Motor 1468A3029
Item# 31 Outdoor Blower Capacitor 1499-5631
Item# 34 Pillow Block Bearing 6536-3011
Item# 35 Indoor Blower Wheel 1472-1151
Item# 38 Indoor Blower Motor 1468A3219
Item# 40 Freeze Switch 7330A3231
Item# 41 Compressor Relay 1460-1131
Item# 42 Run Capacitor 1499-5731
Item# 45 Hard Start Capacitor Kit 8333A9021
Item# 47 Printed Circuit Board Kit 6535C3209
Item# 48 Fan Capacitor 1499-5461
Not Shown High Voltage Terminal Board 6795-3151
