• Coleman Basement Heat Pump Model 6535A Capacitor Kit

    $142.47 $107.75

    Coleman Basement Heat Pump Model 6535A Capacitor Kit

    IN-STOCK

    Kit Contents (links in blue if available):

    Item# 46 Fan Run Capacitor 1499-5671

    Item# 49 Hard Start Capacitor Kit 8333A9021

    Item# 52 Fan Capacitor 1499-5461

    Option #1: Item# 34 Outdoor Blower Capacitor 1499-5631

    Option #2: Item# 45 Compressor Relay 1460-1131

    __________________________________________________________

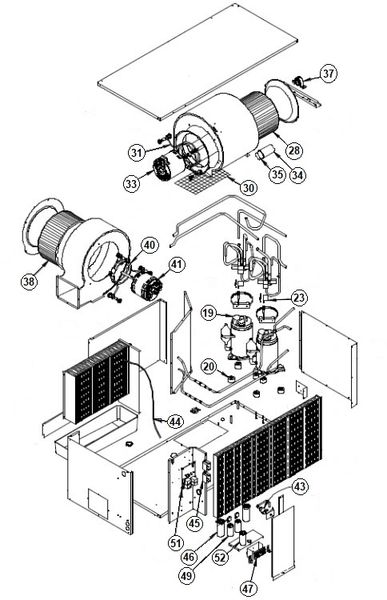

    Coleman Basement Heat Pump Model 6535A Exploded Parts View Links

    Click The Down Button To View Complete List

    Item# 19 Overload 1450-0081

    Item# 20 Compressor Mount Package 6759-3081

    Item# 23 Reversing Valve Solenoid Coil 1460-1081 NLA → (Use P# Link 1460-1331)

    Item# 28 Outdoor Blower Wheel 1472-1161

    Item# 33 Outdoor Blower Motor 1468A3029

    Item# 34 Outdoor Blower Capacitor 1499-5631

    Item# 37 Pillow Block Bearing 6536-3011

    Item# 38 Indoor Blower Wheel 1472-1121 NLA → (Use P# Link 1472-1151)

    Item# 41 Indoor Blower Motor 1468A3219

    Item# 44 Freeze Switch 7330A3231

    Item# 45 Compressor Relay 1460-1131

    Item# 46 Fan Run Capacitor 1499-5671

    Item# 49 Hard Start Capacitor Kit 8333A9021

    Item# 51 Printed Circuit Board Kit (6535B3201 NLA) → (6535B3209 NLA) → (Use P# Link 6535C3209)

    Item# 52 Fan Capacitor 1499-5461

    Not Shown High Voltage Terminal Board 6795-3151
