Coleman Basement Heat Pump Model 6537C671 Capacitor Kit

Coleman Basement Heat Pump Model 6537C671 Capacitor Kit

IN-STOCK

Kit Contents (links in blue if available):

Item# 40 Compressor Run Capacitor 1499-5731

Item# 43 Hard Start Capacitor Kit 8333A9021

Item# 45 Indoor Blower Fan Capacitor 1499-5461

Option #1: Item# 29 Outdoor Blower Fan Capacitor 1499-5631

Option #2: Item# 39 Compressor Relay 1460-1131

__________________________________________________________

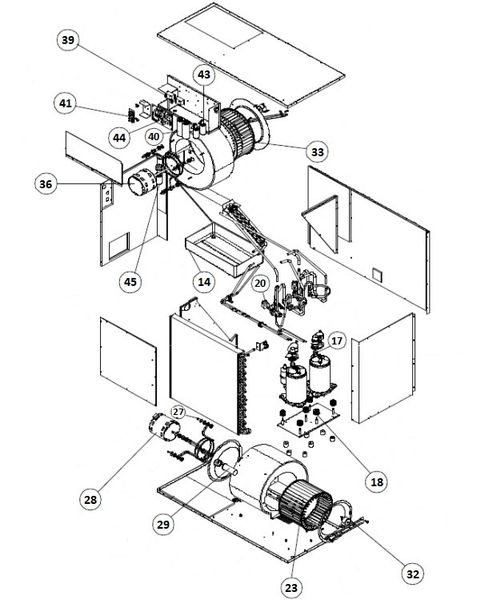

Coleman Basement Heat Pump Model 6537C671 Exploded Parts View Links

Click The Down Button To View Complete Parts List

Item# 14 Drain Pan 6537-104

Item# 17 Overload 1450-0161

Item# 18 Compressor Mount Package 6759-3081

Item#20 Reversing Solenoid Coil 1460-1081 NLA → (Use P# Link 1460-1331)

Item# 23 Outdoor Blower Wheel 1472-1161

Item# 27 Sleeve/ Grommet Package 6795A3031

Item# 28 Outdoor Blower Motor 1468A3029

Item# 29 Outdoor Blower Capacitor 1499-5631

Item# 32 Pillow Block Bearing 6536-3011

Item# 33 Indoor Blower Wheel 1472-1151

Item# 36 Indoor Blower Motor 1468A3219

Item# 45 Indoor Fan Capacitor 1499-5461

*Not Shown* Freeze Switch 7330A3231

Item# 39 Compressor Relay 1460-1131

Item# 40 Run Capacitor 1499-5731

Item# 43 Hard Start Capacitor Kit 8333A9021

Item# 44 Printed Circuit Board Kit 6535C3201 NLA → ( Use P# Link 6535C3209)

Item# 41 High Voltage Terminal Board 6795-3151
