Coleman Basement Heat Pump Model 46515-811 Capacitor Kit
Coleman Basement Heat Pump Model 46515811 Capacitor Kit
IN-STOCK
Kit Contents (links in blue):
Item# 39 Run Capacitor 1499-5681
Item# 42 Hard Start Capacitor Kit 8333A9021
Item# 45 Fan Capacitor 1499-5461
Option #1: Item# 29 Outdoor Blower Capacitor 1499-5631
Option #2: Item# 38 Compressor Relay 1460-1131
__________________________________________________________

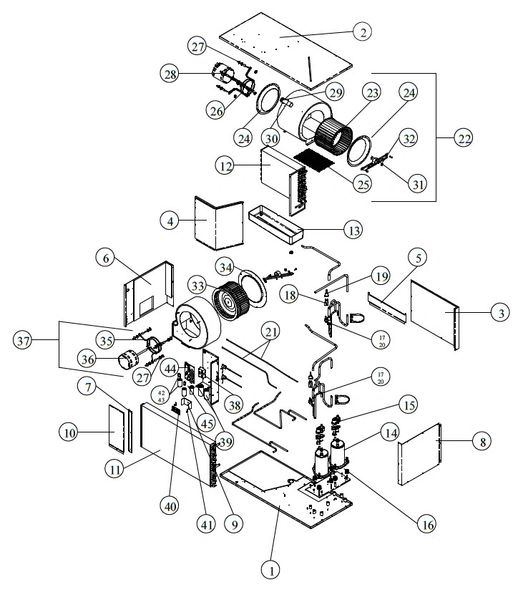

Coleman Basement Heat Pump Model 46515-811 Exploded Parts View Links
Click The Down Button To View Complete List
Item# 15 Overload 1450-0531
Item# 16 Compressor Mount Package 6759-3081
Item# 18 Reversing Valve Solenoid Coil 1460-1081 NLA → (Use P# 1460-1331)
Item# 23 Outdoor Blower Wheel 1472-1161
Item# 28 Outdoor Blower Motor 1468A3029
Item# 29 Outdoor Blower Capacitor 1499-5631
Item# 32 Pillow Block Bearing 6536-3011
Item# 33 Indoor Blower Wheel 1472-1151
Item# 36 Indoor Blower Motor 1468A3219
Not Shown Freeze Switch 7330A3231
Item# 38 Compressor Relay 1460-1131
Item# 39 Run Capacitor 1499-5681
Item# 42 Hard Start Capacitor Kit 8333A9021
Item# 44 Printed Circuit Board Kit 6535C3209
Item# 45 Fan Capacitor 1499-5461
Not Shown High Voltage Terminal Board 6795-3151
