Coleman Basement Air Conditioner Model 6537-871 Capacitor Kit

Coleman Basement Air Conditioner Model 6537-871 Capacitor Kit

IN-STOCK

Kit Contents (links in blue if available):

Item# 40 Compressor Run Capacitor (link): 1499-5671

Item# 43 Hard Start Capacitor Kit (link): 8333A9021

Item# 45 Indoor Blower Fan Capacitor (link): 1499-5461

Option #1: Item# 29 Outdoor Blower Fan Capacitor (link): 1499-5631

Option #2: Item# 39 Compressor Relay (link): 1460-1131

__________________________________________________________

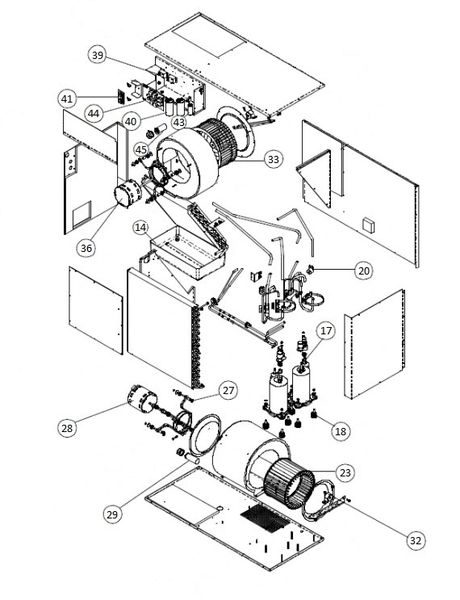

Coleman Basement Air Conditioner Model 6537871 Exploded Parts View Links

Click The Down Button To View Complete Parts List

Item# 14 Drain Pan 6537-104

Item# 17 Overload 1450-0081

Item# 18 Compressor Mount Package (link): 6759-3081

Item#20 Reversing Solenoid Coil (link): 1460-1081 NLA → (Use P# Link: 1460-1331)

Item# 23 Outdoor Blower Wheel (link): 1472-1161

Item# 27 Sleeve/ Grommet Package (link): 6795A3031

Item# 28 Outdoor Blower Motor (link): 1468A3029

Item# 29 Outdoor Blower Capacitor (link): 1499-5631

Item# 32 Pillow Block Bearing (link): 6536-3011

Item# 33 Indoor Blower Wheel (link): 1472-1151

Item# 36 Indoor Blower Motor (link): 1468A3219

Item# 45 Indoor Fan Capacitor (link): 1499-5461

*Not Shown* Freeze Switch (link): 7330A3231

Item# 39 Compressor Relay (link): 1460-1131

Item# 40 Run Capacitor (link): 1499-5671

Item# 43 Hard Start Capacitor Kit (link): 8333A9021

Item# 44 Printed Circuit Board Kit 6535B3201 NLA → (Use P# 6535B3209 NLA) → ( Use P# Link: 6535C3209)

Item# 41 High Voltage Terminal Board (link): 6795-3151
