Coleman Basement Heat Pump Model 6535-671 Capacitor Kit

Coleman Basement Heat Pump Model 6535671 Capacitor Kit

IN-STOCK

Kit Contents (links in blue if available):

Item# 42 Run Capacitor 1499-5731

Item# 45 Hard Start Capacitor Kit 8333A9021

Item# 48 Fan Capacitor 1499-5461

Option #1: Item# 31 Outdoor Blower Capacitor 1499-5631

Option #2: Item# 41 Compressor Relay 1460-1131

__________________________________________________________

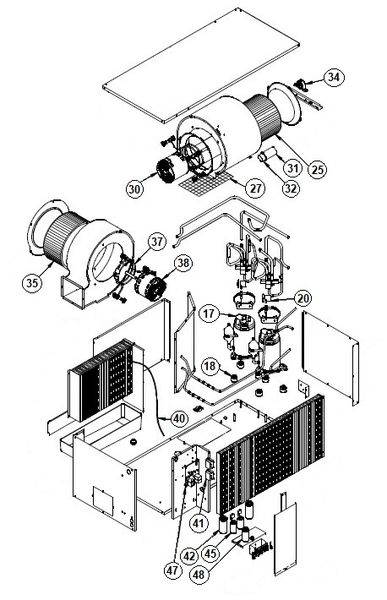

Coleman Basement Heat Pump Model 6535-671 Exploded Parts View Links

Click The Down Button To View Complete List

Item# 17 Overload 1450-0081

Item# 18 Compressor Mount Package 6759-3081

Item# 20 Reversing Valve Solenoid Coil 1460-1081 NLA → (Use P# Link 1460-1331)

Item# 25 Outdoor Blower Wheel 1472-1161

Item# 30 Outdoor Blower Motor 1468A3029

Item# 31 Outdoor Blower Capacitor 1499-5631

Item# 34 Pillow  Block Bearing 6536-3011

Item# 35 Indoor Blower Wheel 1472-1121 NLA → (Use P# Link 1472-1151)

Item# 38 Indoor Blower Motor 1468A3219

Item# 40 Freeze Switch 7330A3231

Item# 41 Compressor Relay 1460-1131

Item# 42 Run Capacitor 1499-5731

Item# 45 Hard Start Capacitor Kit 8333A9021

Item# 47 Printed Circuit Board Kit 6535B3209 NLA → (Use P# Link 6535C3209)

Item# 48 Fan Capacitor 1499-5461

Not Shown High Voltage Terminal Board 6795-3151
