Dometic Refrigerator Control Board Kit, 3 Way, 3308742000

Dometic Refrigerator Control Board Kit 3308742000 No Longer Available

Also known under part number: 3308742.000

Note #1: the after-market version for this board is Dinosaur Electronics part number (link in blue): P-711

Note #2: This Dometic universal board kit was for some 3-Way Dometic refrigerators. This kit replaces board 3850415013 when used in some 3 way refrigerator versions.

Note #3: if your refrigerator has been upgraded using 3 way kit 3316995.900 at any time in the past then this module is no longer applicable.

Note #4: To order the Dinosaur Electronics version that replaces board 3850415013 in fixed temperature refrigerators, please click onto this link: 3850415.013

Note #5: to order just the relay that came in this kit, please click on this link (link in blue): 2930385006

Includes (links in blue if available):

• Lower Power Module Assembly
• Wiring Diagram 3308727.001
• Wire Connector 3308769.003
• Black Wire 3308770.001
• Red Wire 3308771.009

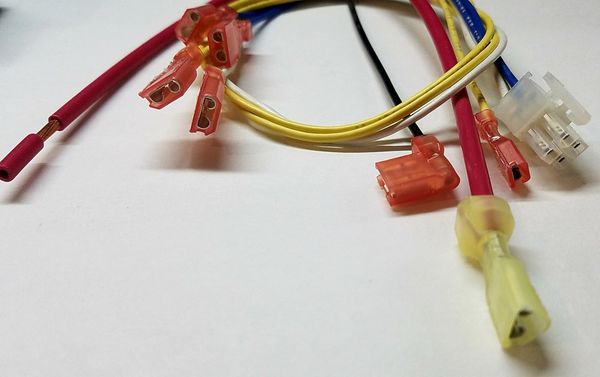

• 3-way Harness 3308773.005
• Screw #4 x 1/2" PRH Self-tapping hardware 3308774.003
• Cover
• 12VDC Relay 2930385006
• Installation instructions 3308740.004

Replaces Part Numbers:

• 2931843037 (2931843.037)
• 2931843045 (2931843.045)
• 2932882018 (2932882.018)

Applicable To Models With Product Numbers (links in blue if available):

• RM2354 With Product Number 921145025 (replaces p# 3850415013 *see note #1 & #2 above*)
• RM2354 With Product Number 921145027 (replaces p# 3850415013 *see note #1 & #2 above*)
• RM2354 With Product Number 921145030 (replaces p# 3850415013 *see note #1 & #2 above*)
• RM2354 With Product Number 921145031 (replaces p# 3850415013 *see note #1 & #2 above*)

• RM2454 With Product Number 921140114 (replaces p# 3850415013 *see note #1 & #2 above*)
• RM2454 With Product Number 921140115 (replaces p# 3850415013 *see note #1 & #2 above*)
• RM2454 With Product Number 921140118 (replaces p# 3850415013 *see note #1 & #2 above*)
• RM2454 With Product Number 921140119 (replaces p# 3850415013 *see note #1 & #2 above*)

• RM2554 With Product Number 921142017 (replaces p# 3850415013 *see note #1 & #2 above*)
• RM2554 With Product Number 921142018 (replaces p# 3850415013 *see note #1 & #2 above*)
• RM2554 With Product Number 921142021 (replaces p# 3850415013 *see note #1 & #2 above*)
• RM2554 With Product Number 921142022 (replaces p# 3850415013 *see note #1 & #2 above*)
• RM2554 With Product Number 921142107 (replaces p# 3850415013 *see note #1 & #2 above*)
• RM2554 With Product Number 921142108 (replaces p# 3850415013 *see note #1 & #2 above*)

• RM2607 With Product Number 921573201
• RM2607 With Product Number 921573301
• RM2607 With Product Number 921574001
• RM2607 With Product Number 921574101

• RM2611 With Product Number 921571401
• RM2611 With Product Number 921572201
• RM2611 With Product Number 921572601
• RM2611 With Product Number 921572701
• RM2611 With Product Number 921573601
• RM2611 With Product Number 921573701
• RM2611 With Product Number 921574201
• RM2611 With Product Number 921574301

• RM2663 With Product Number 921144065
• RM2663 With Product Number 921144066
• RM2663 With Product Number 921144105
• RM2663 With Product Number 921144106

• RM2807 With Product Number 921590701
• RM2807 With Product Number 921593201
• RM2807 With Product Number 921593301
• RM2807 With Product Number 921594801
• RM2807 With Product Number 921594901

• RM2811 With Product Number 921591101
• RM2811 With Product Number 921591901
• RM2811 With Product Number 921594001
• RM2811 With Product Number 921594101
• RM2811 With Product Number 921595201
• RM2811 With Product Number 921595301

• RM3663 With Product Number 921144009 (replaces p# 2931843045)
• RM3663 With Product Number 921144010 (replaces p# 2931843045)
• RM3663 With Product Number 921144011 (replaces p# 2931843045)
• RM3663 With Product Number 921144012 (replaces p# 2931843045)
• RM3663 With Product Number 921144051 (replaces p# 2932882018)
• RM3663 With Product Number 921144052 (replaces p# 2932882018)

• RM4873 With Product Number 921146031 (replaces p# 2931843037)
• RM4873 With Product Number 921146032 (replaces p# 2931843037)
• RM4873 With Product Number 921146033 (replaces p# 2931843037)
• RM4873 With Product Number 921146034 (replaces p# 2931843037)
