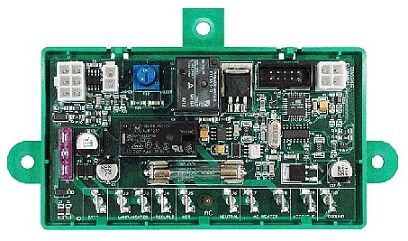

Dometic / Dinosaur Refrigerator Control Board 3850415.01
Features 2-way or 3-way operation, is fuse protected and has variable temperature adjustment for those FIXED TEMP refrigerators. After each time the ignition try fails to sense a flame, the CHECK light will come on. It will then repeat the 3 try ignition cycle at 30 minute intervals if no flame is sensed. If the voltage level falls too low for more than 10 seconds, the DC element will drop out and the DC mode light will flash in 3-ways.
Replacement Circuit Board is designed to work as a replacement for Dometic's kit board # 3850415.01. It will replace board in Dometic Model # RM2351, as well as replace Dometic Black Box part number (link): 3850415.013. This replacement board will also fit the following Dometic Product #'s: 921146103 - 921146108, #921145025 - 921145031, 921140112 - 9211401126, 921140114 - 921140119, 921142101 - 921142110, 921142107 - 921142108, 921144101 - 921144140 and 921144103 - 921144110.
