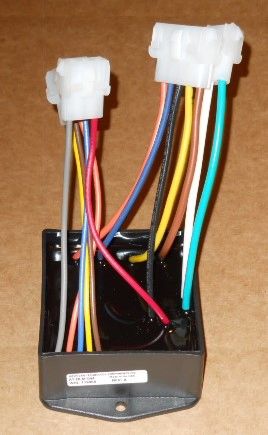

American Technology Slide Room Controller AT-RLM-044

American Technology Slide Room Controller AT-RLM-044

Replaces Part#: AT-RLM-024 & AT-CSR-011

Please note: this replacement controller has a slightly different operational parameters. The controller must have an override switch that is connected to a good ground source. This switch must be depressed and held whenever operating the slide rooms in retraction or extension. The slide room can be retracted when the ignition switch is on but cannot be extended with the ignition switch on.

Applicable to Manufacturers: Georgie Boy, Coachmen and others.

______________________________________________________

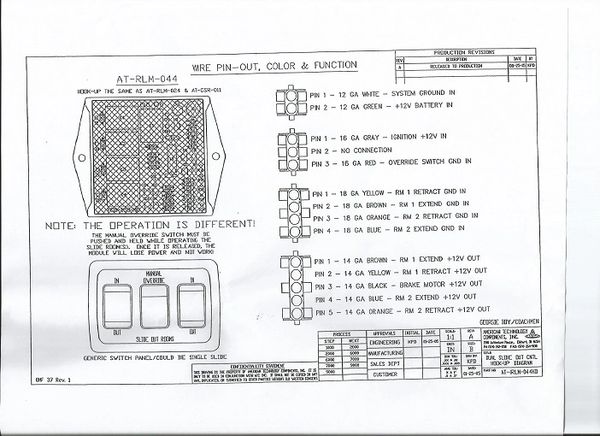

Plug / Harnesses Available For Purchase Links (links in blue):

2 Position Plug / Harness Link

3 Position Plug / Harness Link

4 Position Plug / Harness Link
