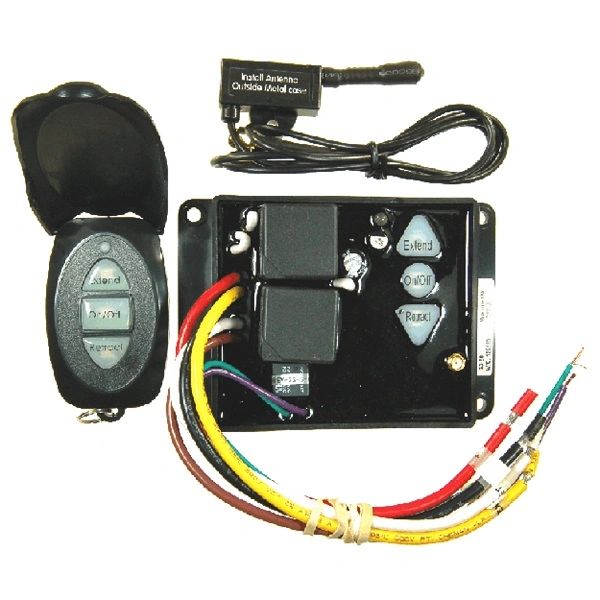

American Technology Wireless Slide Room Controller G3-E01

American Technology Wireless Slide Room Controller G3-E01

Note: This controller can be used for 2 channel electric leveling systems as well.

IN-STOCK

To order the wireless hydraulic slide room / leveling controller, click onto this link: G3-H01

To order an additional / replacement remote control for this controller or for the G3-H01 controller, click onto this link: G3-XMTR-01

Wiring Legend:

Red To Battery (circuit protection required)

Black To Ground

Yellow To Extend or Up Circuit

White To Retract or Down Circuit

Brown To Motor Brake If So Equipped

*Optional* Green To Up Extend or Up Circuit @ Switch (note: switch must use a ground signal to trigger controller- typically center terminal @ switch)

*Optional* Purple To Retract or Down Circuit @ Switch (note: switch must use a ground signal to trigger controller- typically center terminal @ switch)
