Atwood / Hydro Flame 2334 2 Stage Furnace Motor And Blower Wheel Kit

Atwood / HydroFlame 2334 2 Stage Furnace Motor / Blower Wheel / Combustion Wheel Kit

IN-STOCK

Kit Contents (links in blue):

Item#36 Blower Motor (link): 30134 (Replaced P# Link: 37964)

Item#10 Combustion Air Wheel (link): 33128

Item#1 Blower Wheel (link): 33126

______________________________________________

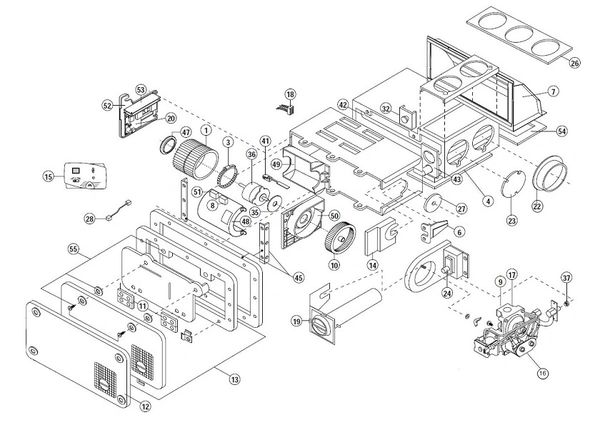

Atwood 2334 2 Stage Furnace Parts List With Links

Item#1 Blower Wheel & Clamp (link): 33126

Item#6 Burner Head Assembly (link): 30268

Item#6 Burner Head Assembly (link): 30268-OS

Item#8 On/Off Switch (link): 31092

Item#10 Combustion Air Wheel (link): 33128

Click The Down Arrow To View The Complete Parts List

Item#14 Slide Plate Assembly (link): 37411

Item#15 Thermostat (link): 38535 NLA

Item#16 Replacement Coil (link): 31000 NLA

Item#17 Gas Valve Assembly (link): 38605 NLA

Item#18 Field Plug Assembly (link): 37987

Item#19 Draft Shield Assembly (link): 38141 NLA

Item#20 Ignition Control Module Board (link): 34696

*Not Shown* Ignition Control Module Board Mount Bracket (link): 34541 NLA

Item#22 Duct Adapter, 4 Inch (link): 31474

*Not Shown* 4 Inch Flexible Heater Duct Hose (link): E4-25

*Not Shown* Duct Adapter, 2 Inch (link): 36688

*Not Shown* 2 Inch Flexible Heater Duct Hose (link): E2-25

Item#23 Duct Cover, 4 Inch (link): 31361

Item#24 Electrode (link): 34570

*Not Shown* OEM Electrode Gasket (link): 37100 NLA

*Not Shown* After-Market Electrode Gasket (link): 37100MC

Item#27 Gas Inlet Plug (link): 37410 NLA

Item#28 High Tension Lead (link): 37419

Item#32 Limit Switch, 3/16" Spade Terminal (link): 37022

Item#32 Limit Switch, 3/16" Spade Terminal (link): 37022-OS

Item#32 Limit Switch, 1/4" Spade Terminal (link): 37022MC

Item#32 Limit Switch, 1/4" Spade Terminal (link): 37022-OS

Item#35 Motor Gasket (link): 37600 NLA

Item#36 OEM Blower Motor (link): 30134

Item#37 Orifice, Stamp #51 (link): 31080

Item#41 Sail Switch (link): 31377 (Replaces P# Link: 36680)

Item#43 OEM Exhaust Wall Gasket (link): 37956 NLA

Item#43 After-Market Exhaust Wall Gasket (link): 37956PDX

Item#48 Blower Housing Cover (link): 37605 NLA

Item#49 Blower Housing (link): 37606 NLA

Item#50 Motor Wall Assembly (link): 37801 NLA

Item#51 Switch / Breaker Combination (link) 33782

Item#51 Switch / Breaker Combination (link) 32345

Item#52 Motor Speed Control Board Mount Bracket (link): 34543 NLA

Item#53 Motor Speed Control Board (link): 34109

Item#55 Door Latch (link): 33847

*Not Shown* Wiring Kit (link): 30233 NLA
