Atwood Furnace Model AFLA35211 Motor And Wheel Kit
Atwood Furnace AFLA35211 Blower Motor / Combustion Wheel / Blower Wheel Kit

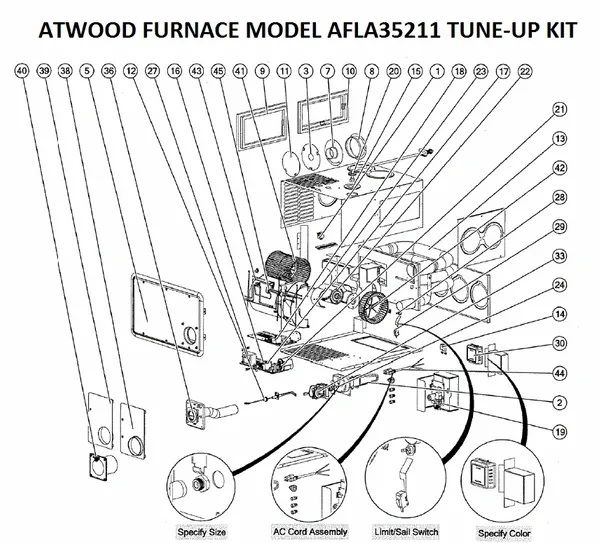

Motor & Wheel Kit Includes (individual parts links in blue):
Item#1 Not Applicable
Item#2 Burner Assembly (link): 30209
Item#3 Combustion Air Restrictor Kit 31089
Item#4 Arctic White Door Kit 30487
Item#4 Black Door Kit 30499
Item#5 Arctic White Door Kit 31845
Item#5 Black Door Kit 31861
Item#7 2 Inch Duct Adapter (link): 36688
*Not Shown* 2 Inch Flexible Heater Duct Hose (link): E2-25
Item#8 4 Inch Duct Adapter (link): 31474
*Not Shown* 4 Inch Flexible Heater Duct Hose (link): E4-25
Item#9 Side Discharge Adapter Plate Kit 30205
Item#10 Bottom Plate Adapter Kit (link): 30261
Item#11 4 Inch Duct Cover Plate (link): 31361
Item#12 Electrode (link): 35100
Item#12 Electrode (link): 35100-OS
Item#12 Electrode (link): 35100MC
Item#13 Heat Exchanger 35707
Item#14 Leg Casing Kit 31244
Item#15 Gas Line Grommet (link): 35706
Item#16 AC DSI Bracket 31243
Item#17 Ignition Board (link): 30621
Item#21 Capacitor (link): 34039
Item#21 Capacitor (link): 34039-OS
Item#22 OEM AC Motor Kit (link): 30710
Item#24 #51 Orifice (link): 31080
Item#24 3.0MM Orifice 31088
Item#27 AC Transformer Kit (link): 31095
*Not Shown* On/Off Switch (link): 31092
Item#28 Limit Switch (link): 31091
Item#28 Limit Switch (link): 31091-OS
Item#28 Limit Switch (link): 31091MC
Item#29 OEM Curved Blade Sail Switch (link): 31094 NLA (Replaced By P# Link: 31094-OS)
Item#29 Curved Blade Sail Switch (link): 31094-OS
Item#29 Curved Blade Sail Switch (link): 31094MC
Item#29 Flat Blade Sail Switch Only (link): 33063
Item#29 Flat Blade Sail Switch With Bracket Kit (link): 33082 (New P# 36165)
Item#29 Flat Blade Sail Switch With Bracket Kit (link): 33082-OS (New P# 36165-OS)
Item#30 Thermostat, Black (link): 32300
Item#30 Thermostat, Brown (link): 38452 NLA
Item#30 Thermostat, White (link): 38453
Item#33 24VAC Gas Valve Kit (link): 31099
Item#37 Door Vent Assembly Kit 31812
Item#39 Not Applicable
Item#40 Not Applicable
Item#41 Blower Wheel Kit (link): 33126
Item#42 Combustion Wheel Kit (link): 30619
*Not Shown* AC Wiring Harness (link): 31123
*Not Shown* Cord Assembly Kit 30623
___________________________________________
Available Downloads:
Atwood AFLA35211 Mobile Service Training Manual 2007
Atwood HydroFlame AFLA35211 Service Manual 2004
Atwood HydroFlame AFLA35211 Service Manual 2007
Atwood AFLA35211 Time Delay, Sail Switch, And Limit Switch Important Info
