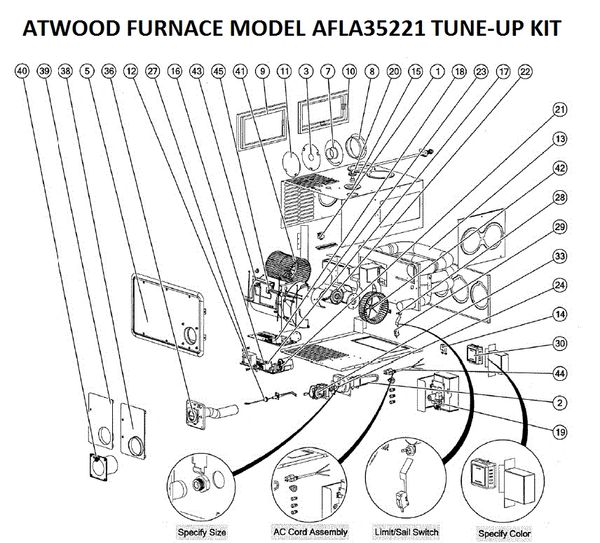

Atwood Furnace Model AFLA35221 Tune-Up Kit

Kit # 2 Only applicable to serial number after 81689155

Tune-Up Kit #2 Includes (individual part links in blue):

Click The Down Arrow To View Complete Parts List

*Not Shown* Blower Motor And Wheel Kit (link): 30710/30619/33126

Item#1 Not Applicable

Item#2 Burner Assembly (link): 30209

Item#2 Burner Assembly (link): 30209-OS

Item#3 Combustion Air Restrictor Kit 31089

Item#4 Not Applicable

Item#4 Not Applicable

Item#5 Not Applicable

Item#5 Not Applicable

Item#7 2 Inch Duct Adapter (link): 36688

*Not Shown* 2 Inch Flexible Heater Duct Hose (link): E2-25

Item#8 4 Inch Duct Adapter (link): 31474

*Not Shown* 4 Inch Flexible Heater Duct Hose (link): E4-25

Item#9 Side Discharge Adapter Plate Kit 30205

Item#10 Bottom Plate Adapter Kit (link): 30261

Item#11 4 Inch Duct Cover Plate (link): 31361

Item#12 Electrode (link): 35100

Item#12 Electrode (link): 35100-OS

Item#12 Electrode (link): 35100MC

Item#13 Heat Exchanger 35707

Item#14 Leg Casing Kit 31244

Item#15 Gas Line Grommet (link): 35706

Item#16 AC DSI Bracket 31243

Item#17 Ignition Board (link): 30621

Item#18 Not Applicable

Item#19 Not Applicable

Item#20 Manifold Extension Kit 35712

Item#21 Capacitor (link): 34039

Item#21 Capacitor (link): 34039-OS

Item#22 OEM AC Motor Kit (link): 30710

Item#23 Not Applicable

Item#24 Stamp #51 Orifice (link): 31080

Item#24 3.0MM Orifice 31088

Item#27 AC Transformer Kit (link): 31095

*Not Shown* On/Off Switch (link): 31092

Item#28 Limit Switch (link): 31091

Item#28 Limit Switch (link): 31091-OS

Item#28 Limit Switch (link): 31091MC

Item#29 OEM Curved Blade Sail Switch (link): 31094 NLA (Replaced By P# Link: 31094-OS)

Item#29 Curved Blade Sail Switch (link): 31094-OS

Item#29 Curved Blade Sail Switch (link): 31094MC

Item#29 OEM Flat Blade Sail Switch Kit (link): 33082 (New P# 36165)

Item#29 Flat Blade Sail Switch Kit (link): 33082-OS (New P# 36165-OS)

Item#29 Flat Blade Sail Switch Only (link): 33063

Item#30 Thermostat, Black (link): 32300

Item#30 Thermostat, Brown (link): 38452 NLA

Item#30 Thermostat, White (link): 38453

Item#33 24VAC Gas Valve Kit (link): 31099

Item#37 LD Vent Kit (V4 LW) 32332

Item#37 LD Vent Kit (V3) 30584

Item#37 LD Vent Kit (V4) 31274

Item#39 Panel Extension Vent (V3) 30457

Item#40 Panel Extension Vent (V4) 30611

Item#40 Not Applicable

Item#41 Blower Wheel Kit (link): 33126

Item#42 Combustion Wheel Kit (link): 30619

*Not Shown* AC Wiring Harness (link): 31123

*Not Shown* Cord Assembly Kit 30623
