Atwood Furnace Model AFLA35231 Motor And Wheel Kit

$271.61 $224.30
Required
This item is out of stock

Atwood Furnace AFLA35231 Blower Motor / Combustion Wheel / Blower Wheel Kit

Kit Includes (individual part links in blue):

Item#22 OEM AC Motor Kit (link): 30710
Item#42 OEM Combustion Wheel Kit (link): 30619
Item#41 OEM Blower Wheel Kit (link): 33126
_________________________________

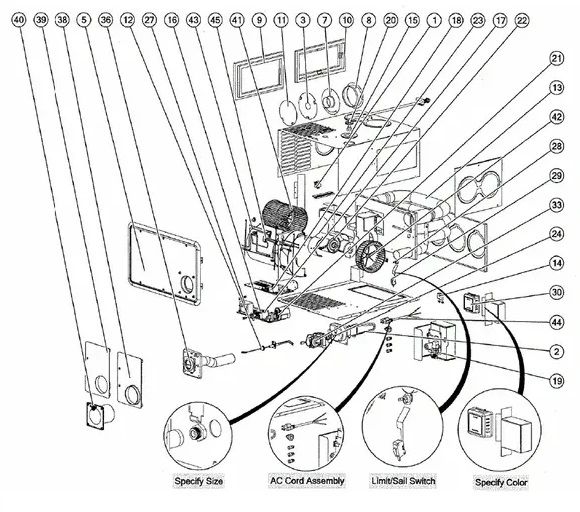

Atwood Furnace Model AFLA35231 Exploded Parts View Links

    Item#1 Not Applicable

    Item#2 Burner Assembly (link): 30209

    Item#2 Burner Assembly (link): 30209-OS

    Item#3 Combustion Air Restrictor Kit 31089

    Item#4 Arctic White Door Kit 30487

    Item#4 Black Door Kit 30499

    Item#5 Arctic White Door Kit 31845

    Item#5 Black Door Kit 31861

    Item#7 2 Inch Duct Adapter (link): 36688

    Click The Down Arrow To View Complete Item List

    *Not Shown* 2 Inch Flexible Heater Duct Hose (link): E2-25

    Item#8 4 Inch Duct Adapter (link): 31474

    *Not Shown* 4 Inch Flexible Heater Duct Hose (link): E4-25

    Item#9 Side Discharge Adapter Plate Kit 30205

    Item#10 Bottom Plate Adapter Kit (link): 30261

    Item#11 4 Inch Duct Cover Plate (link): 31361

    Item#12 Electrode (link): 35100

    Item#12 Electrode (link): 35100-OS

    Item#12 Electrode (link): 35100MC

    Item#13 Heat Exchanger 35707

    Item#14 Leg Casing Kit 31244

    Item#15 Gas Line Grommet (link): 35706

    Item#16 AC DSI Bracket 31243

    Item#17 Ignition Board (link): 30621

    Item#18 Not Applicable

    Item#19 Not Applicable

    Item#20 Manifold Extension Kit 35712

    Item#21 Capacitor (link): 34039

    Item#21 Capacitor (link): 34039-OS

    Item#22 OEM AC Motor Kit (link): 30710

    Item#24 Stamp #51 Orifice (link): 31080

    Item#24 3.0MM Orifice 31088

    Item#27 AC Transformer Kit (link): 31095

    *Not Shown* On/Off Switch (link): 31092

    Item#28 Limit Switch (link): 31091

    Item#28 Limit Switch (link): 31091-OS

    Item#28 Limit Switch (link): 31091MC

    Item#29 OEM Curved Blade Sail Switch (link): 31094 NLA (Replaced By P# Link: 31094-OS)

    Item#29 Curved Blade Sail Switch (link): 31094-OS

    Item#29 Curved Blade Sail Switch (link): 31094MC

    Item#29 OEM Flat Blade Sail Switch Kit (link): 33082 (New P# 36165)

    Item#29 Flat Blade Sail Switch Kit (link): 33082-OS (New P# 36165-OS)

    Item#29 Flat Blade Sail Switch Only (link): 33063

    Item#30 Thermostat, Black (link): 32300

    Item#30 Thermostat, Brown (link): 38452 NLA

    Item#30 Thermostat, White (link): 38453

    Item#33 24VAC Gas Valve Kit (link): 31099

    Item#37 Door Vent Kit (.930 V4) 31812

    Item#41 Blower Wheel Kit (link): 33126

    Item#42 Combustion Wheel Kit (link): 30619

    *Not Shown* AC Wiring Harness (link): 31123

    *Not Shown* Cord Assembly Kit 30623

    ___________________________________________
    Available Downloads:

    Atwood AFLA35231 Mobile Service Training Manual 2007

    Atwood HydroFlame AFLA35231 Service Manual 2004

    Atwood HydroFlame AFLA35231 Service Manual 2007

    Atwood AFLA35231 Time Delay, Sail Switch, And Limit Switch Important Info
