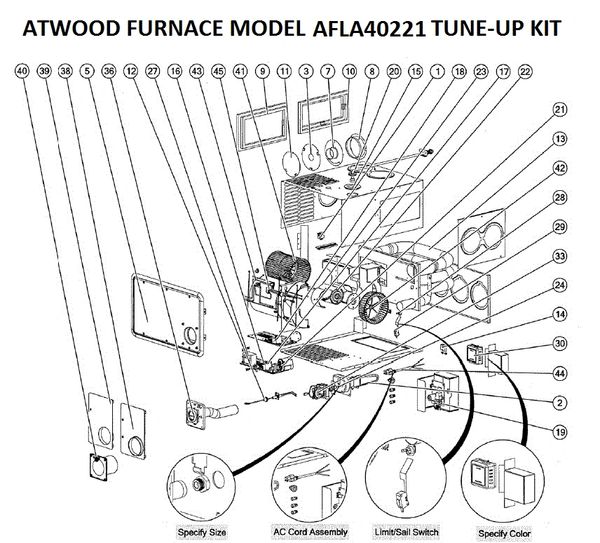

Atwood Furnace Model AFLA40221 Tune-Up Kit
Atwood Furnace Model AFLA40221 Tune-Up/ Repair Kits
Kit #1 Only applicable to serial number before: 81689155
Tune-Up Kit #1 Includes (individual part links in blue):
Item #12 Electrode Assembly (link): 35100-OS
Item #28 Limit Switch, 190° (link): 31091-OS
Item #29 Sail Switch (link): 31094 NLA (New P# Link: 31094-OS) (curved blade)
Kit # 2 Only applicable to serial number after 81689155
Tune-Up Kit #2 Includes (individual part links in blue):
Item #12 Electrode Assembly (link): 35100-OS
Item #28 Limit Switch, 190° (link): 31091-OS
Item #29 Sail Switch (link): 33082-OS (New P# 36165-OS) (flat blade)
IN-STOCK
*Not Shown* Blower Motor And Wheel Kit (link): 30710/30619/33126
Item#1 Not Applicable
Item#2 Burner Head (link): 30209
Item#2 Burner Assembly (link): 30209-OS
Item#3 Combustion Air Restrictor Kit 31089
Item#4 Not Applicable
Item#4 Not Applicable
Item#5 Not Applicable
Item#5 Not Applicable
Item#7 2 Inch Adapter Duct (link): 36688
*Not Shown* 2 Inch Flexible Heater Duct Hose (link): E2-25
Item#8 4 Inch Adapter Duct (link): 31474
*Not Shown* 4 Inch Flexible Heater Duct Hose (link): E4-25
Item#9 Side Discharge Adapter Plate 30205
Item#10 Bottom Discharge Adapter Plate (link): 30261
Item#11 Duct Cover Plate (link): 31361
Item#12 Electrode Assembly (link): 35100
Item#12 Electrode (link): 35100-OS
Item#12 Electrode (link): 35100MC
Item#13 Heat Exchanger 35707
Item#14 Casing Leg 31244
Item#15 Gas Line Grommet (link): 35706
Item#16 DSI AC Bracket Kit 31243
Item#17 Ignition Board (link): 30621
Item#18 Not Applicable
Item#19 Not Applicable
Item#20 Manifold Extension Assembly 35712
Item#21 Capacitor (link): 34039
Item#21 Capacitor (link): 34039-OS
Item#22 OEM 120VAC Blower Motor (link): 30710
Item#23 Not Applicable
Item#24 LP Orifice Stamp #49 (link): 31077
Item#27 AC Transformer (link): 31095
*Not Shown* On/Off Switch (link): 31092
Item#28 Limit Switch (link): 31091
Item#28 Limit Switch (link): 31091-OS
Item#28 Limit Switch (link): 31091MC
Item#29 OEM Curved Blade Sail Switch (link): 31094 NLA (Replaced By P# Link: 31094-OS)
Item#29 Curved Blade Sail Switch (link): 31094-OS
Item#29 Curved Blade Sail Switch (link): 31094MC
Item#29 OEM Flat Blade Sail Switch Kit (link): 33082 (New P# 36165)
Item#29 Flat Blade Sail Switch Kit (link): 33082-OS (New P# 36165-OS)
Item#29 Flat Blade Sail Switch Only (link): 33063
Item#30 Black Heat Only Thermostat (link): 32300
Item#30 Brown Heat Only Thermostat (link): 38452 NLA
Item#30 White Heat Only Thermostat (link): 38453
Item#33 24VAC Gas Valve (link): 31099
Item#37 LD Vent Kit 31273
Item#37 LD Vent Kit 32311
Item#37 LD Vent Kit 30940
Item#37 LD Vent Kit 30583
Item#39 Vent Panel Extension 30457
Item#40 Vent Panel Extension 30611
Item#41 Blower Wheel Kit (link): 33126
Item#42 Combustion Wheel Kit (link): 30619
Item#43 AC Wiring Harness (link): 31123
Item#44 AC Cord 30623
___________________________________________
Available Downloads:
Atwood AFLA40221 Mobile Service Training Manual 2007
Atwood HydroFlame AFLA40221 Service Manual 2004
Atwood HydroFlame AFLA40221 Service Manual 2007
Atwood AFLA40221 Time Delay, Sail Switch, And Limit Switch Important Info
