Atwood Furnace Model AFLA40231 Motor And Wheel Kit

$271.61 $223.03
Required
This item is out of stock

Atwood Furnace AFLA40231 Blower Motor / Combustion Wheel / Blower Wheel Kit

Kit Includes (individual part links in blue):

Item#22 OEM AC Motor Kit (link): 30710
Item#42 OEM Combustion Wheel Kit (link): 30619
Item#41 OEM Blower Wheel Kit (link): 33126
________________________________

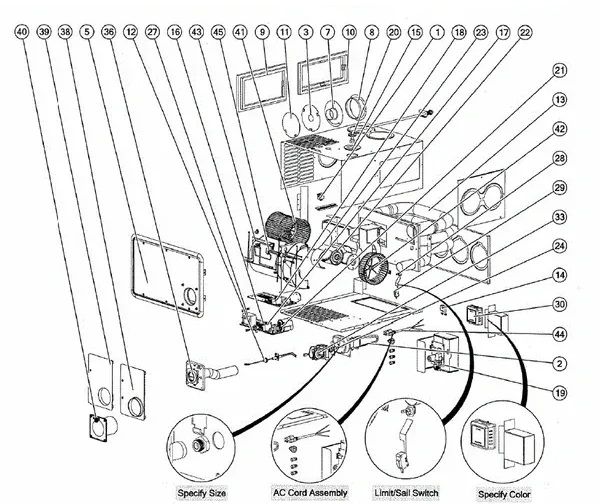

Atwood Furnace Model AFLA40231 Exploded Parts View Links

    Item#1 Not Applicable

    Item#2 Burner Head (link): 30209

    Item#2 Burner Assembly (link): 30209-OS

    Item#3 Combustion Air Restrictor Kit 31089

    Item#4 Arctic White #34 Door Kit 30487

    Item#4 Black #44 Door Kit 30499

    Item#5 Arctic White #34 L-F Door Kit 31845

    Item#5 Black #44 L-F Door Kit 31861

    Item#7 2 Inch Adapter Duct (link): 36688

    Click The Down Arrow To View The Complete Parts List

    *Not Shown* 2 Inch Flexible Heater Duct Hose (link): E2-25

    Item#8 4 Inch Adapter Duct (link): 31474

    *Not Shown* 4 Inch Flexible Heater Duct Hose (link): E4-25

    Item#9 Side Discharge Adapter Plate 30205

    Item#10 Bottom Discharge Adapter Plate (link): 30261

    Item#11 Duct Cover Plate (link): 31361

    Item#12 Electrode Assembly (link): 35100

    Item#12 Electrode (link): 35100-OS

    Item#12 Electrode (link): 35100MC

    Item#13 Heat Exchanger 35707

    Item#14 Casing Leg 31244

    Item#15 Gas Line Grommet (link): 35706

    Item#16 DSI AC Bracket Kit 31243

    Item#17 OEM Ignition Board (link): 30621

    Item#18 Not Applicable

    Item#19 Not Applicable

    Item#20 Manifold Extension Assembly 35712

    Item#21 Capacitor (link) 34039

    Item#21 Capacitor (link): 34039-OS

    Item#22 OEM 120VAC Blower Motor 30710

    Item#23 Not Applicable

    Item#24 LP Orifice Stamp #49 (link): 31077

    Item#27 AC Transformer (link): 31095

    *Not Shown* On/Off Switch (link): 31092

    Item#28 Limit Switch (link): 31091

    Item#28 Limit Switch (link): 31091-OS

    Item#28 Limit Switch (link): 31091MC

    Item#29 OEM Curved Blade Sail Switch (link): 31094 NLA (Replaced By P# Link: 31094-OS)

    Item#29 Curved Blade Sail Switch (link): 31094-OS

    Item#29 Curved Blade Sail Switch (link): 31094MC

    Item#29 OEM Flat Blade Sail Switch Kit (link): 33082 (New P# 36165)

    Item#29 Flat Blade Sail Switch Kit (link): 33082-OS (New P# 36165-OS)

    Item#29 Flat Blade Sail Switch Only (link): 33063

    Item#30 Black Heat Only Thermostat (link): 32300

    Item#30 Brown Heat Only Thermostat (link): 38452 NLA

    Item#30 White Heat Only Thermostat (link): 38453

    Item#33 24VAC Gas Valve (link): 31099

    Item#37 Door Vent Assembly 31809

    Item#39 Not Applicable

    Item#40 Not Applicable

    Item#41 Blower Wheel Kit (link): 33126

    Item#42 Combustion Wheel Kit (link): 30619

    Item#43 AC Wiring Harness (link): 31123

    Item#44 AC Cord 30623

    ________________________________________________

    Available Downloads:

    Atwood AFLA40231 Mobile Service Training Manual 2007

    Atwood HydroFlame AFLA40231 Service Manual 2004

    Atwood HydroFlame AFLA40231 Service Manual 2007

    Atwood AFLA40231 Time Delay, Sail Switch, And Limit Switch Important Info
