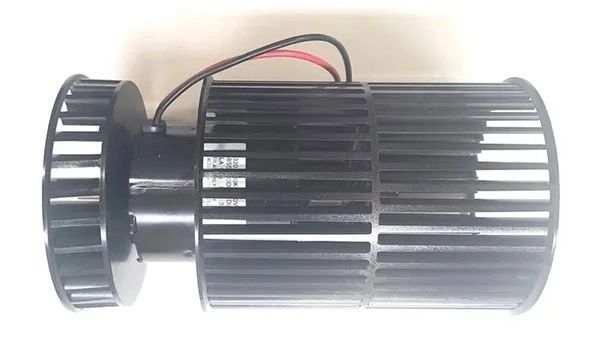

• Atwood 1522 LD 2 Stage Furnace Motor And Blower Wheel Kit

    $198.99 $168.57

    Atwood 1522 LD 2 Stage Furnace Motor And Blower Wheel Kit

    IN-STOCK

    Kit Contents (links in blue):

    Item#36 Blower Motor (link): 38554

    Item#10 Combustion Air Wheel (link): 33128

    Item#1 Blower Wheel (link): 33126

    ______________________________________________

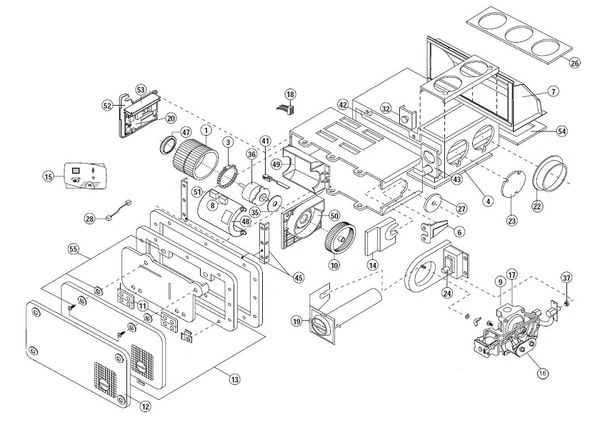

    Atwood Furnace Model 1522 LD 2 Stage Parts Links

        Item#1 Blower Wheel & Clamp (link): 33126

        Item#6 Burner Head Assembly (link): 30268

        Item#8 On/Off Switch (link): 31092

        Item#10 Combustion Air Wheel (link): 33128

        Item#14 Slide Plate Assembly (link): 37411

        Item#15 Thermostat (link): 38535 NLA

        Item#16 Replacement Coil (link): 31000 NLA

        Click The Down Arrow To View The Complete Parts List

        Item#17 Gas Valve Assembly (link): 38602 NLA

        Item#18 Field Plug Assembly (link): 37987

        Item#19 Draft Shield Assembly (link): 38141 NLA

        Item#20 Ignition Control Module Board (link): 34696

        *Not Shown* Ignition Control Module Board Mount Bracket (link): 34541 NLA

        Item#22 Duct Adapter, 4 Inch (link): 31474

        *Not Shown* 4 Inch Flexible Heater Duct Hose (link): E4-25

        *Not Shown* Duct Adapter, 2 Inch (link): 36688

        *Not Shown* 2 Inch Flexible Heater Duct Hose (link): E2-25

        Item#23 Duct Cover, 4 Inch (link): 31361

        Item#24 Electrode (link): 34570

        *Not Shown* OEM Electrode Gasket (link): 37100 NLA

        *Not Shown* After-Market Electrode Gasket (link): 37100MC

        Item#27 Gas Inlet Plug (link): 37410 NLA

        Item#28 High Tension Lead (link): 37419

        Item#32 Limit Switch, 3/16" Spade Terminal 37022

        Item#32 Limit Switch, 1/4" Spade Terminal 37022MC

        Item#35 Motor Gasket (link): 37600 NLA

        Item#36 OEM Blower Motor (link): 38554

        Item#37 Orifice, Stamp #54 (link): 31267 NLA

        Item#41 Sail Switch (link): 31377 (Replaces P# 36680)

        Item#43 OEM Exhaust Wall Gasket (link): 37956 NLA

        Item#43 After-Market Exhaust Wall Gasket (link): 37956PDX

        Item#48 Blower Housing Cover (link): 37605 NLA

        Item#49 Blower Housing (link): 37606 NLA

        Item#50 Motor Wall Assembly (link): 37801 NLA

        Item#51 Switch / Breaker Combination (link) 33782

        Item#51 Switch / Breaker Combination (link) 30337

        Item#52 Motor Speed Control Board Mount Bracket (link): 34543 NLA

        Item#53 Motor Speed Control Board (link): 34109

        Item#55 Door Latch (link): 33847

        *Not Shown* Wiring Kit (link): 30233 NLA

        Available Downloads

        Atwood Gas Furnace Series 8500-IV Model 2334 Two Stage Users Manual

        2 stage Furnace Diagnostic Manual

        2 Stage Exploded Parts Views

        Atwood Furnace 2 Stage Flash Fault Code

        2 stage Thermostat Wiring Guide

        2 Stage Thermostat Wiring Guide 2

        2 Stage Sequence Of Operation
