Atwood / HydroFlame Furnace Model 8935-AC-II Tune-Up Kit

Atwood 8935-II-AC Tune-Up / Repair Kit

Tune-Up Kit Includes (links in blue):

IN-STOCK

_________________________________________________

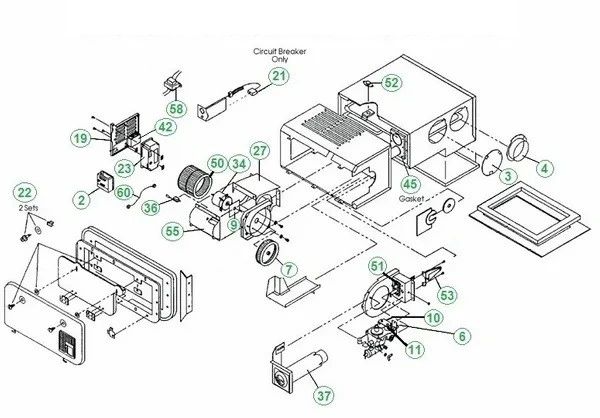

ADDITIONAL ATWOOD FURNACE 8935-AC-II AVAILABLE PARTS LINKS

Item#1 AC Voltage Klixon Time Delay Relay (link): 31017-24V

Item#2 Brown Thermostat (link): 38452 NLA

Item#2 White Thermostat (link): 38453

Item#2 Black Thermostat (link): 32300

Item#3 Duct Cover Plate, 4 Inch (link): 31361

Item#4 Duct Adapter, 4 Inch (link): 31474

*Not Shown* 4 Inch Flexible Heater Duct Hose (link): E4-25

Click The Down Arrow To View The Complete Parts List

*Not Shown* Duct Adapter, 2 Inch (link): 36688

*Not Shown* 2 Inch Flexible Heater Duct Hose (link): E2-25

Item#6 Orifice #51 (link): 31080 (Replaces P# Link: 32285)

Item#7 Combustion Air Wheel (link): 33128

Item#9 Motor Gasket (link): 37713 (Replaces P# 32841)

Item#10 Gas Valve, AC Voltage (link) 31159 NLA (Replaces P# 38606 NLA)

Item#19 DSI Module Board Bracket (link): 34541

Item#21 Circuit Breaker (link): 33780 (Replaced P# 31028)

Item#22 Screw-In Door Latch (link): 33847

Item#23 AC Voltage Ignition Module Board (link): 37515

Item#27 Inside Blower Housing 33984 NLA

Item#36 Sail Switch (link): 31377 (Replaced P# Link: 36680)

Item#38 Exhaust Draft Cap (link): 38141 NLA (Replaced P# 34032 NLA)

Item#42 OEM Capacitor (link): 34039

Item#42 After-Market Capacitor (link): 34039-OS

Item#45 OEM Exhaust Wall Gasket (link): 37956 NLA

Item#45 After-Market Exhaust Wall Gasket (link): 37959PDX

Item#50 Blower Wheel (link): 34099

Item#51 Electrode (link): 36997

*Not Shown* Electrode Gasket (link): 32172-OS (Replaced P# Link: 32172)

Item#52 Limit Switch (link): 37021

Item#52 Limit Switch (link): 37021MC

Item#53 Burner Assembly (link): 30209 (Replaced P# Link: 35491)

Item#53 Burner Assembly (link): 30209-OS (Replaced P# Link: 35491)

Item#54 Heating Element Assembly 34976 NLA

Item#55 Blower Assembly (link): 34014 NLA

Item#58 Transformer (link): 35121 NLA

Item#59 Motor Assembly, AC Voltage (link): 30132 (Replaces P# Link: 35122)

Item#60 Ignition Lead (link): 34571

Item#61 Blower Back Assembly 35321 NLA
