Atwood Water Heater Model GC10A-2E Tune-Up / Repair Kits
Tune-Up Kit #1 120VAC / Element Kit Contents:
Item#24 Element w/ Gasket (link): 92249
Item#25 120V Thermostat / ECO (link): 91873
IN-STOCK
Tune-Up Kit #2 Gas / Burner Contents:
Item#28 12VDC Thermostat / ECO Kit (link): 91447-OS
Item#33 Thermal Cutoff (link): 93866 NLA → (Use New P# 94398-OS)
Item#11 Main Burner Assembly (link): 96206
Item#5 Electrode (link) 93868-OS
IN-STOCK
Tune-Up Kit #3 120VAC / Element Kit #1 + Gas / Burner Kit #2 Contents:
Click The Down Arrow To View The Complete Exploded Parts Views
Item#28 12VDC Thermostat / ECO Kit (link): 91447-OS
Item#33 Thermal Cutoff (link): 93866 NLA → (Use New P# 94398-OS)
Item#11 Main Burner Assembly (link): 96206
Item#24 Element w/ Gasket (link): 92249
Item#25 120V Thermostat / ECO (link): 91873
Item#5 Electrode (link) 93868-OS
IN-STOCK
____________________________________________

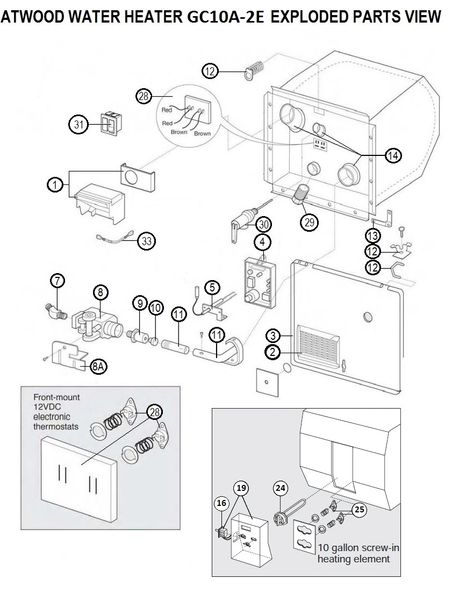

Atwood Water Heater GC10A-2E Exploded Parts View Links
Item#1 Flue Box Assembly (link): 90960
Item#2 Door Grill, New Style (link): 92640 NLA
Item#3 Access Door, Colonial White (link): 93993 NLA
Item#3 Access Door, Polar White (link): 91385 Item#3 Access Door, Black (link): 93963 Item#4 Ignition Board, OEM Version (link): 91367
Item#4 Ignition Board, After-Market Version (link): 91367MC
Item#4 Ignition Board, After-Market Version (link): 91367-OS
Item#5 Electrode (New Style) (link): 93868
Item#5 Electrode (New Style) (link): 93868-OS
Item#5 Electrode (New Style) (link): 93868MC
Item#7 45° Elbow Fitting 91044 (Non-Stocked Item)
Item#8 Gas Valve Only (link): 93844 NLA → (Use P# Link: 92089 In This Application)
Item#9 Orifice Holder (link): 91563 (New P# 92065) Item#10 Orifice (link): 93915 (Replaces P# 93914) Item#11 Main Burner (link): 96206 Item#12 Door Hardware Kit (link): 91858
*Not Shown* Door Metal Black Latch Only (link): E371
*Not Shown* Door Metal Silver Latch Only (link): 09213
Item#13 Corner Brackets 91928 (Non-Stocked Item)
Item#14 Ring & Gasket Kit (link): 96010
Item#16 On / Off Switch (link): 91089
Item#19 On / Off Switch & Junction Box (link): 91182 Item#24 120V Element w/ Gasket (link): 92249 Item#25 120V Thermostat / ECO Kit (link): 91873 Item#28 12V Thermostat / ECO Kit (link): 91447 Item#29 Drain Plug Kit (link): 91857 Item#30 Pressure Relief Valve (link): 91604 Item#31 12V White Switch (link): 91859 Item#31 12V Black Switch (link): 91959 *Not Shown* 130° Thermostat (link): 91470 *Not Shown* Adjustable Thermostat (link): 93105 *Not Shown* Gas Line Grommet (link): 92610 *Not Shown* Wiring Harness (link): 93312 (New P# 92076) *Not Shown* Ignition Board w/ Electrode Kit (link): 91363
Available Downloads:
