• Barker Slide Out Worm Drive Assembly w/ Power Head 32082 Rebuild Kit

    $241.86 $172.53

    Barker Slide Out Worm Drive Assembly With Power Head 32082 Rebuild Kit

    IN-STOCK, Standard 1-3 Day USPS Shipping $19.85

    Power Head Portion Of Kit (Picture 1):

    1 Each Gasket (link): 29306

    1 Each Drive Gear (link): 10051

    1 Each Torque Limiter (link): 26695

    1 Each Flange Bearing (link): 645-0068

    1 Each Bushing (12mm ID) (link): 645-0024

    2 Each Bushing (3/16 ID) (link): 80501

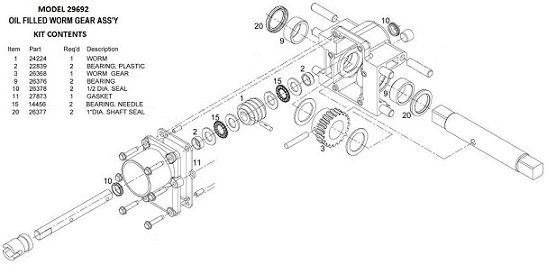

    Worm Drive Portion Of Kit (Picture 2):

    1 Each Worm (link): 24224

    2 Each Plastic Bearing (link): 22839

    1 Each Worm Gear (link): 26368

    2 Each Bearing (link): 26376

    2 Each Seal, 1/2" Diameter (link): 26378

    1 Each Gasket (link): 27873

    2 Each Needle Bearings (link): 14456

    2 Each Seal, 1" Diameter (link): 26377

    *To order the full assembly 32082, please click onto this link: 32082

    *To order just the fully assembled power head, please click onto this link: 26690

    *To order just the fully assembled worm drive assembly, please click onto this link: 29692
