Coleman Air Conditioner Model 8333C871 Capacitor Kit
$118.39
$93.15
Coleman Air Conditioner Model 8333C871 Capacitor Kit
IN-STOCK
Kit Contents (links in blue if available):
Item#12 Run Capacitor 1499-5731Item#13 Fan Capacitor 1499-5461
Item#14 & 15 Start & Device Capacitor Kit 8333A9021
____________________________________________________

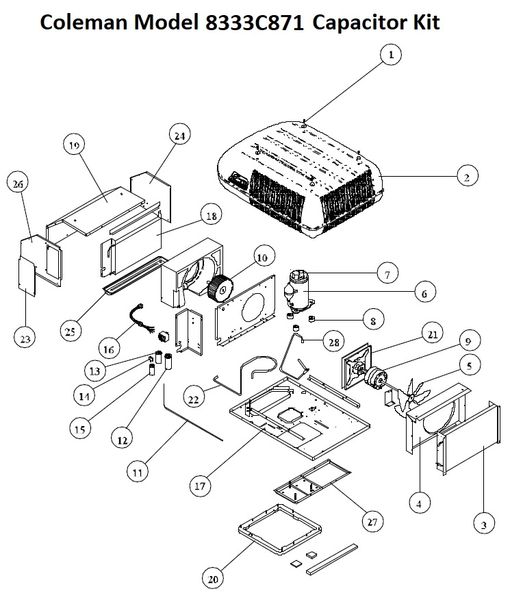

Coleman Air Conditioner Model 8333C871 Parts List
Item#1 Screw, Nut & Washer Kit 6792-5111
Item#4 Fan Shroud 6792-1071
Item#5 Fan Blade 6733-3221
Item#8 Compressor Mounting Kit 6759-3081
Item#9 Motor (115V / 60HZ) 1468-3069
Item#10 Impeller 1472-1091
Click The Down Arrow To View Complete Parts List
Item#12 Run Capacitor 1499-5731Item#13 Fan Capacitor 1499-5461
Item#14 *Included With Item#15*
Item#15 Start & Device Capacitor Kit 8333A9021
Item#20 Gasket Package 8332-3301
Item#21 Motor Mount & Shaft Seal Kit 8333-5151
*Not Shown* Shroud Bracket 8333B1551 (Old P# 8333A1551)
