• Coleman Air Conditioner Model 8632D8794 Capacitor Kit

    $120.77 $92.59

    Coleman Air Conditioner Model 8632D8794 Capacitor Kit

    IN-STOCK

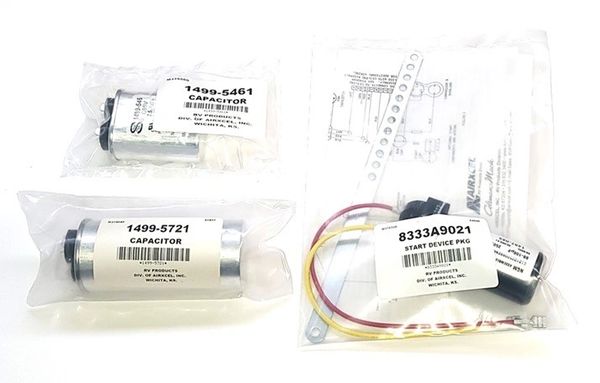

    Kit Contents (Links In Blue):

    Item#12 Run Capacitor (link): 1499-5721
    Item#13 Fan Capacitor (link): 1499-5461
    Item#14 Start & Device Capacitor Kit (link): 8333A9021

    _____________________________________________________

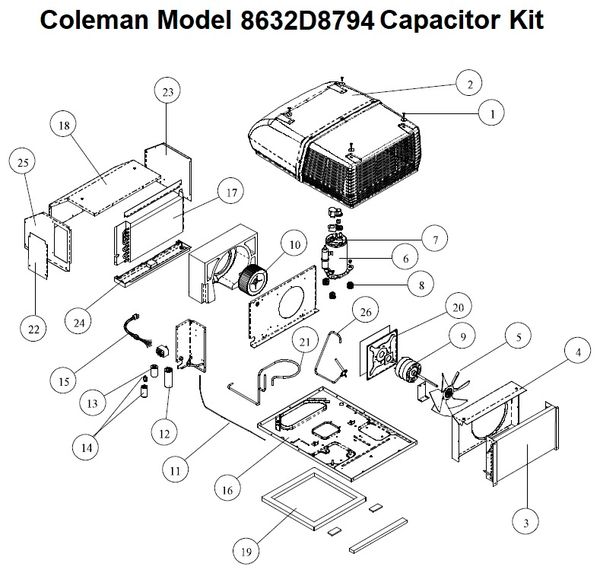

    Coleman Air Conditioner Model 8632D8794 Parts List

    Item#1 Screw, Nut & Washer Kit (link): 6792-5111
    Item#2 Arctic White Shroud 8335-5261
    Item#2 Black Shroud 8335-5291
    Item#3 Condenser Coil 1452A1321
    Item#4 Fan Shroud 6792-1071
    Item#5 Fan Blade (link):
    6733-3221
    Item#6 Compressor 1450-2249
    Item#7 Overload 1450-0121
    Item#8 Compressor Mounts (link):
     6759-3081
    Item#9 Motor 115V 60HZ (link): 1468-3109
    Item#10 Impeller (link): 1472-1091
    Item#11 Cap Tube 7335B1331
    Item#12 Run Capacitor (link):
     1499-5721
    Item#13 Fan Capacitor (link): 1499-5461

    Item#14 Start & Device Capacitor Kit (link): 8333A9021
    Item#15 Conduit & Wiring Assy. 8333B3751
    Item#16 Basepan 8333B1011
    Item#17 Evaporator Coil 1452-1521
    Item#18 Evaporator Cover Assy. 8333A5061
    Item#19 Gasket Package (link):
     8332-3301
    Item#20 Motor Mount & Shaft Seal Kit (link): 8333-5151
    Item#21 Suction Line 8632A133
    Item#22 Wirebox Door 8333-109
    Item#23 Right Side Panel 8333-505
    Item#24 Drain Pan Assy. 8335-3501
    Item#25 Left Side Panel 8333-507
    Item#26 Discharge Line 8632-134
    *Not Shown* Shroud Bracket (link):
     8333B1551
