• Coleman Air Conditioner Model 8633-8766 Capacitor Kit

    $128.47 $99.75

    Coleman Air Conditioner Model 86338766 Capacitor Kit

    IN-STOCK

    Kit Contents (links in blue if available):

    Item#12 Run Capacitor (link): 1499-5671
    Item#13 Fan Capacitor (link): 1499-5461
    Item#14 & 15 Start & Device Capacitor Kit (link): 8333A9021

    ______________________________________________________

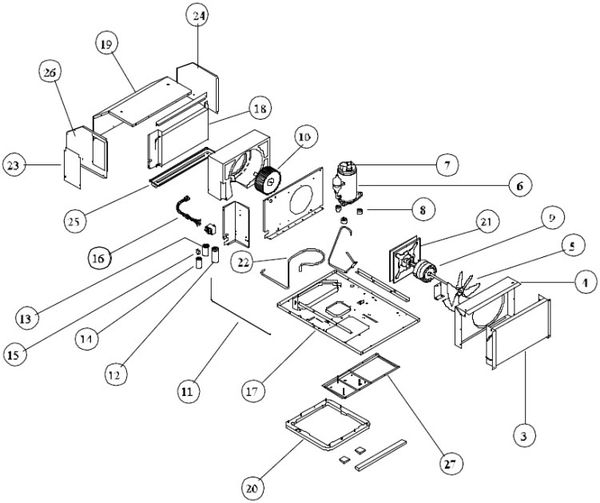

    Coleman Air Conditioner Model 8633-8766 Parts List

    *Not Shown*  Screw, Nut & Washer Kit For Shroud (link): 6792-5111
    Item#4 Fan Shroud (link): 6792-1071
    Item#5 Fan Blade (link): 6733-3221
    Item#7 Overload 1450-0071
    Item#8 Compressor Mounts (link): 6759-3081
    Item#9 Blower Motor (link): 1468-3109 NLA → (link): 1468A3109 NLA → Use P# Link: 1468-3489
    Item#10 Impeller (link): 1472-1091
    Item#12 Run Capacitor (link): 1499-5671
    Item#13 Fan Capacitor (link): 1499-5461

    Item#14 & 15 Start & Device Capacitor Kit (link): 8333A9021

    Click The Down Arrow To View Complete Parts List
    Item#20 Gasket Package (link): 8332-3301

    Item#21 Motor Mount & Shaft Seal Kit (link): 8333-5151

    *Not Shown* Shroud Bracket (link): 8333B1551
