Coleman Air Conditioner Model 9224-8795 Capacitor Kit
Coleman Air Conditioner Model 92248795 Capacitor Kit
IN-STOCK
Kit Contents (links in blue if available):
Item#6 Run Capacitor (link): 1499-5731Item#5 Fan Capacitor (link): 1499-5461
Item#4 Start & Device Cap. Kit (link): 9333-9021 NLA →(Use P# Link: 8333A9021)
____________________________________________________________

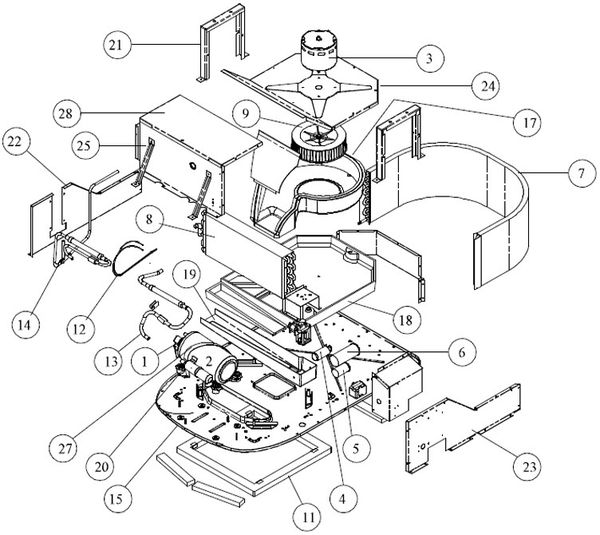

Coleman Air Conditioner Model 9224-8795 Parts List
Not Shown Screw, Nut & Washer Kit (link): 6792-5111

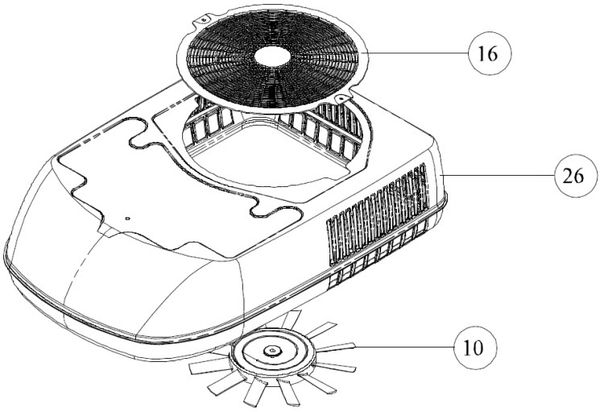

Item#10 Fan Blade (link): 1472-5021
Item#16 Grille 9233A3151 No Longer Available Individually
Item#1 Overload 6759-3791 NLA
Item#3 Blower Motor (link): 1468B3239
Item#9 Blower Wheel 1472-1181 NLA → Use P# Link: 1472A1181
Click The Down Arrow To View Complete Parts List
Item#6 Run Capacitor (link): 1499-5731
Item#5 Fan Capacitor (link): 1499-5461
Item#4 Start & Device Cap. Kit (link): 9333-9021 NLA →(Use Part# Link: 8333A9021)Item#11 Gasket Package (link): 8332-3301
Item#19 Compressor Mount Kit 1450-9811 NLA
Not Shown Condensate Pump 9233-5091 NLA →(Use Part# Link: 49233-5091)
