• Coleman Air Conditioner Model 9226-876 Capacitor Kit

    $120.77 $92.59

    Coleman Air Conditioner Model 9226876 Capacitor Kit

    IN-STOCK

    Kit Contents (links in blue if available):

    Item#6 Run Capacitor (link): 1499-5721
    Item#5 Fan Capacitor (link): 1499-5461
    Item#4 Start & Device Cap. Kit (link): 9333-9021 NLA → Use P# Link: 8333A9021

    ____________________________________________________________

    Coleman Air Conditioner Model 9226-876 Parts List

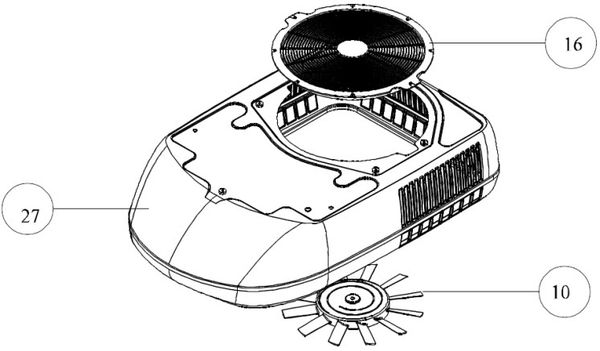

         Page 2 Shroud Exploded Parts View Items

    Not Shown Screw, Nut & Washer Kit (link): 6792-5111

    Item#10 Fan Blade (link): 1472-5021

    Item#16 Fan Grille 9233A3151 NLA Individually

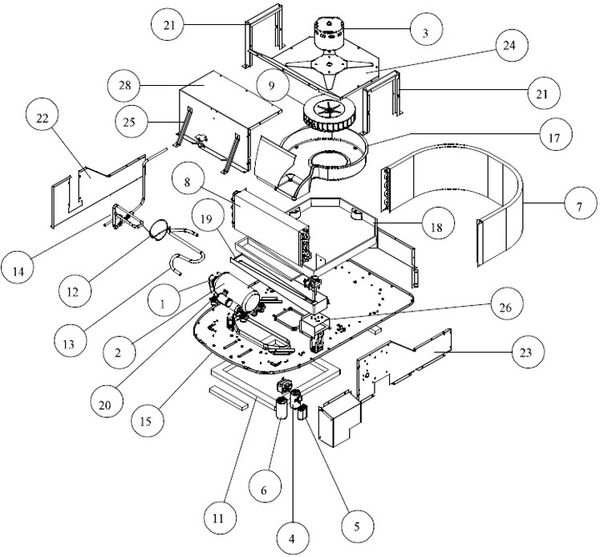

        Page 3 Exploded Parts View Items

    Item#1 Overload 1450-0121 NLA

    Item#3 Blower Motor (link): 1468C3119 NLA

    Item#9 Blower Wheel 1472-1181 NLA →(Use P# Link: 1472A1181)

    Click The Down Arrow To View Complete Parts List

    Item#6 Run Capacitor (link): 1499-5721

    Item#5 Fan Capacitor (link): 1499-5461

    Item#4 Start & Device Capacitor Kit (link): 9333-9021 NLA → (Use P# Link: 8333A9021)

    Item#11 Gasket Package (link): 8332-3301

    Item#20 Compressor Mount Kit 1450-9811 NLA

    Item#26 Condensate Pump 9233-5091 NLA(Use Part# Link: 49233-5091)
