Coleman Air Conditioner Model 9231-776 Capacitor Kit
Coleman Air Conditioner Model 9231776 Capacitor Kit
IN-STOCK

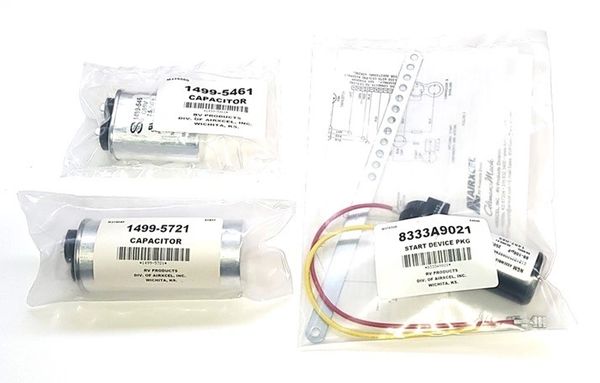

Kit Contents (links in blue if available):
Item#6 Run Capacitor (link): 1499-5721Item#5 Fan Capacitor (link): 1499-5461
Item#4 Start & Device Cap. Kit (link): 9333-9021 NLA → Use P# Link: 8333A9021
__________________________________________________________
Coleman Air Conditioner Model 9231-776 Parts List

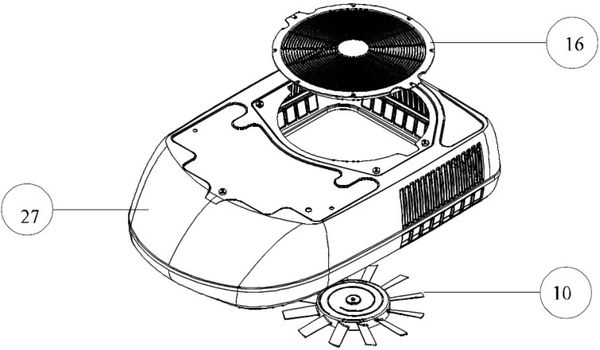

Page 2 Shroud Exploded Parts View Items
Not Shown Screw, Nut & Washer Kit (link): 6792-5111
Item#10 Fan Blade (link): 1472-5021
Item#16 Fan Grille 9233B3151 NLA Individually

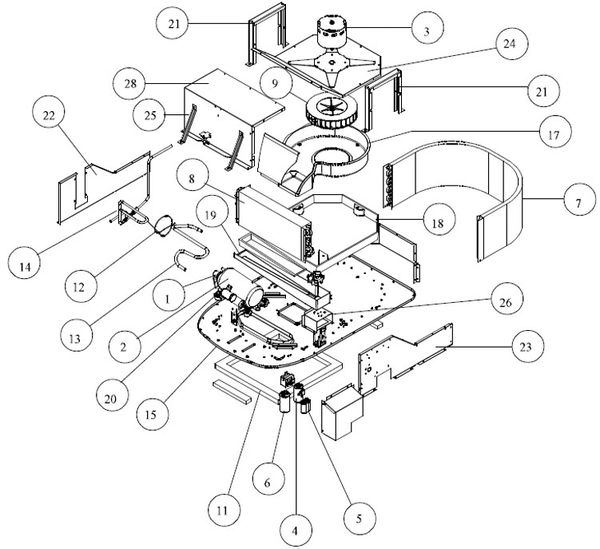

Page 3 Exploded Parts View Items
Item#1 Overload 1450-0201 NLA
Item#3 Blower Motor (link): 1468C3119 NLA
Item#9 Blower Wheel 1472-1181 NLA →(Use P# Link: 1472A1181)
Click The Down Arrow To View Complete Parts List
Item#6 Run Capacitor (link): 1499-5721
Item#5 Fan Capacitor (link): 1499-5461
Item#4 Start & Device Capacitor Kit (link): 9333-9021 NLA → (Use P# Link: 8333A9021)Item#11 Gasket Package (link): 8332-3301
Item#20 Compressor Mount Kit 1450-9811 NLA
Item#26 Condensate Pump 9233-5091 NLA →(Use Part# Link: 49233-5091)
