Coleman Air Conditioner Model 9231A876 Capacitor Kit

Coleman Air Conditioner Model 9231A876 Capacitor Kit

IN-STOCK

Kit Contents (links in blue if available):

Item#5 Fan Motor Run Capacitor 1499-5421 NLA → (Use P# Link 1499-5421AM)

___________________________________________________

Coleman Air Conditioner Model 9231A876 Parts List

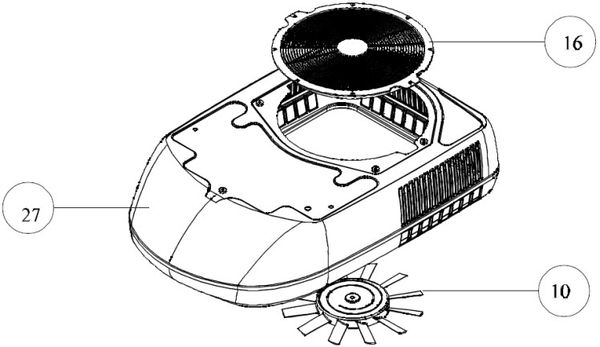

     Page 2 Shroud Exploded Parts View Items

Not Shown Screw, Nut & Washer Kit 6792-5111

Item#10 Fan Blade 1472-5021

Item#16 Fan Grille 9233A3151 NLA Individually

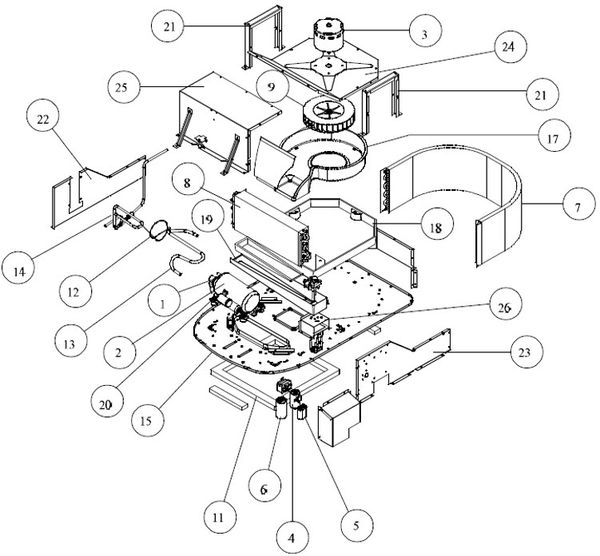

    Page 3 Exploded Parts View Items

Item#1 Overload 1450-0121 NLA

Item#3 Blower Motor 1468-3119 NLA → 1468A3119 NLA → (link): 1468C3119 NLA

Click The Down Arrow To View Complete Parts List

Item#9 Blower Wheel 1472-1111 NLA → Use P# Link 1472A1181

Item#6 Run Capacitor 1499-5721

Item#5 Fan Motor Run Capacitor 1499-5421 NLA → (Use P# Link 1499-5421AM)

Item#11 Gasket Package 8332-3301

Item#20 Compressor Mount Kit 1450-9811 NLA

Item#26 Condensate Pump 9233-5091 NLA →(Use Part# 49233-5091)
